9.12.8 Encoder with BiSS
9.12.8.1 BiSS (Mode B) analog

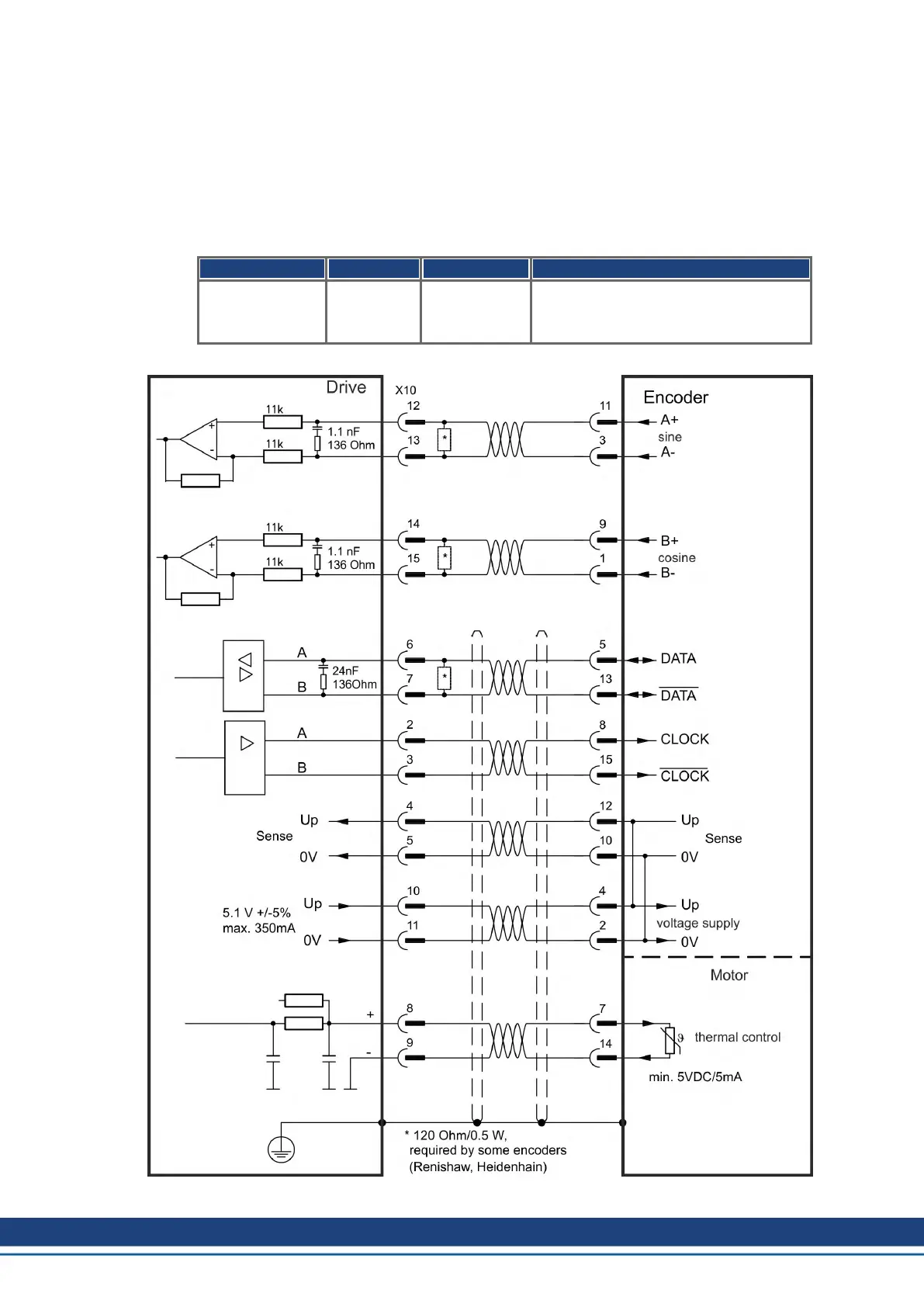

The diagram below shows the wiring of a single-turn or multi-turn encoder with BiSS Mode B
interface as a feedback system. The thermal control in the motor is connected via the
encoder cable and evaluated in the drive.
If cable lengths of more than 50 m are planned, please consult customer support.
Type FBTYPE Up Frequency Limit
BiSS (Mode B)
Analog
32 5.1 V +/-5% 1 MHz,
250 kHz for encoders that require ter-
mination resistors
The pin assignment shown on the encoder end relates to Kollmorgen motors.
128 Kollmorgen | kdn.kollmorgen.com | October 2017

Kollmorgen AKD series Specifications

General

Continuous Current	Up to 180 A
Control Modes	Position, Velocity, Torque
Communication Interfaces	EtherCAT, CANopen, Modbus TCP/IP
Feedback Options	Resolver, Encoder
Safety Features	Safe Torque Off (STO), Safe Stop 1 (SS1)
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Overtemperature
Switching Frequency	8 kHz, 16 kHz
Ambient Temperature	0°C to 40°C
Operating Temperature	0 - 40 °C (derating may apply)
Humidity	5% to 95% non-condensing
