7.14.1 Switch-on behavior in standard operation

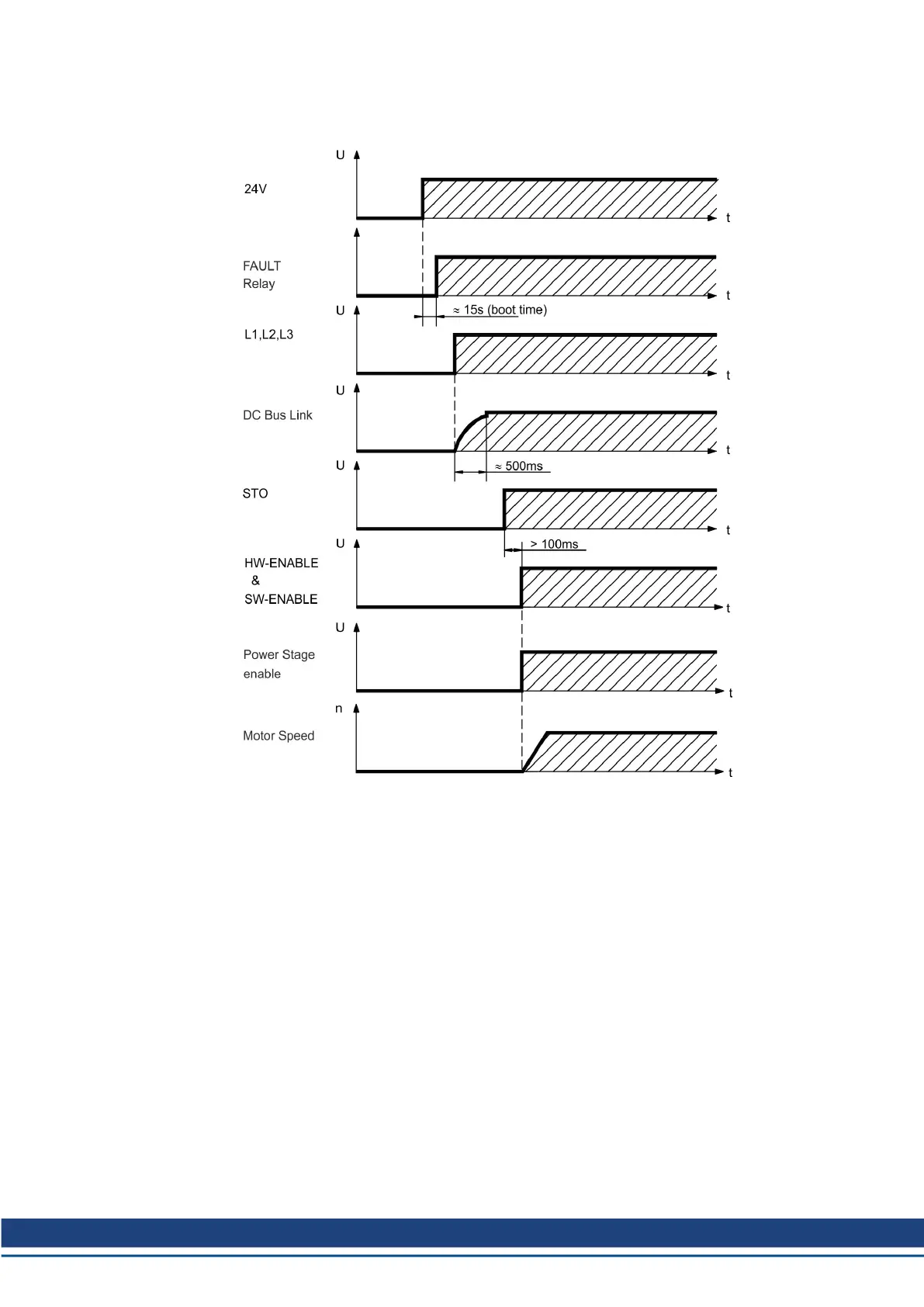

The diagram below illustrates the correct functional sequence for switching the drive on.
Fault F602 occurs when STO (➜ # 55) does not have current when HW enable becomes act-
ive.
AKD Installation | 7 Technical description and data
Kollmorgen | kdn.kollmorgen.com | October 2017 47
