AKD Installation | 10 Setup
10.2.7.3 Set IP address
Set the drive IP address as described in (➜ # 172).
10.2.7.4 Confirm connections
You can turn on logic power to the drive through the X1 connector (bus voltage is not needed
for communications).
After power is supplied, the drive displays a sequence of LED flashes):
1. –
2. []
3. ] [
4. I-P
5. Drive IP address, flashed sequentially (for example, 192.168.0.25).
6. Drive status (opmode “o0”,”o1”, or ”o2”) or fault code if the drive is in a fault condition.

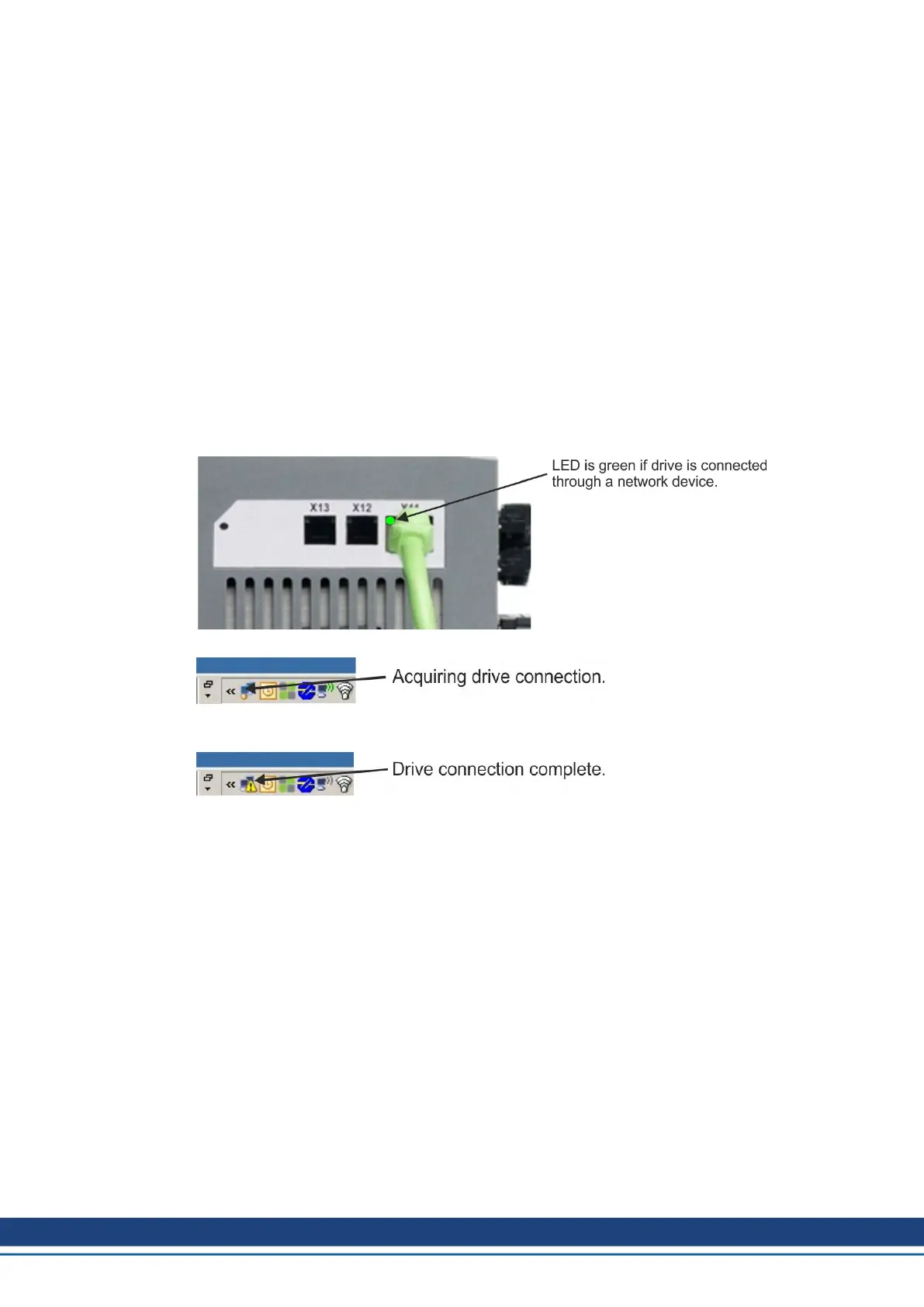

Confirm that the link LEDs on the drive (green LED on the RJ45 connector) and on your PC
are both illuminated. If both LEDs are illuminated, then you have a working electrical con-
nection.
While the PC is connecting, your statusbar will show the following acquiring icon:
Wait for this icon to change to the limited functionality icon (this process can take up to one
minute).
Although Windows displays this limited functionality icon for the drive connection, the PC
can communicate fully with the drive. Using WorkBench, you can now configure the drive
through this connection.
190 Kollmorgen | kdn.kollmorgen.com | October 2017

Kollmorgen AKD series Specifications

General

Continuous Current	Up to 180 A
Control Modes	Position, Velocity, Torque
Communication Interfaces	EtherCAT, CANopen, Modbus TCP/IP
Feedback Options	Resolver, Encoder
Safety Features	Safe Torque Off (STO), Safe Stop 1 (SS1)
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Overtemperature
Switching Frequency	8 kHz, 16 kHz
Ambient Temperature	0°C to 40°C
Operating Temperature	0 - 40 °C (derating may apply)
Humidity	5% to 95% non-condensing
