8.4 Mechanical Drawings Extended Width

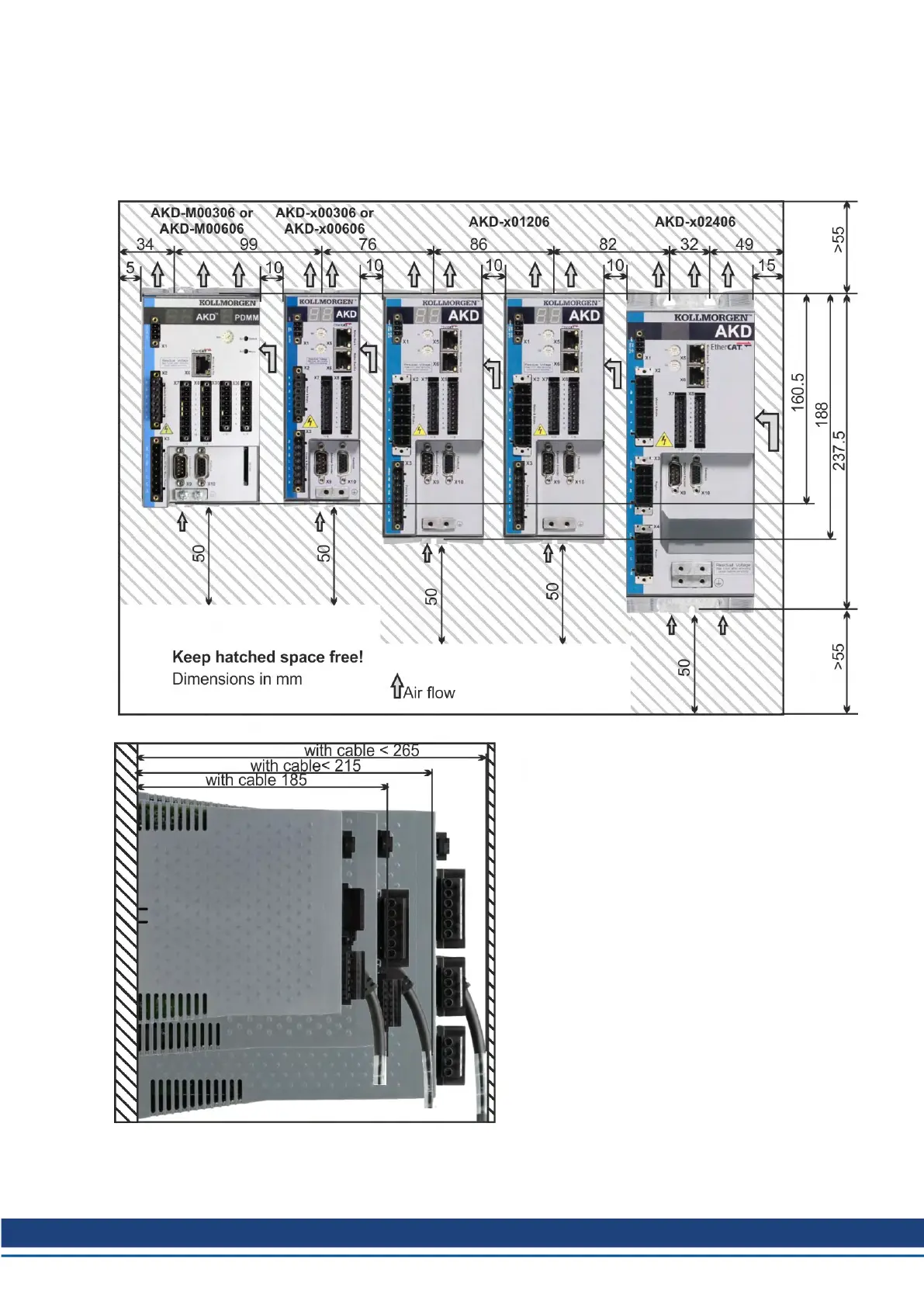

8.4.1 Control cabinet layout, example with AKD-M00306
Material: M4 hexagon socket screws to ISO 4762, 3 mm T-handle Allen key
AKD Installation | 8 Mechanical Installation
Kollmorgen | kdn.kollmorgen.com | October 2017 73
