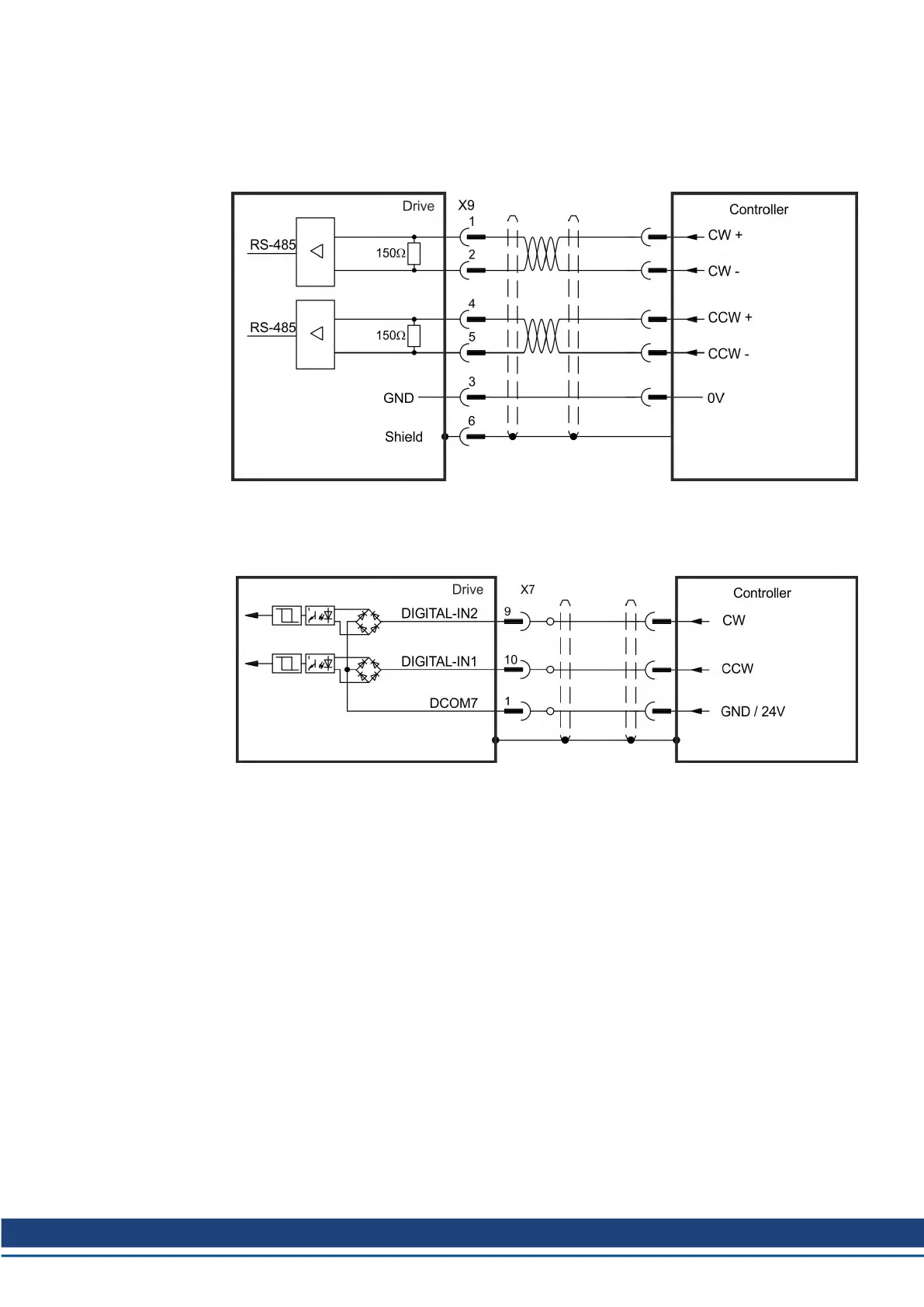

9.13.4 CW / CCW signal connection
9.13.4.1 CW / CCW input 5 V (X9)
The drive can be connected to a third-party controller which delivers 5 V CW/CCW signals
9.13.4.2 CW / CCW input 24 V (X7)
The drive can be connected to a third-party controller which delivers 24 V CW/CCW signals.
