Kollmorgen AKD series

AKD Installation | 7 Technical description and data
AKD-x048

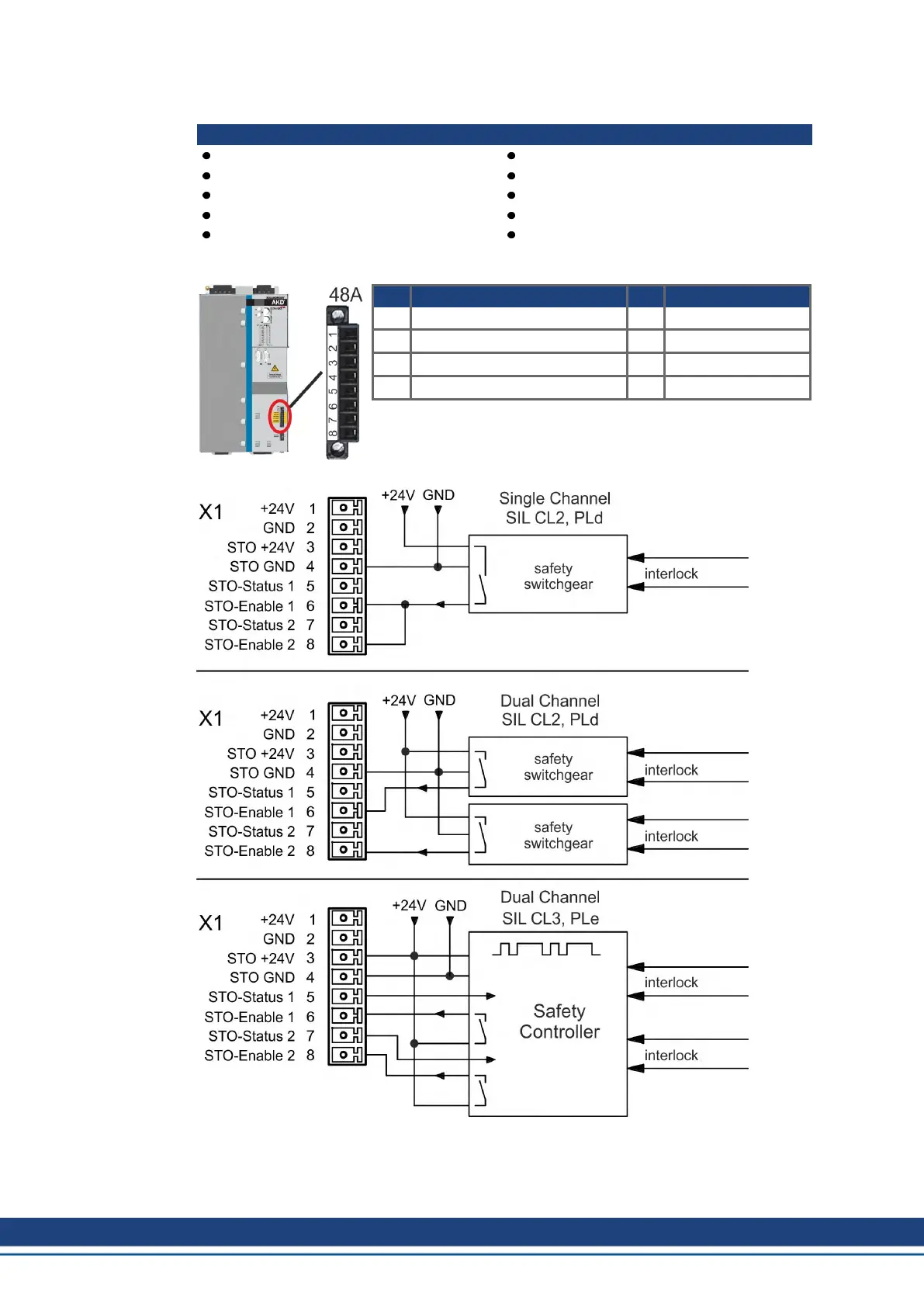

Inputs STO-Enable 1/2 (X1) Outputs STO-Status 1/2 (X1)
Reference ground is STO GND
High Level 24 V ±10%, 16 to 25 mA
Low level 0...5 VDC
Reaction time < 10 ms
Galvanic isolation for 250 VDC
Reference ground is STO GND
As per EN61131-2 type 1
Max. 30 VDC (PELV), max. 100mA
PELV acc. to EN 60204-1
Galvanic isolation for 250 VDC
Pin Description Pin Description
1 +24 VDC Auxiliary voltage 5 STO-Status 1
2 24V Supply GND 6 STO-Enable 1
3 STO +24 VDC supply voltage 7 STO-Status 2
4 STO GND 8 STO-Enable 2
58 Kollmorgen | kdn.kollmorgen.com | October 2017
