AKD Installation | 9 Electrical Installation

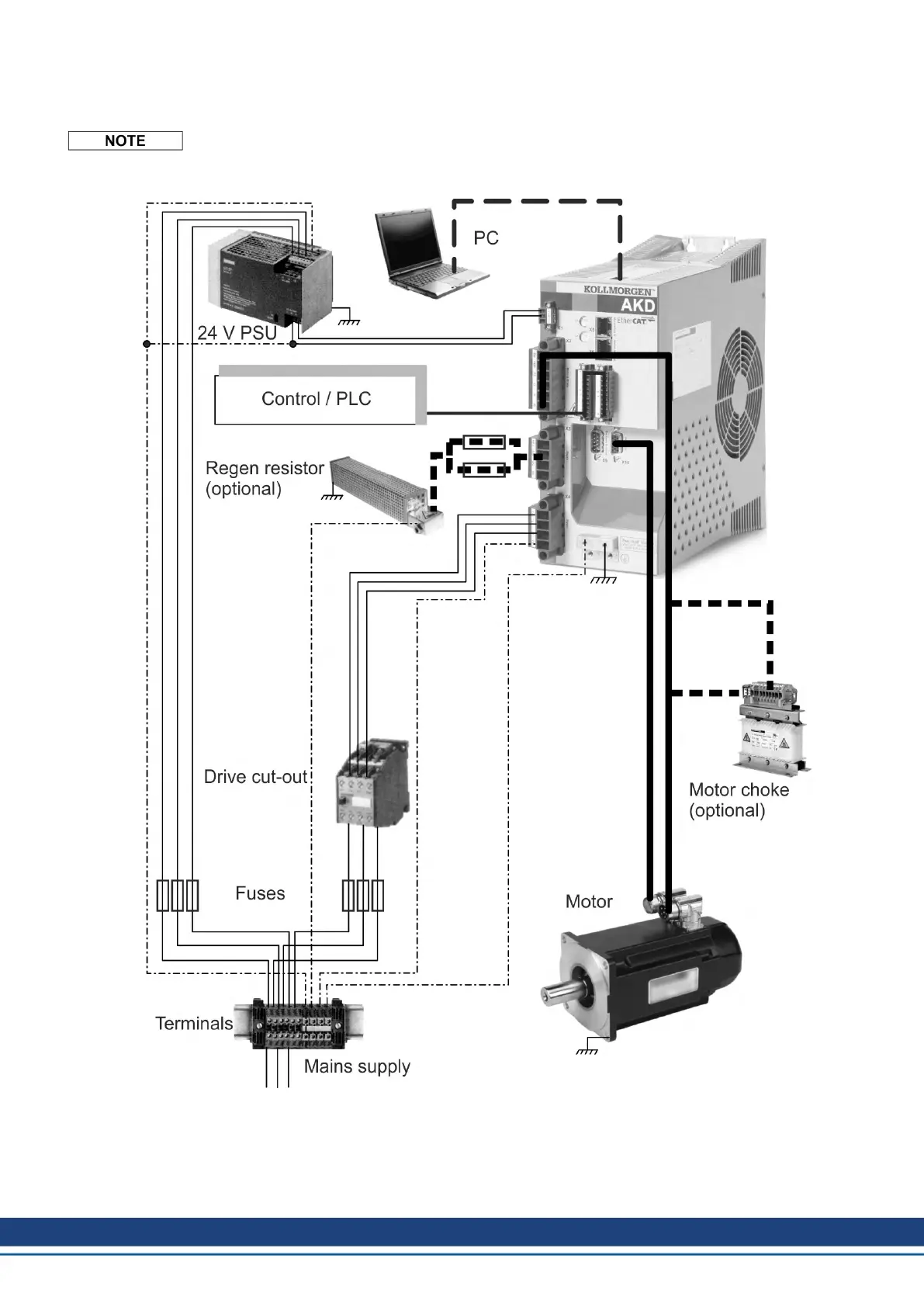

With AKD-xzzz07
Cables drawn bold are shielded. Electrical ground is drawn with dash-dotted lines. Optional
devices are connected with dashed lines to the drive. The required accessories are
described in the accessories manual.
82 Kollmorgen | kdn.kollmorgen.com | October 2017
