350
d: LFO Frequency [Hz], d: Envelope Amount [Hz],
e: Depth, e: Envelope Amount
These parameters set the modulation via an envelope (input sig-
nal level).
The “LFO speed” is obtained by adding the “LFO Frequency”
value to the “Envelope Amount” value multiplied by the input
signal. The LFO modulation depth is obtained by adding the
Depth value to the “Envelope Amount” value multiplied by the
input signal level.
• The following example indicates that the “Depth” is 0
with an LFO Frequency of 1.0Hz and the maximum
input, and that the “Depth” is 100 with a Frequency of
8.0Hz with zero input.
“LFO Frequency [Hz]”=8.0, “Envelope Amount [Hz]”=–7.0
“Depth”=100, “Envelope Amount”=–100

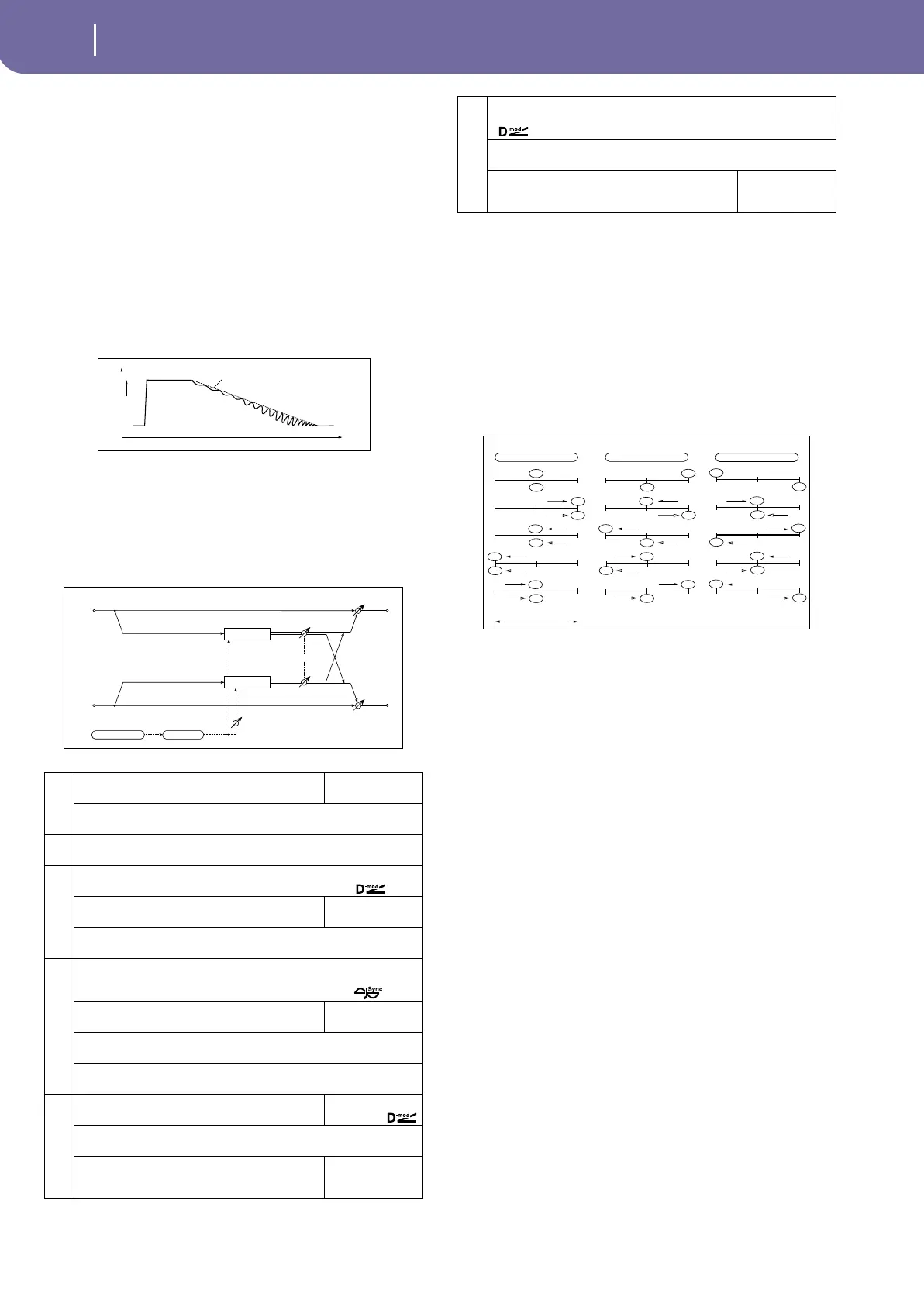

034: Auto Pan
This Auto Pan effect pans sound between left and right. It is ste-
reo, and shifting the left and right LFO phases from each other
will simulate the sound of the left and right channels crossing
over each other by turns, or chasing each other.
a: LFO Shape
You can change the panning curve by modifying the LFO wave-
form.
b: LFO Phase
This parameter determines the difference in the left and right
LFO phases. When you change the value gradually from 0, the
sound from the left and right channels will chase each other
around. If you set the parameter to +180 or –180, the sound from
each channel will cross over each other.
You need to input different sounds to each channel in order for
this parameter to be effective.
a
LFO Waveform
Selects LFO Waveform
Triangle, Sine
LFO Shape –100...+100
Determines how much the LFO waveform is changed
☞
b
LFO Phase [degree] –180...+180
Sets the LFO phase difference between the left and right
☞
c
LFO Frequency [Hz] 0.02...20.00Hz
Sets the LFO speed
☞ Fx:009,
Src
Selects the modulation source of LFO speed
Off...Tempo
Amt –20.00...+20.00Hz
Sets the modulation amount of LFO speed
d
BPM/MIDI Sync Off, On
Switches between using the frequency of the LFO speed and using the
tempo and notes
☞ Fx:009,
BPM
Selects MIDI Clock and assigns tempo
MIDI, 40...240
☞ Fx:009
Base Note
Selects the type of notes that specify the LFO speed ☞ Fx:009
Times x1...x16
Sets the number of notes that specify the LFO speed
☞ Fx:009
e
Depth
Sets the depth of LFO modulation
0...100
Src Off...Tempo
Selects the modulation source of the depth of modulation
Amt
Sets the modulation amount of the depth of modula-
tion
–100...+100
Level
Louder
Time
Shimmer
LFO Frequency[Hz]=8.0
Envelope Amount[Hz]= –7.0Hz
Depth=100
Envelope Amount= –100
Dry Envelope
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
LFO Phase
LFO Shape
Pan
Pan
LFO: Tri / Sin
Depth
f
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 330
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 330
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 330
–100...+100
L-In
Left
Center
Right
Output Stereo Image
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
LFO Phase = 0 degrees
LFO Phase = 90 degrees
LFO Phase = 180 degrees
Stereo Auto Pan - LFO Phase
