LIP-8008D User Guide
iPECS LIP-8008D Connections
1.5.1

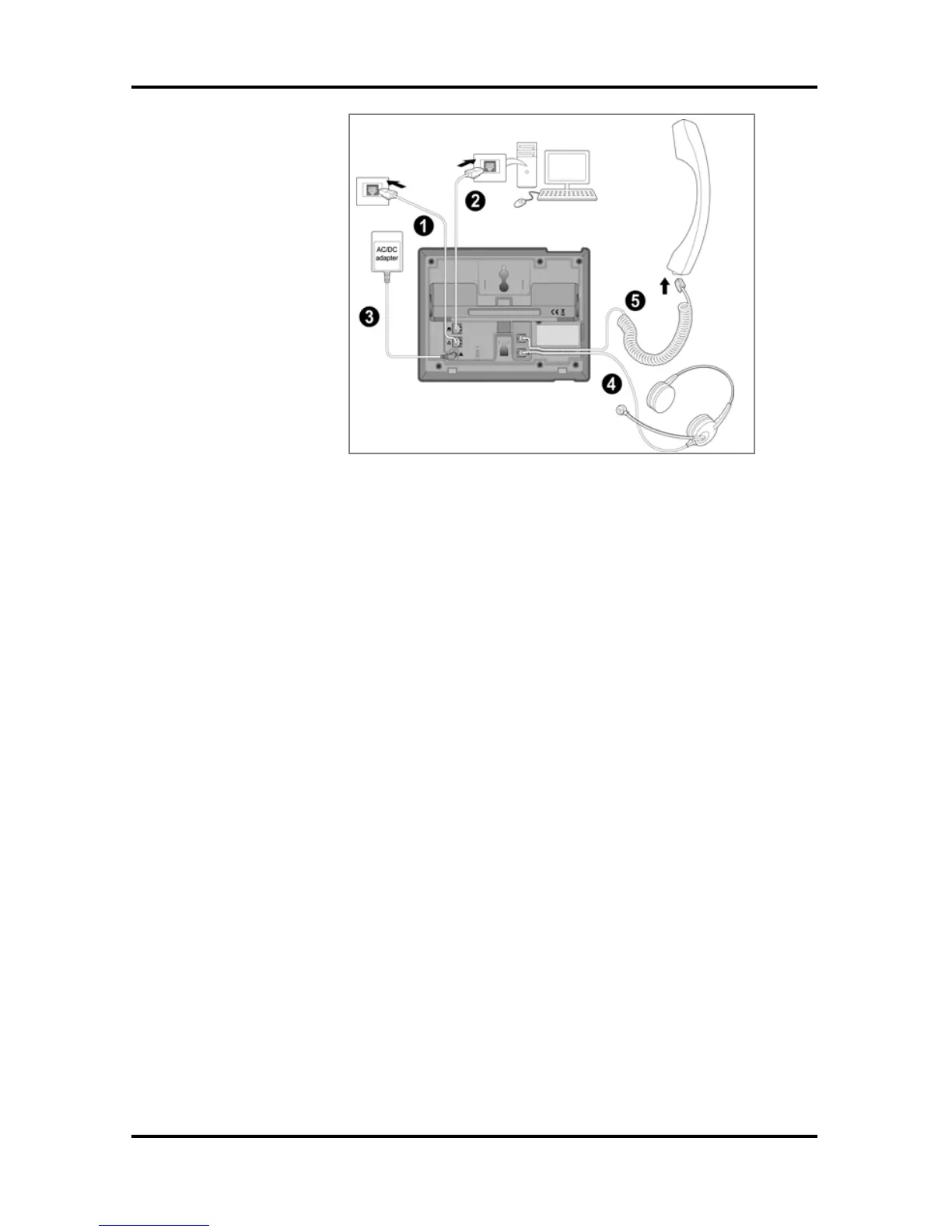

Wiring Connectors
The LIP-8008D has a two Ethernet ports one is
connected to the LAN using a RJ-45 plug terminated
category 5 cable supplied with the Phone, the other can
be connected to a desktop PC. Using the cable, one
RJ-45 plug is inserted into the "LAN" jack in the bottom
of the Phone. The other RJ-45 plug is inserted into the
RJ-45 jack previously wired to an Ethernet switch port
accessible by the iPECS system. To power the LIP
Phone over the LAN, the switch port must support POE
(Power over Ethernet) standard 802.3af.
1.5.2 Power
All LIP-80
00 series phones can be powered by the
AC/DC Adapter-K- (48 VDC @0.3A) or over the LAN
cable using the POE8 or other 802.3af compliant switch.
If using the AC/DC Adapter, after connecting the Phone
to the LAN, the Adapter’s DC voltage plug is inserted
into the power-input jack in the underside of the Phone.
One end of the AC power cord is inserted into the
mating receptacle of the AC Adapter, and the other end
is inserted into the AC power outlet.
