Basic Functions
120
Input Current (I1) Setting Details
Code
Description
IN-01 Freq at
100%
Configures the frequency reference for operation at the maximum current
(when IN-26 is set to 100%).
• If IN-01 is set to 40.00, and default settings are used for IN-23–26, an
input current of 20 mA (max) to I1 will produce a frequency reference of
40.00 Hz.
• If IN-26 is set to 50.00, and default settings are used for IN-01 (60 Hz)
and IN-23–26, an input current of 20 mA (max) to I1 will produce a
frequency reference of 30.00 Hz (50% of 60 Hz).
IN-20 I1 Monitor
Used to monitor the input current at I1.
IN-22 I1 Filter
Configures the time for the operation frequency to reach 63% of the target
frequency based on the input current at I1.
IN-23 I1 Curr x1–
IN-26 I1 Perc y2
Configures the gradient level and offset value of the output frequency.

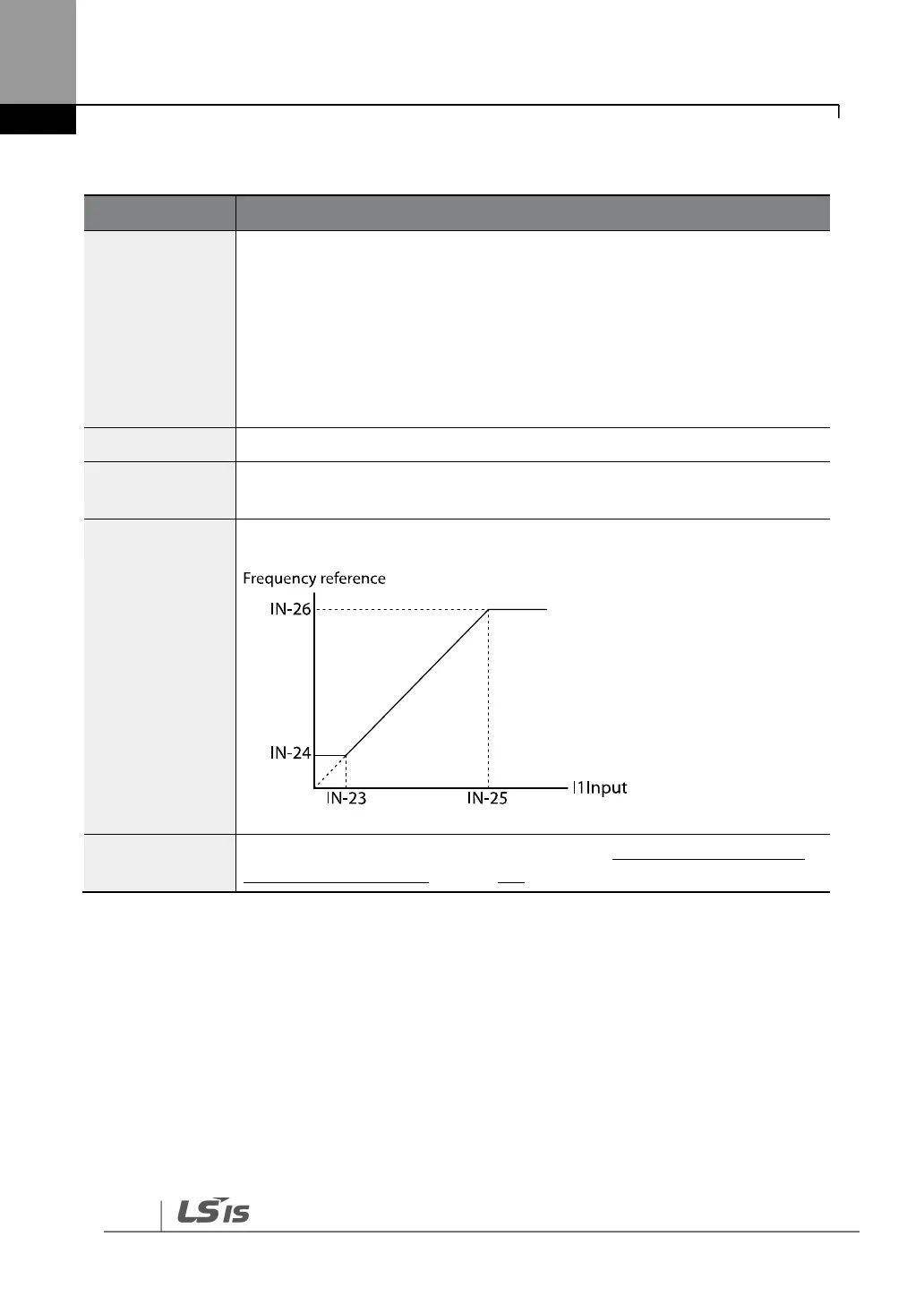

[Gradient and offset configuration based on output frequency]
IN-32 I1
Quantizing
Same as V1 Quantizing. For more details, refer to 6.1.3.1 Setting a Frequency
Reference for 0–10 V Input on page 112.
