REPAIR INSTRUCTIONS, PART 1
Page 221
Some non-current MACK engine models had
used an offset key which was positioned to the
right or left depending on the engine model. This
is not an issue with ASET™ engines. All ASET™
engines use a straight key in the
camshaft-to-gear keyway.
3. Install a new camshaft captured thrust
washer on the camshaft.
228

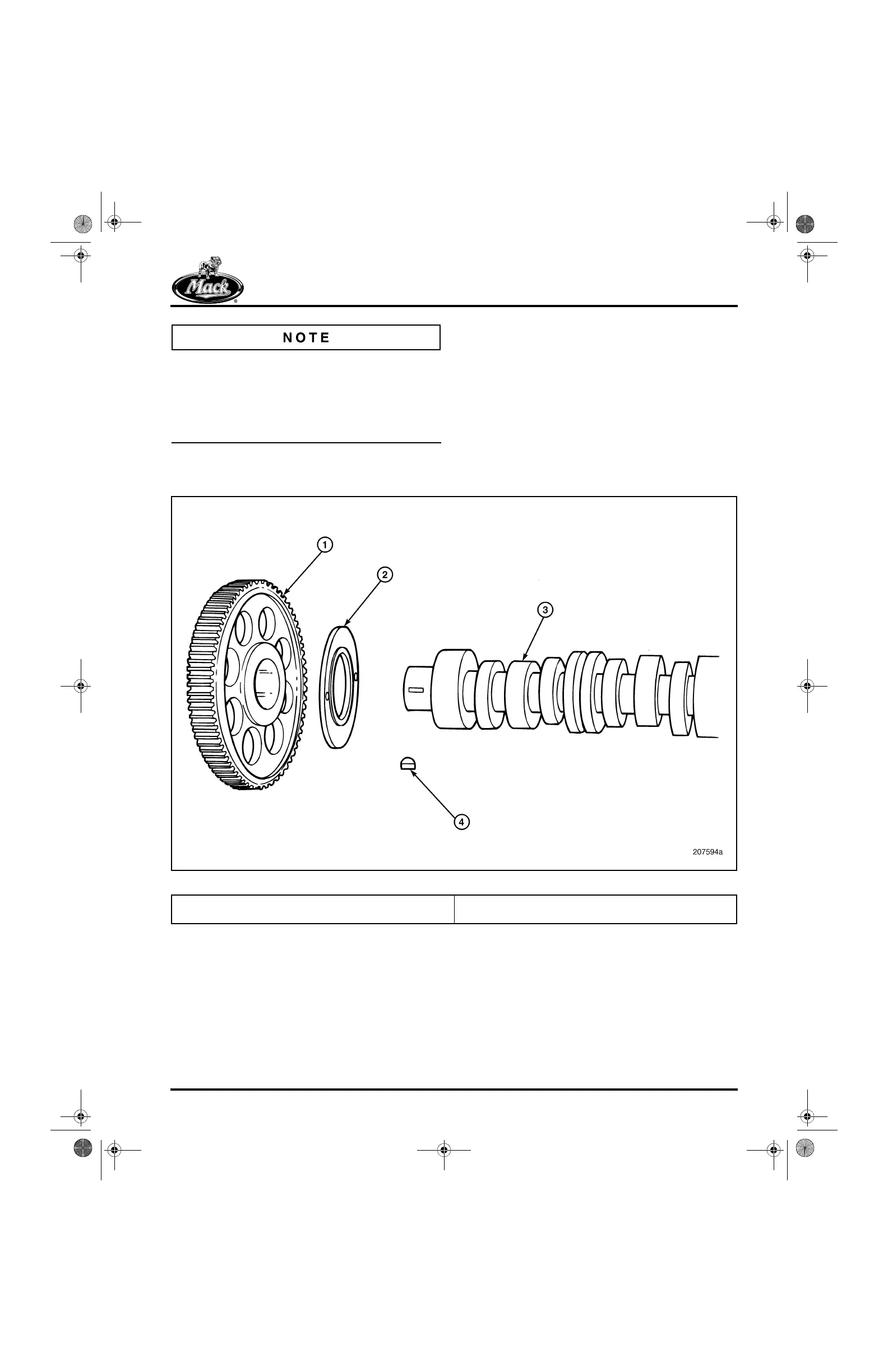

Figure 228 — Camshaft Assembly Components
1. Camshaft Gear
2. Camshaft Captured Thrust Washer
3. Camshaft
4. Key
