REPAIR INSTRUCTIONS, PART 1
Page 295
10. Make sure the connecting rod is aligned with
the crankshaft journal.
11. While applying downward pressure to the
ring compressor tool to keep it in contact
with the cylinder sleeve, use a hammer
handle to push the piston through the tool
(Figure 331). Continue pushing on the piston
until the top ring has passed into the cylinder
sleeve.

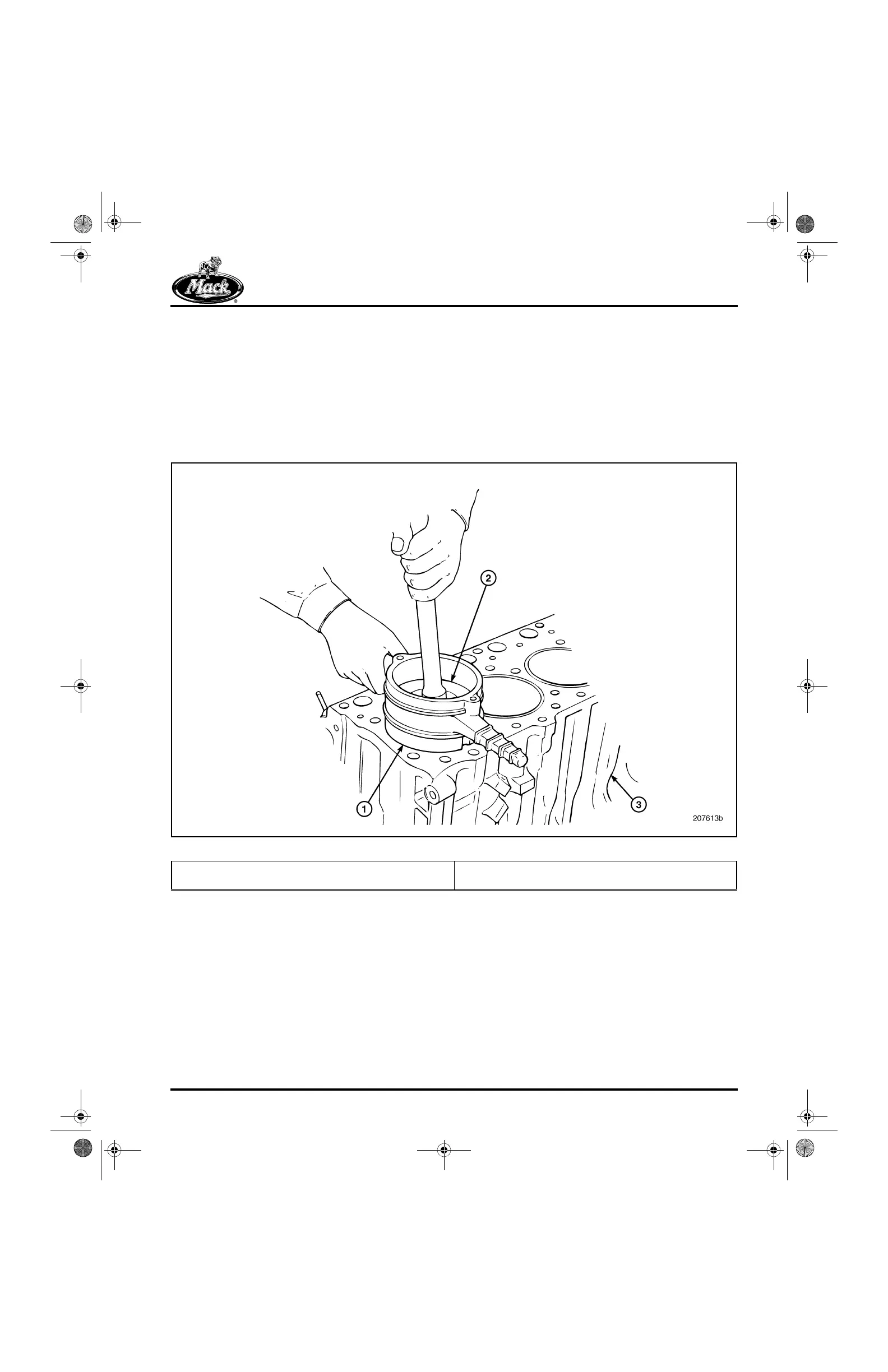

331
Figure 331 — Pushing Piston into Cylinder Sleeve
1. Piston Ring Compressor Tool
2. Piston
3. Cylinder Block
