Page 450
REPAIR INSTRUCTIONS, PART 3
VALVE YOKE, VALVE LASH AND BRAKE
LASH ADJUSTMENT FOR J-TECH™
BRAKE-EQUIPPED ENGINES
Valve Yoke Adjustment Procedure (J-Tech™
Brake Engines)
Adjust the valve yokes at the exhaust valve
positions using the following procedure. As these
engines are equipped with the self-leveling
pinless valve yokes at the inlet positions, only the
exhaust valve yokes need to be adjusted.
Make sure that adjusting screws are retracted
upward in the rocker arms. If the adjusting screws
are not retracted and extend too far below the
rocker arm, the push rods can be bent and valve
lifter rollers damaged or broken when tightening
the rocker arm assembly brackets.
Verify that the slave piston adjusting screws are
fully retracted and that all the spherical jam nuts
are turned down snug against the rocker arms
before rotating the engine crankshaft for valve
lash adjustment. Rotating the engine crankshaft
with the spherical jam nuts loose, or the slave
piston adjusting screws not fully retracted, could
damage the brake master pistons or damage or
break the ceramic lifters.
1. Using engine barring socket J 38587-A, or
equivalent, manually rotate engine in normal
rotation direction until pointer in flywheel
housing aligns with the valves 1 and 6 marks
on the flywheel and the No. 1 piston is at top
dead center on the compression stroke.
Valve lash must be set using the valve
adjustment marks on the engine flywheel, which
are at 30 degrees ATC. This ensures that the
lifter is on the camshaft base circle and not on the
brake ramp portion of the lobe.
2. Loosen the rocker arm adjusting screw jam
nuts and back out the adjusting screws
several turns. ASET™ engine rocker arm
adjusting screws have a 5 mm internal hex
at the screw head.
For clarity, most of the illustrations in this section
show adjustments being performed without the
Jake brake units being installed. However, the
Jake units must be installed to correctly adjust the
inlet and exhaust valve lash.
552

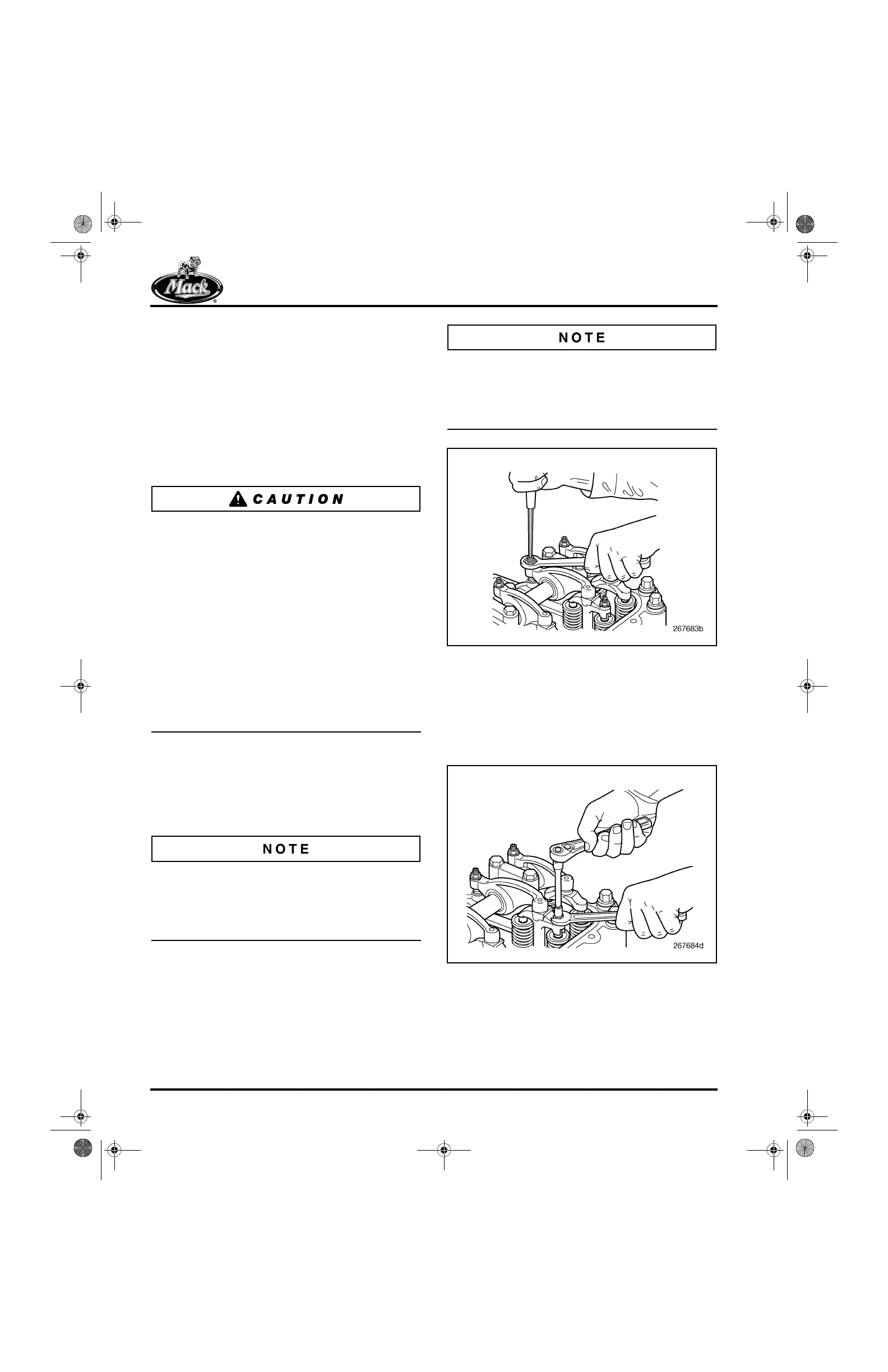

Figure 552 — Loosening Exhaust Rocker Arm Locknut
and Backing Out Adjusting Screw
3. Loosen the No. 1 cylinder yoke adjusting
screw jam nuts for the exhaust valves. Yoke
adjusting screws used with the J-Tech™
brake have a 8 mm hex at the top of the
screw body.
553
Figure 553 — Loosening Valve Yoke Adjusting Screw
Locknut
