Maeda MC285C-3 - Outrigger Components

Section 4 – OUTRIGGER COMPONENTS Mini-Crawler Crane M A E D A
4-32 1/2019 MC285C-3
OUTRIGGER COMPONENTS

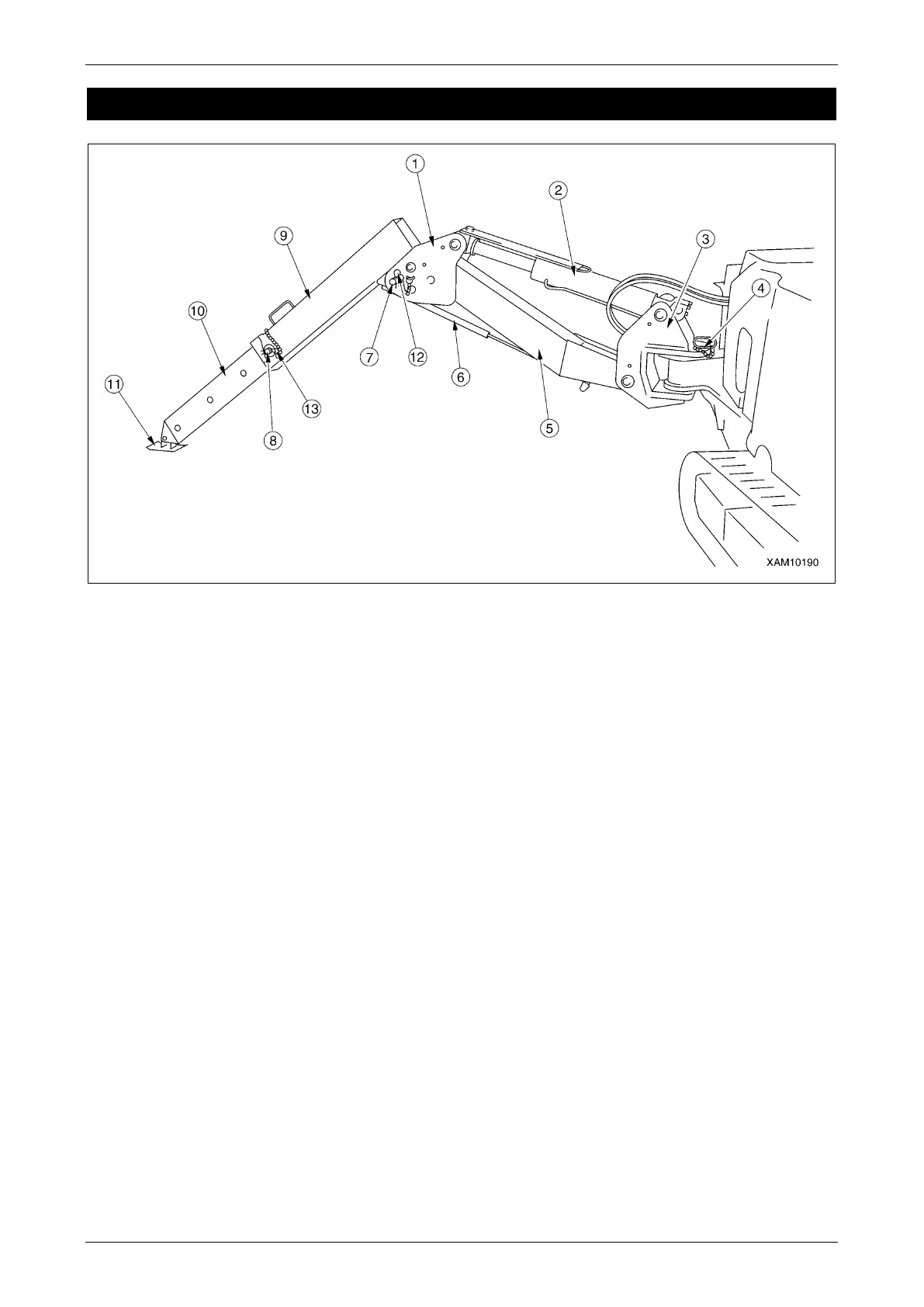

Fig. 4-84
1 - Linkage Bracket
2 - Outrigger Cylinder
3 - Rotary
4 - Rotary Positioning Pin
5 - Outrigger Base Box
6 - Stay (of damper type)
7 - Outrigger Top Positioning Pin
8 - Inner Box Positioning Pin
9 - Outrigger Top Box
10 - Inner Box
11 - Pad
12 - Snap Pin
13 - Snap Pin
