M A E D A Mini-Crawler Crane Section 4 – OUTRIGGER STOWING
1/2019 MC285C-3 4-49
After Stopping Engine
WARNING! Crush Hazard. Always hold the
outrigger with one hand when removing the
position pin. The outrigger can suddenly
rotate.
Although the method for stowing outrigger is
described with regard to the outrigger 3 only,
follow the procedure for the other three
outriggers as well:

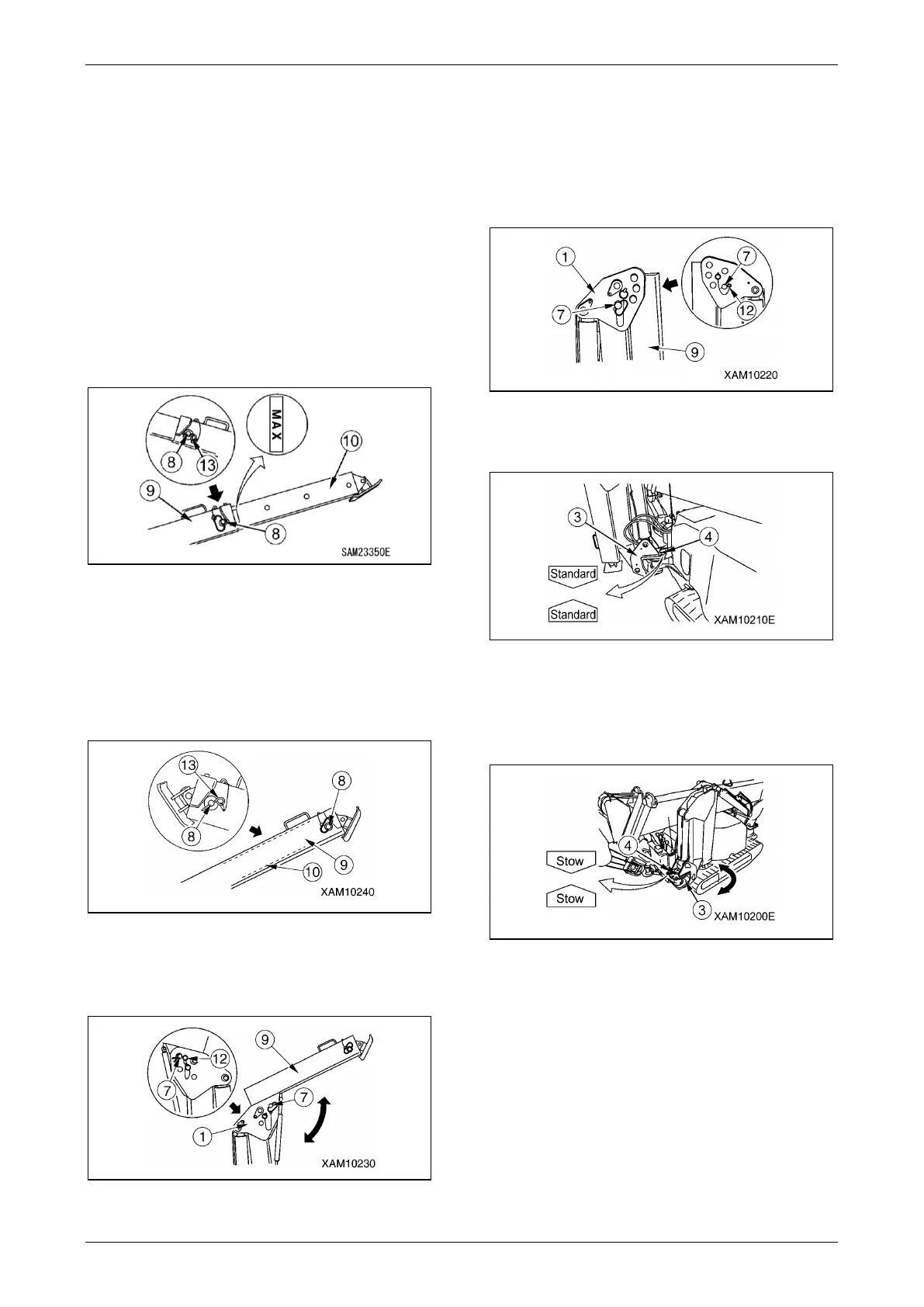

1. After removing the snap pin (13) at the end
of the position pin (8) on the top box (9),
remove the position pin.
Fig. 4-137
2. Push the inner box into the top box and
align the hole of the top box with the
outermost hole position on the inner box.
3. Insert the position pin (8) into the hole of the
top box (9) and retain it with the snap pin
(13) at its end.
Fig. 4-138
4. After removing the snap pin (12) at the end
of the position pin (7) of the linkage bracket
(1), pull out the position pin.
Fig. 4-139
5. Lower the top box (9) and align the hole of
the top box with the innermost hole position
of the linkage bracket.
6. Insert the position pin (7) into the innermost
hole of the linkage bracket (1) and retain it
with the snap pin (12) at its end.
Fig. 4-140
7. Pull out the position pin (4) of the rotary (3)
and turn the rotary to inside.
Fig. 4-141
8. Turn the rotary (3) and align the seal “Stow”
which is affixed to the side of the rotary with
the seal “Stow” affixed to the side of the
frame.
Fig. 4-142
9. Insert the position pin (4) into the hole
where the “Stow” seals are aligned.
10. Stow the other three outriggers in the same
manner.
11. After stowing the outriggers, make sure that
each position pin has been securely
inserted and retained.
