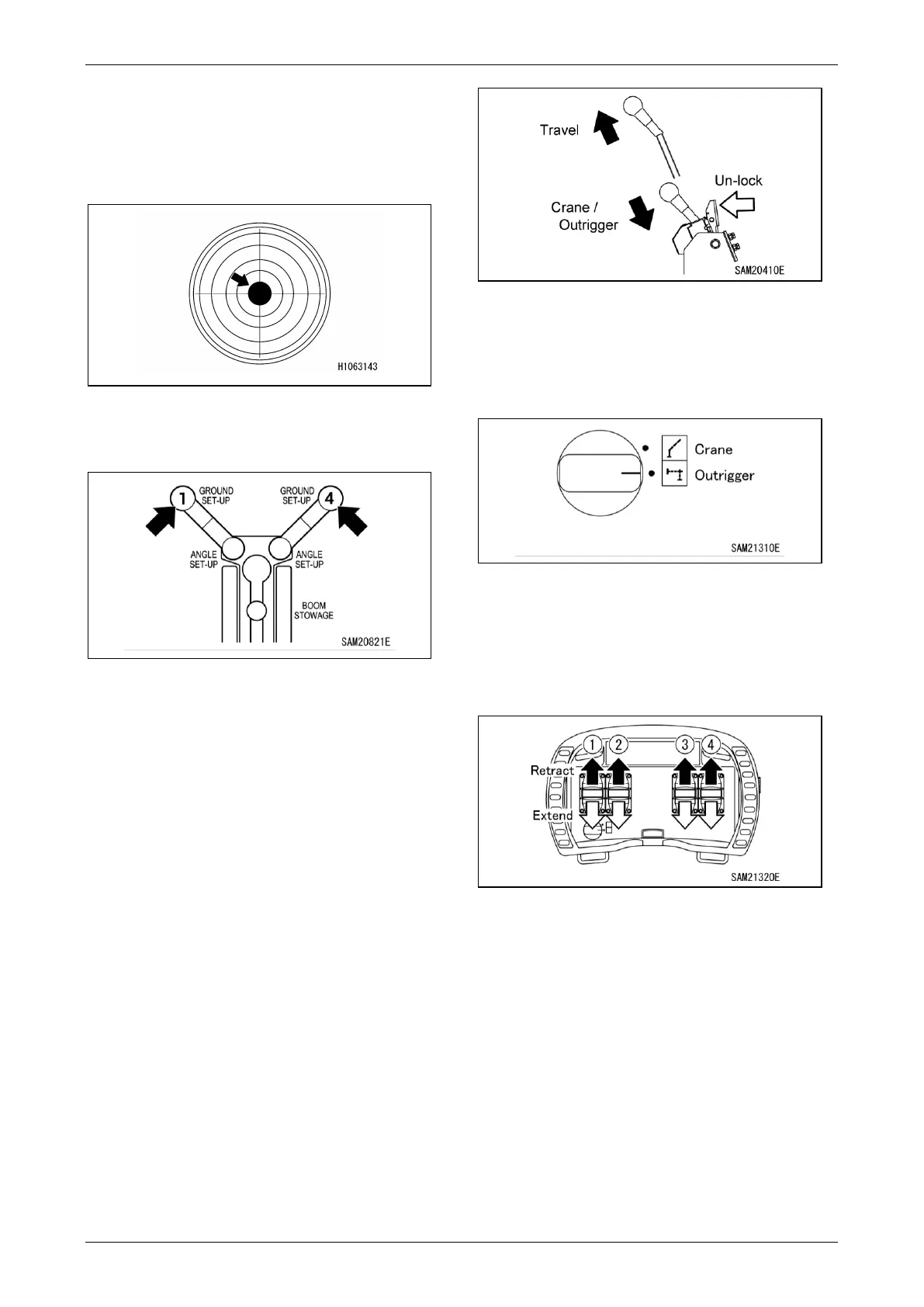

6. Once the machine has been lifted
approximately 80 mm above the ground,
check the position of the bubble in the
monitor level gauge to level the machine
body.
Fig. 4-267
7. Verify that all four outrigger Ground Set-Up
Lights on the monitor are illuminated in green.
Fig. 4-268
NOTICE: The crane will not operate if even one of
the outrigger Ground Set-Up Lights on the monitor
is flashing red. Either set up the outriggers once
again or inspect the machine main unit.
Outrigger Stowage
WARNING! Before stowing the outriggers,
always check the precautions in “Outrigger
Stowage Operation.”
Always stow the boom before stowing the
outriggers. For more information, see “Crane
Stowing Operation” on page 4-61.
Operations after Starting Engine
1. Start the engine. See “Starting the Engine” on
page 4-97.
2. Push in the travel lever on the machine main
unit while unlocking the lever to enable
operation of outriggers.
Fig. 4-269
NOTICE: If the travel lever is not pushed in, the
interlock engages, preventing outrigger operation.
3. Switch the operation mode selector switch to
“Outrigger.”
Fig. 4-270
4. Operate the levers slowly to stow the four
outriggers.
Operate both the front or rear operation
levers at a time or operate all four levers
together.
Fig. 4-271
• Ground Set-Up: The outriggers are lowered
to the ground.
• Stowage: The outriggers are lifted from the
ground.
NOTICE: When using the remote control system,
there are no levers to operate all four outriggers
simultaneously or to operate the front or rear
outriggers simultaneously. To operate multiple
outriggers, operate the corresponding operation
levers simultaneously.
