M A E D A Mini-Crawler Crane Section 5 – PERIODIC MAINTENANCE
1/2019 MC285C-3 5-39
Maintenance Every 500 Hours
Perform this maintenance in tandem with
maintenance every 30/50/100/250 hours.
Replace Engine Oil
WARNING! The drain plug of the engine oil
pan is mounted at the cover under the control
lever. When draining engine oil, use
outriggers to raise the machine approximately
80 mm. Always place timbers beneath right
and left crawlers and ground for safety.
WARNING! Securely tighten the oil level
gauge after checking/refilling the oil.
If the oil level gauge falls during the operation,
the hot oil may spout out of the pan, causing
burns.
WARNING! Various parts are at elevated
temperatures immediately after engine
operation.
Do not proceed with oil or filter cartridge
replacement immediately but wait for the
engine to cool to the extent that you can touch
it with your hand.
CAUTION: Make sure that old packing is not
stuck to filter base. If it is, it can cause oil
leakage.
CAUTION: See “LUBRICATING OIL” on page
5-10 for the oil to be used.
Using oil other than those specified may
shorten the life of the engine. Be sure to refill
the specified oil.
CAUTION: Keep the engine oil at an
appropriate level.
CAUTION: When the engine is cold, oil cannot
be drained completely.
Drain the oil in a condition in which the engine
cools down to the extent that it is touchable by
hands.
CAUTION: Be careful not to let any foreign
substance go into the filler opening when
refilling the oil.
• Oil drain pan: Prepare a container of at least 3 L.
• Volume of oil actually to be replaced in the oil
pan: 1.85 L
1. Place the machine on a level surface.
2. See “OUTRIGGER SETTING” on page 4-38
to set outriggers and raise the machine about
80 mm above the ground.

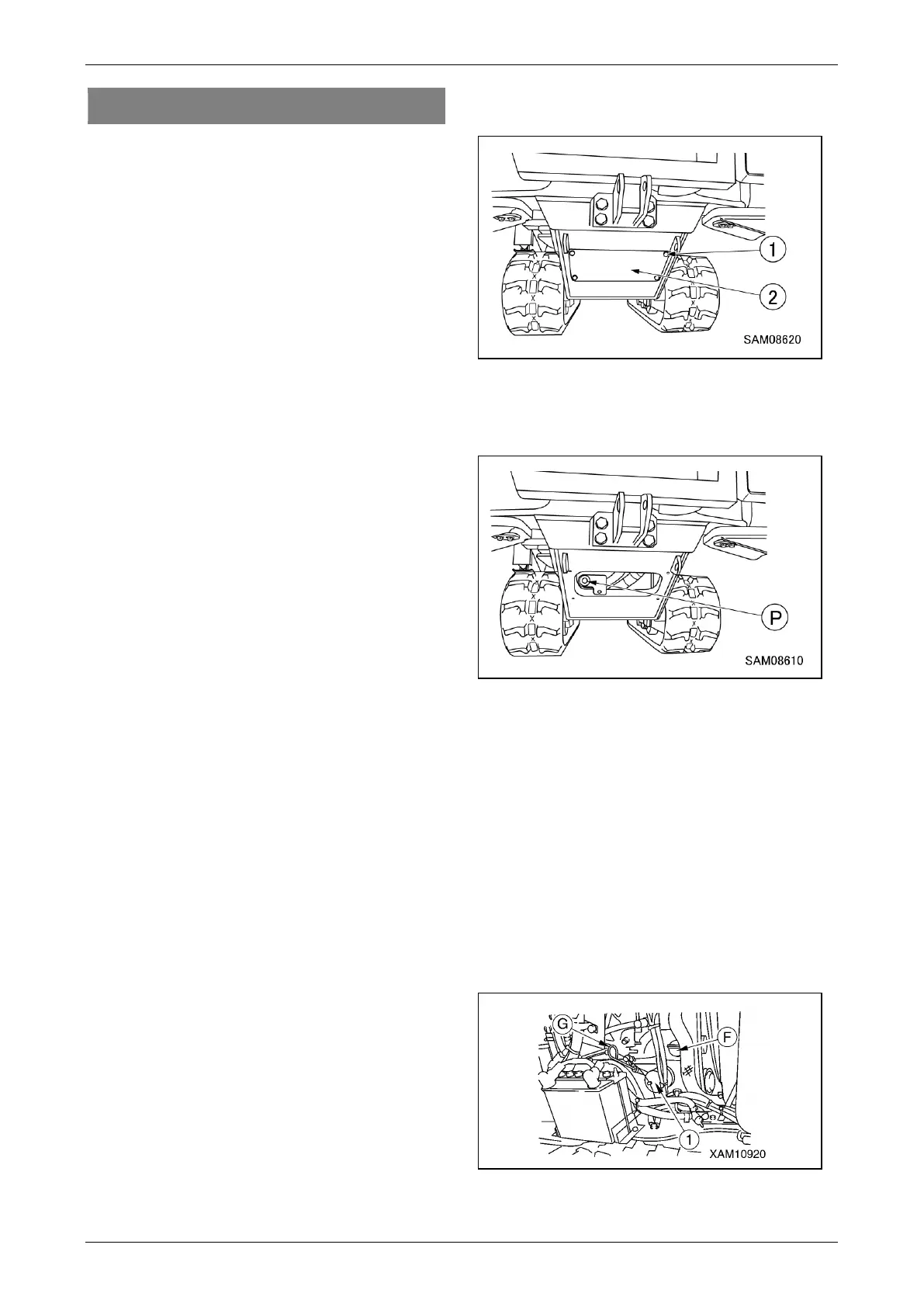

3. Remove the bolt (1) at 4 places and remove
the cover (2).
Fig. 5-63
4. Place a container to collect the drained fuel
directly underneath the drain plug (P) of the
engine lower part.
Fig. 5-64
5. Turn the drain plug slowly to avoid splashing
oil on yourself, and drain oil.
6. Check the drained oil and if it contains an
unacceptable amount of metal particles or
foreign matter, contact our sales service
agency.
7. Reinstall the drain plug and the cover.
8. See "OUTRIGGER STOWING" on page 4-48
to stow the outriggers.
9. See “Removing Machinery Cover” on page
5-14 and remove the machinery cover.
10. By means of filter wrench, turn filter cartridge
(1) counterclockwise to remove it.
Fig. 5-65
To Next Page
