Maeda MC285C-3 - Searcher Hook Dimensional Drawing-Standard; Searcher Hook Dimensional Drawing-Electric Motor Option

Section 3 – DIMENSIONAL DRAWINGS Mini-Crawler Crane M A E D A
3-10 1/2019 MC285C-3

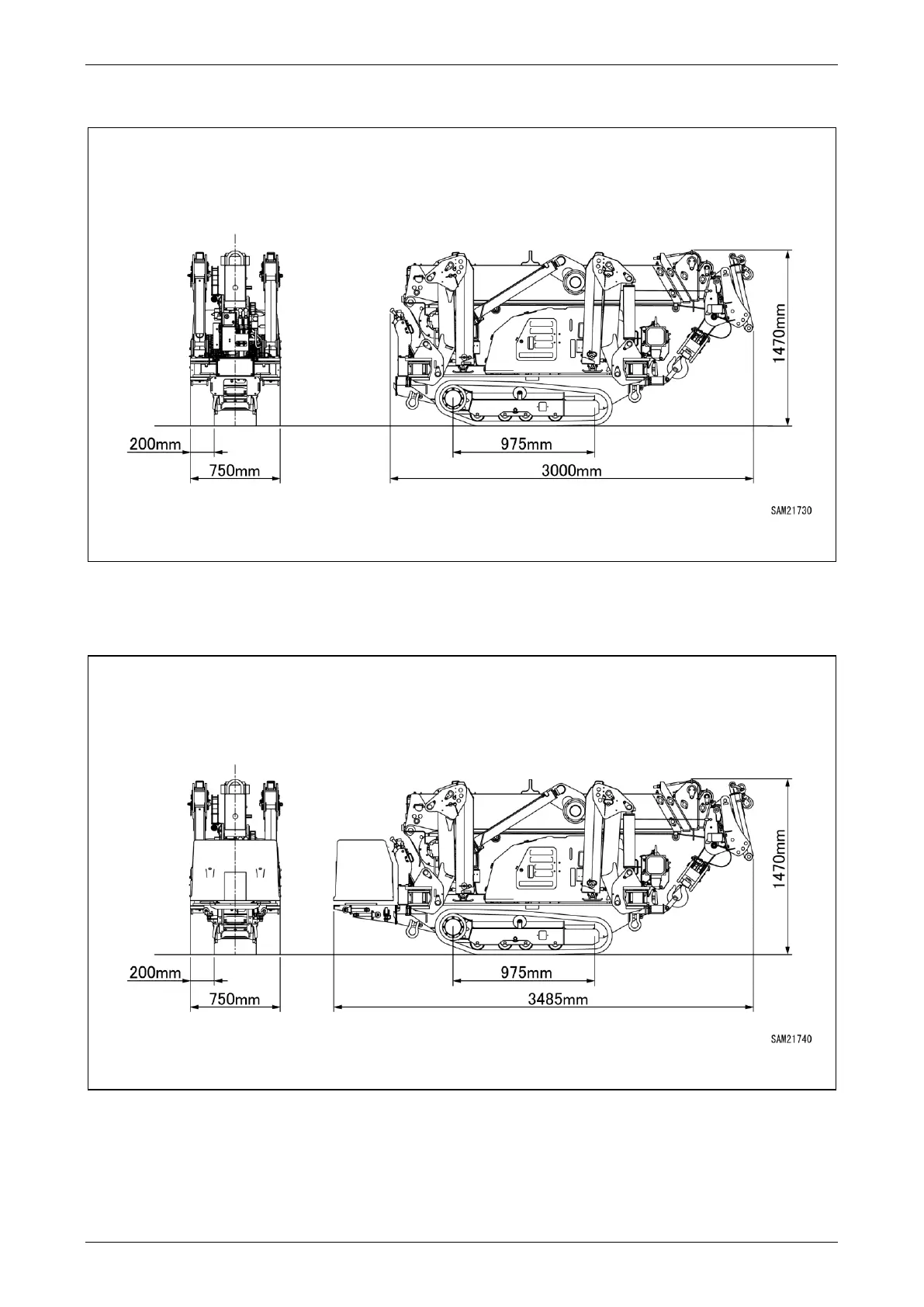

Searcher Hook Dimensional Drawing-Standard
Fig 3-8
Searcher Hook Dimensional Drawing-Electric Motor Option
Fig 3-9
