M A E D A Mini-Crawler Crane Section 3 –DIMENSIONAL DRAWINGS
1/2019 MC285C-3 3-9
DIMENSIONAL DRAWINGS

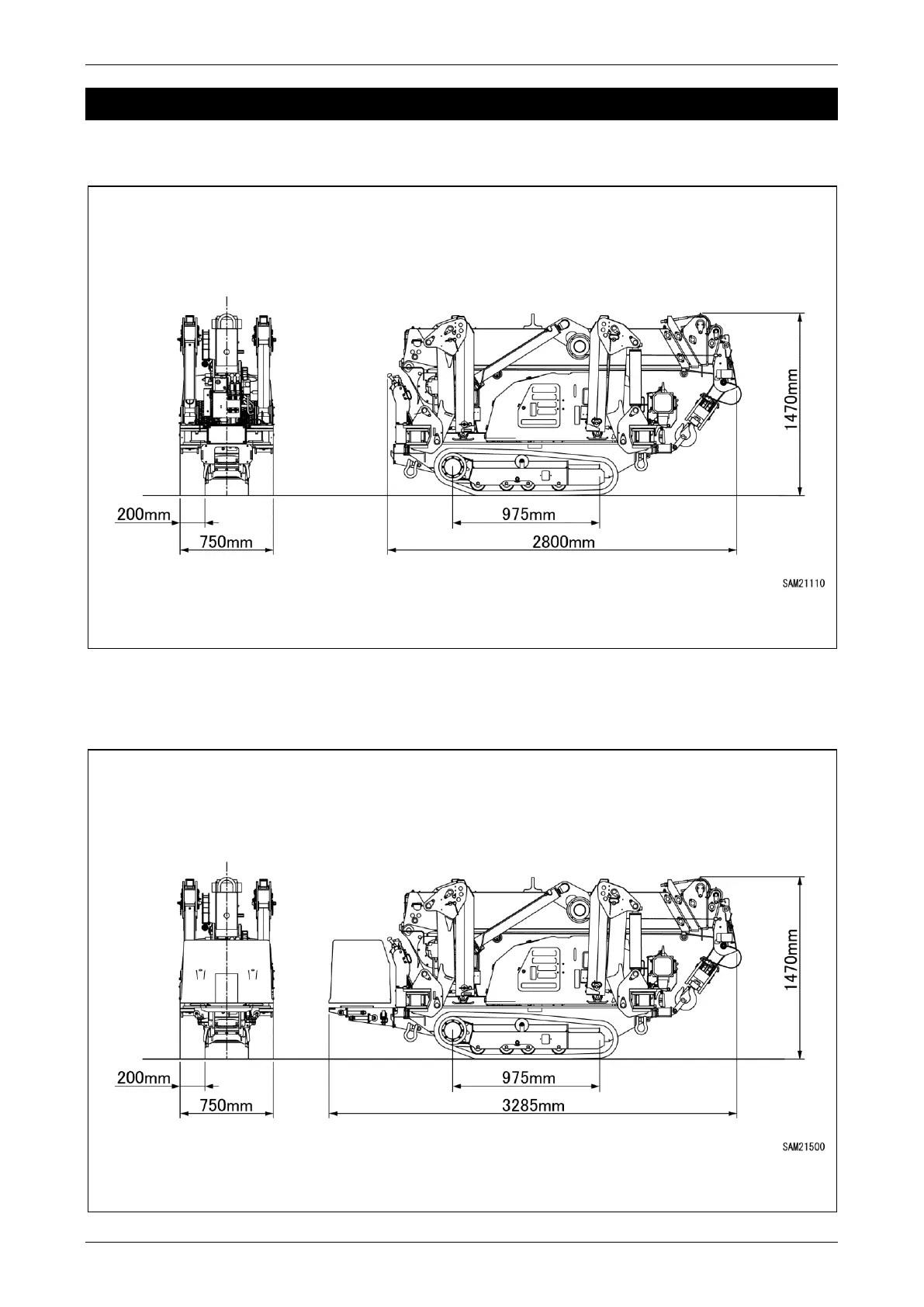

Machine Dimensional Drawing–Standard
Fig 3-6
Machine Dimensional Drawing–Electric Motor Option
Fig 3-7
