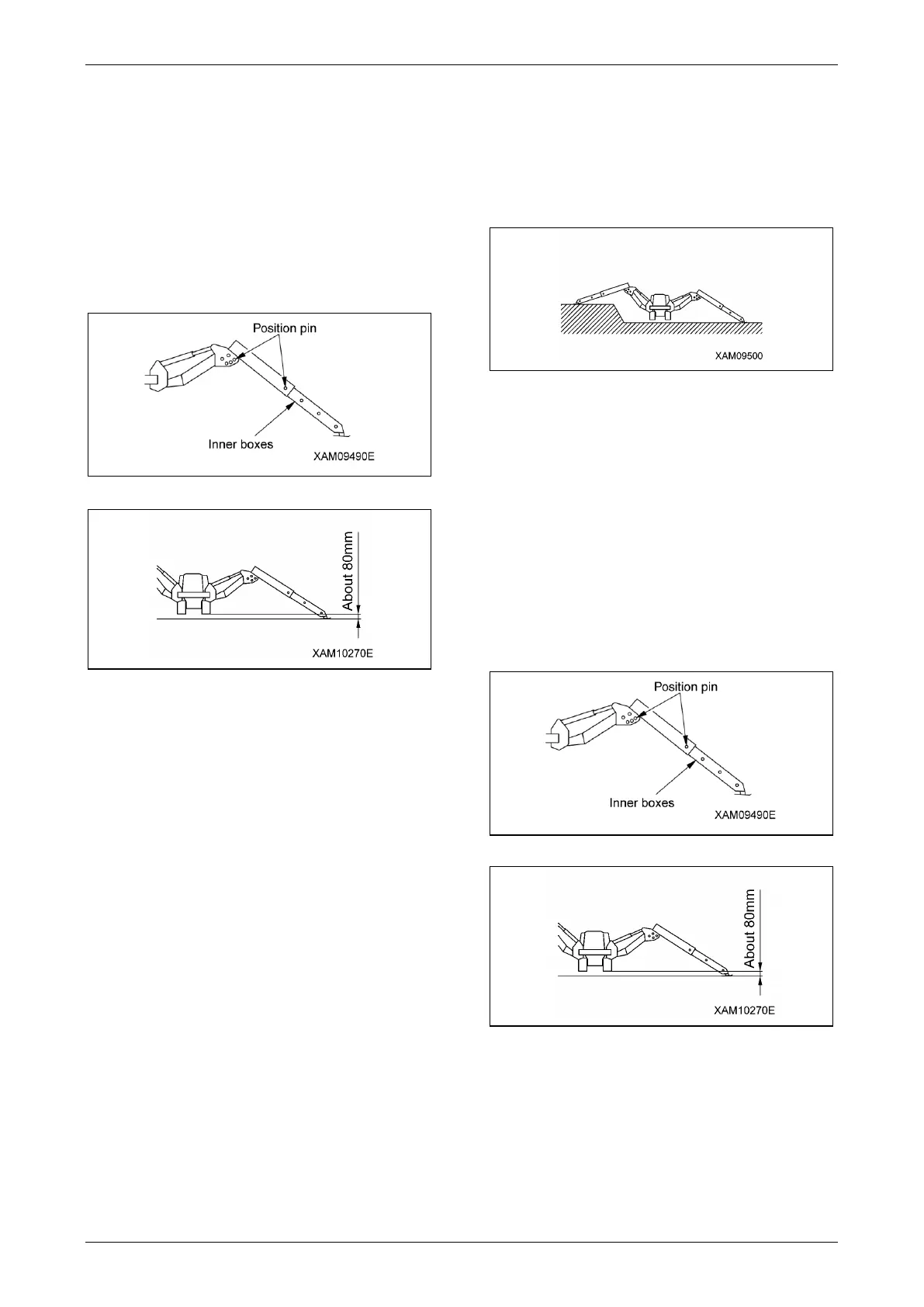

The "MAX" outrigger position occurs when:
1. The outrigger is set with the position pin
position (60 degrees front, 45 degrees
back).
2. The inner box of each outrigger is fully
extended.
3. All outriggers are placed on a level surface.
4. Approximately 80 mm is assured for
clearance (between the outrigger bottom
and crawler bottom).
Fig. 4-124
Fig. 4-125
"Other than MAX" Outrigger
Position
When the outriggers are set at the "Other than
MAX" outrigger position on uneven ground, do
not use the machine.
Fig. 4-126
The "Other than MAX" outrigger position occurs
when:
1. The outrigger is set with the position pin
position (60 degrees front, 45 degrees
back).
2. The inner box of each outrigger is extended
other than maximum.
3. All outriggers are placed on a level surface.
4. Approximately 80 mm is assured for
clearance (between the outrigger bottom
and crawler bottom).
Fig. 4-127
Fig. 4-128
If one or more outriggers are retracted to other
than maximum point, see the rated total load for
the "Other than MAX" outrigger position in
“RATED TOTAL LOAD CHARTS” on page 3-13
for correct capacities.
