M A E D A Mini-Crawler Crane Section 4 – OUTRIGGER SETTING MODES
1/2019 MC285C-3 4-47
Allowable Slewing Angles in
Multi-Angle Outrigger State
The following table gives the allowable range of
slewing angles in multi-angle outrigger state.
Note that the crane cannot be operated at
multi-angle outrigger state not indicated in the
table.
The following three outrigger extension states
are defined:
• Maximum: Rotary at standard angle position,
and the inner box at maximum extension
• Other than maximum: Rotary at standard
angle position, and the inner box not at
maximum extension
• Multi: Rotary not at standard angle position

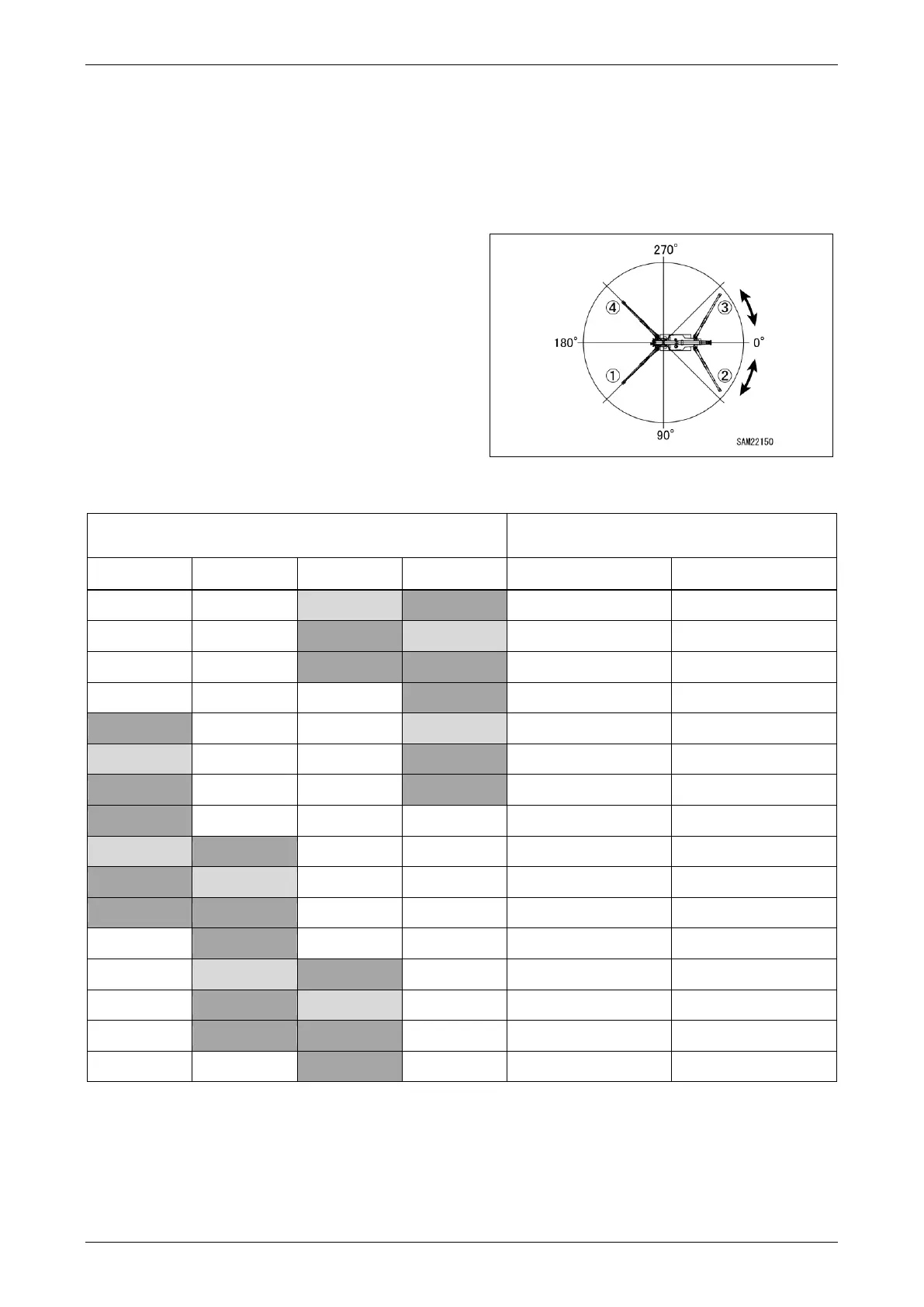

Fig. 4-132
Allowable range of slewing angles
(slewing angle)
