Section 4 – REMOTE CONTROL SYSTEM COMPONENTS Mini-Crawler Crane M A E D A
4-92 1/2019 MC285C-3

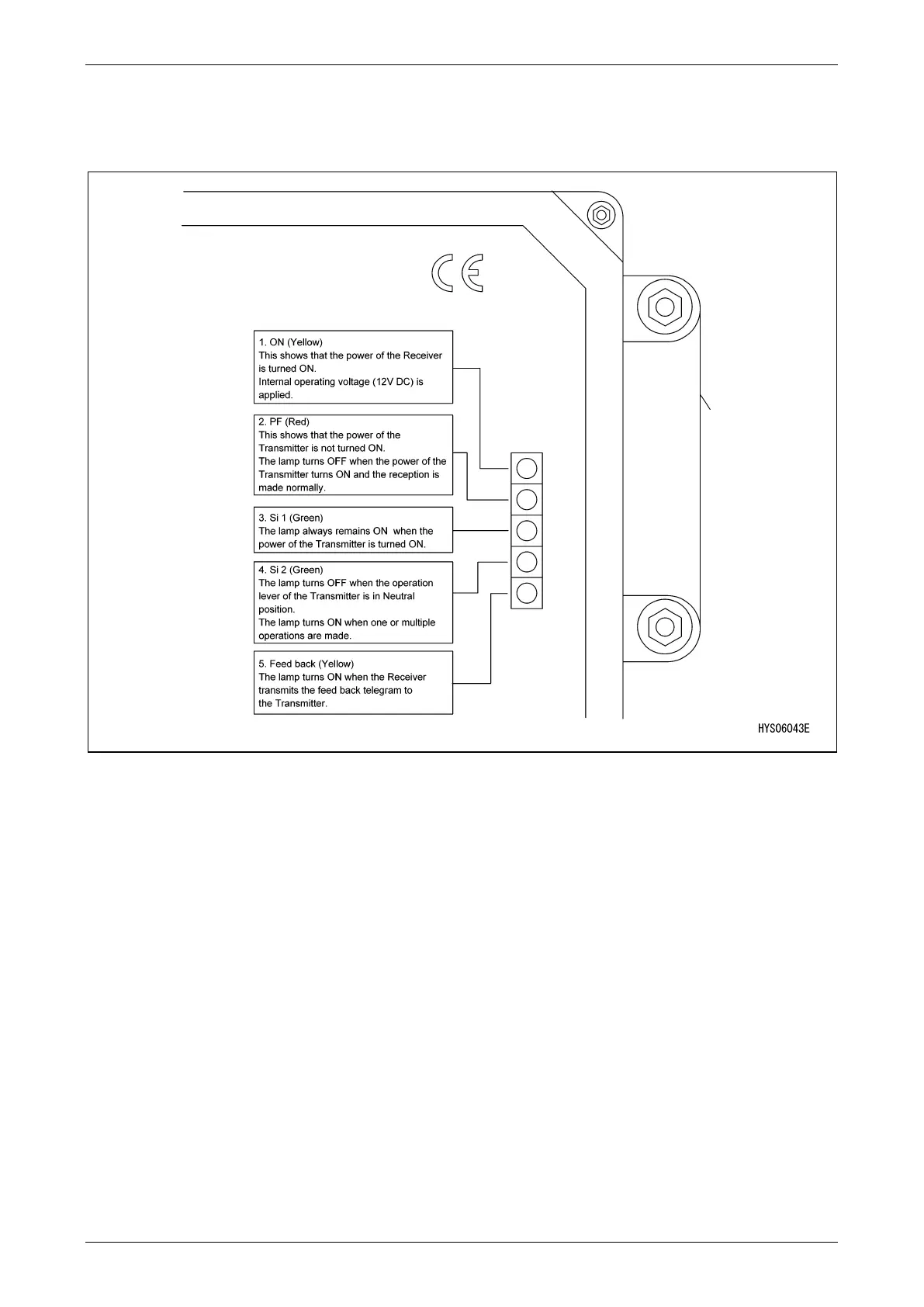

Monitor LED
The control box is equipped with monitor LEDs that show the operation status of the remote control
system.
Fig. 4-242
Connector connection port
Wiring connector to allow communication with the
controller on the machine.
The wire must be kept connected.
WARNING! Before performing electric welding
due to repair work for the machine body or
other reasons, be sure to disconnect the wire.
Failure to do so may result in a machine
failure caused by burn damage to the control
box due to high voltage applied to it.
Antenna
Antenna that allows communication with the
transmitter of the remote control system.
