Section 3 – RATED TOTAL LOAD CHARTS Mini-Crawler Crane M A E D A
3-14 1/2019 MC285C-3
Boom Length
The following figures illustrate the condition of the booms in "RATED TOTAL LOAD CHARTS" on page
3-13: 2.535 m Boom, 2.540-4.075 m Boom, 4.080-5.575 m Boom, 5.580-7.075 m Boom, 7.080-8.575 m
Boom

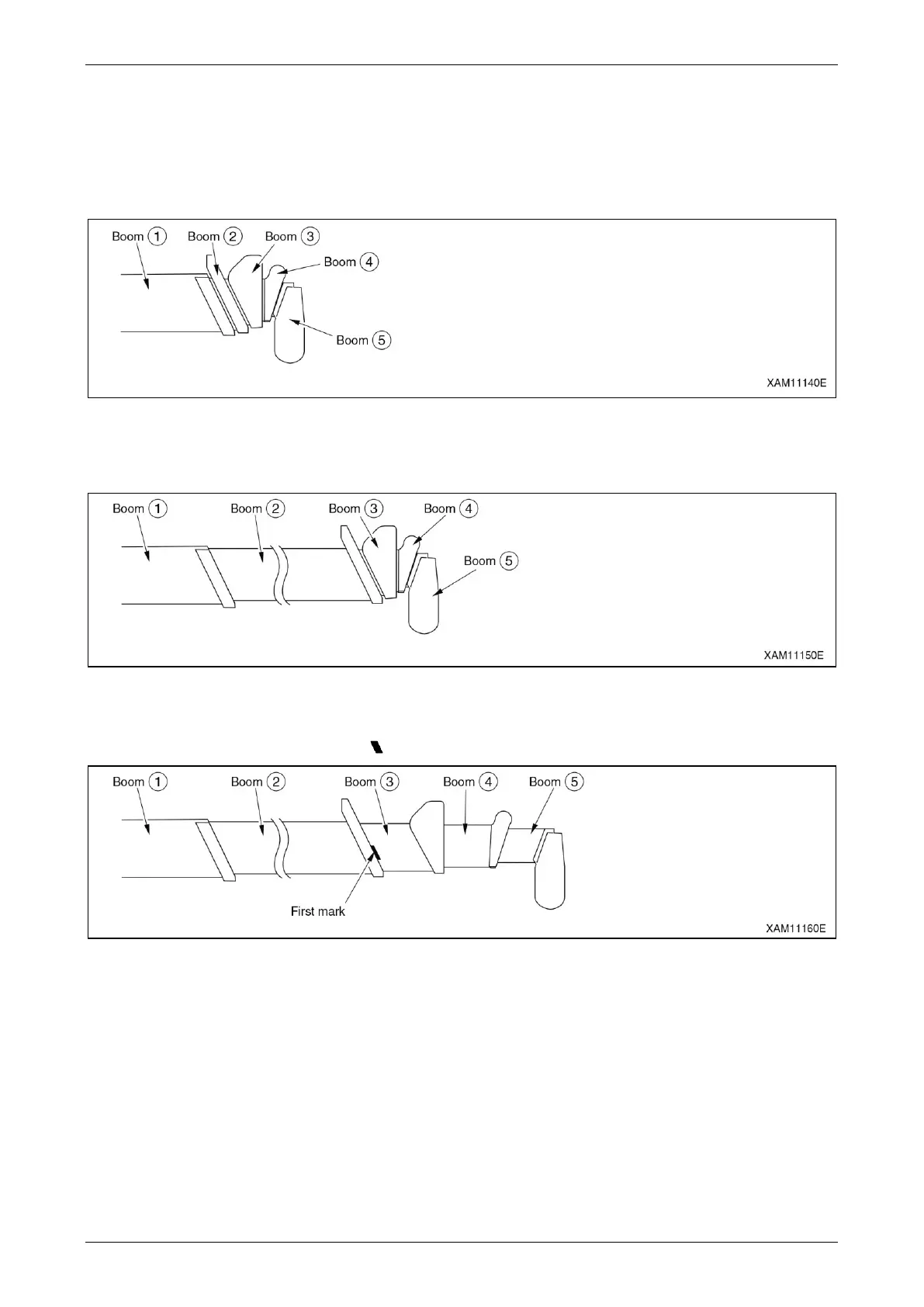

1) 2.535 m Boom: All the booms are retracted.
Fig. 3-14
2) 2.540-4.075 m Boom: When boom ② begins to extend until boom ② is fully extended with booms ③
+ ④ + ⑤ fully retracted.
Fig. 3-15
3) 4.080-5.575 m Boom: With boom ② fully extended, and when boom ③ begins to extend, until boom
③ is extended until the first mark on boom ③ is visible at the end of boom ②.
Fig. 3-16
