Maeda MC285C-3 - Working Radius;Lifting Height for Auxiliary Winch

Section 3 –WORKING RADIUS/LIFTING HEIGHT Mini-Crawler Crane M A E D A
3-28 1/2019 MC285C-3
Working Radius/Lifting Height for Auxiliary Winch
DANGER:
• The working range diagram shows the relationship between the working radius of this machine,
boom angle and lifting height above the ground with no object hoisted. Deflection in the boom
is not indicated.
• When using auxiliary winch, always set moment limiter to auxiliary winch.
• Do not use single fall hook block and crane hook block at the same time.
• Use of crane hook block is prohibited in auxiliary winch mode.

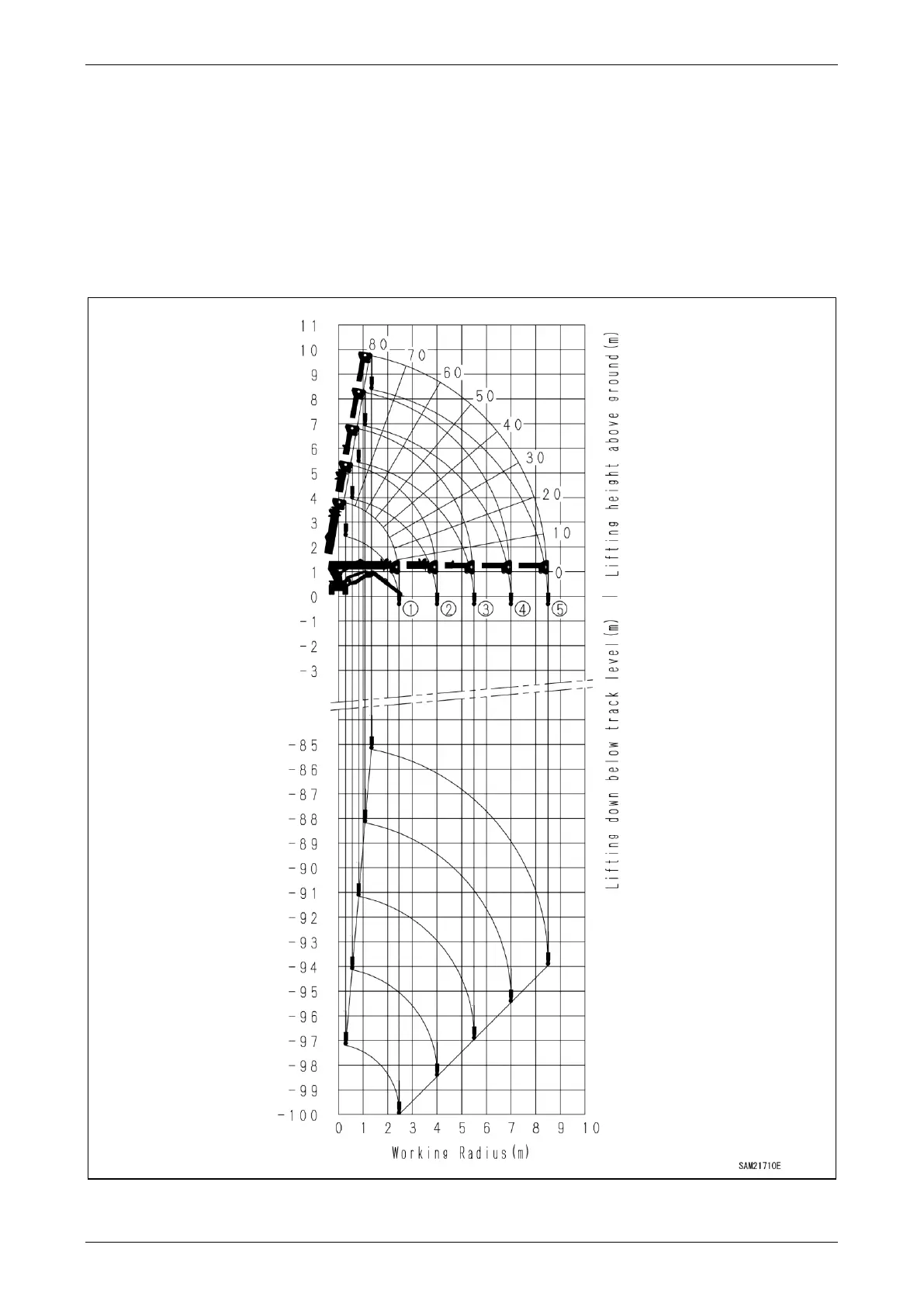

Fig. 3-26
