17BHome Screen

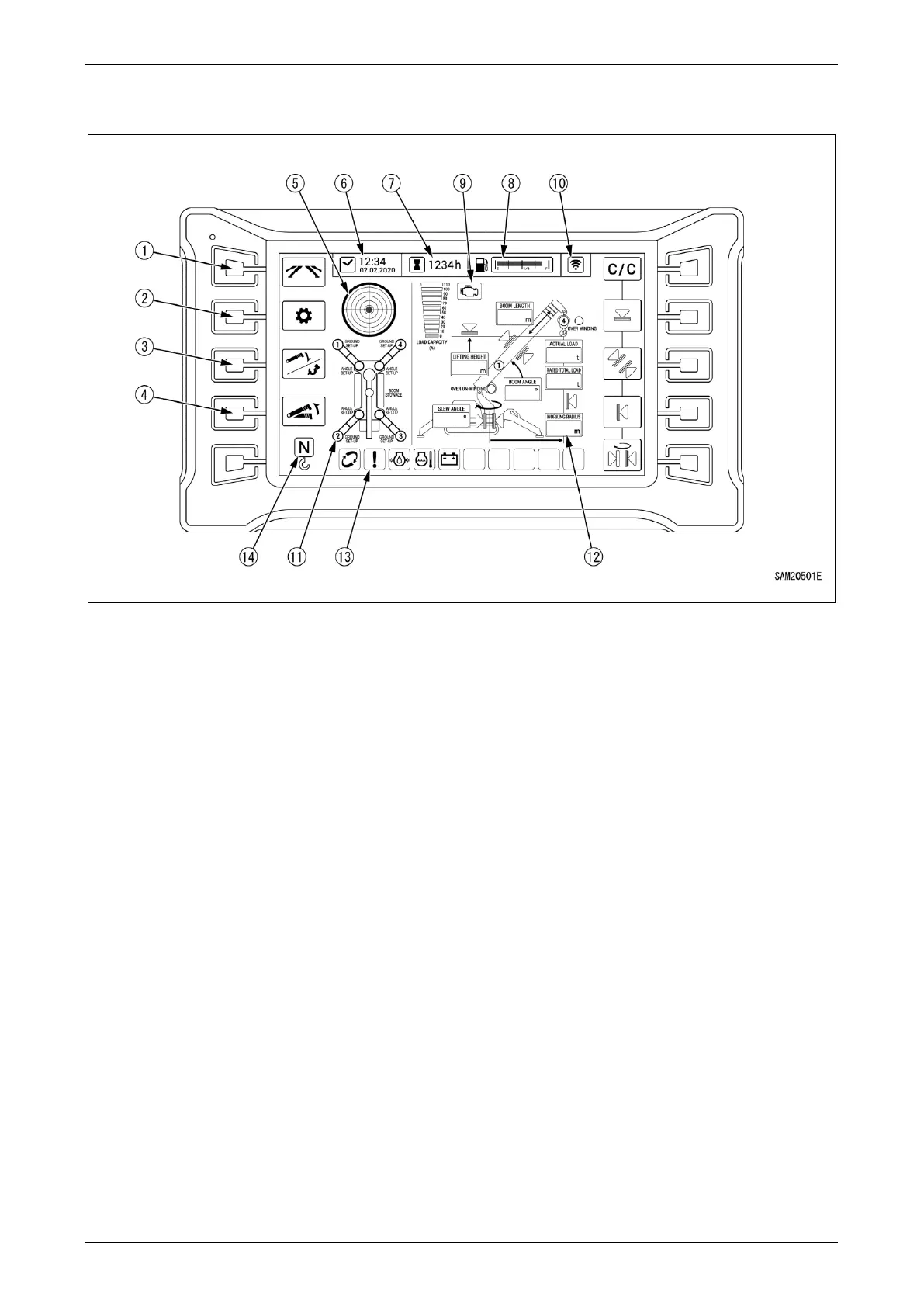

Fig. 4-14
1 - Outrigger Mode Switch
2 - User Mode Switch
3 - Hook Stowage/Boom Stowage Switch
4 - Boom Lift Bypass Switch
5 - Level Gauge
6 - Time Display
7 - Hour Meter Display
8 - Fuel Gauge
9 - Engine/Electric Motor Drive Display
10 - Remote Control System Connection
Indication
11 - Outrigger Status Display
12 - Moment Limiter Status Display
13 - Warning Display
14 - Normal/Multi Mode Display
