Section 4 – MOMENT LIMITER (OVERLOAD DETECTOR) Mini-Crawler Crane M A E D A
4-72 1/2019 MC285C-3

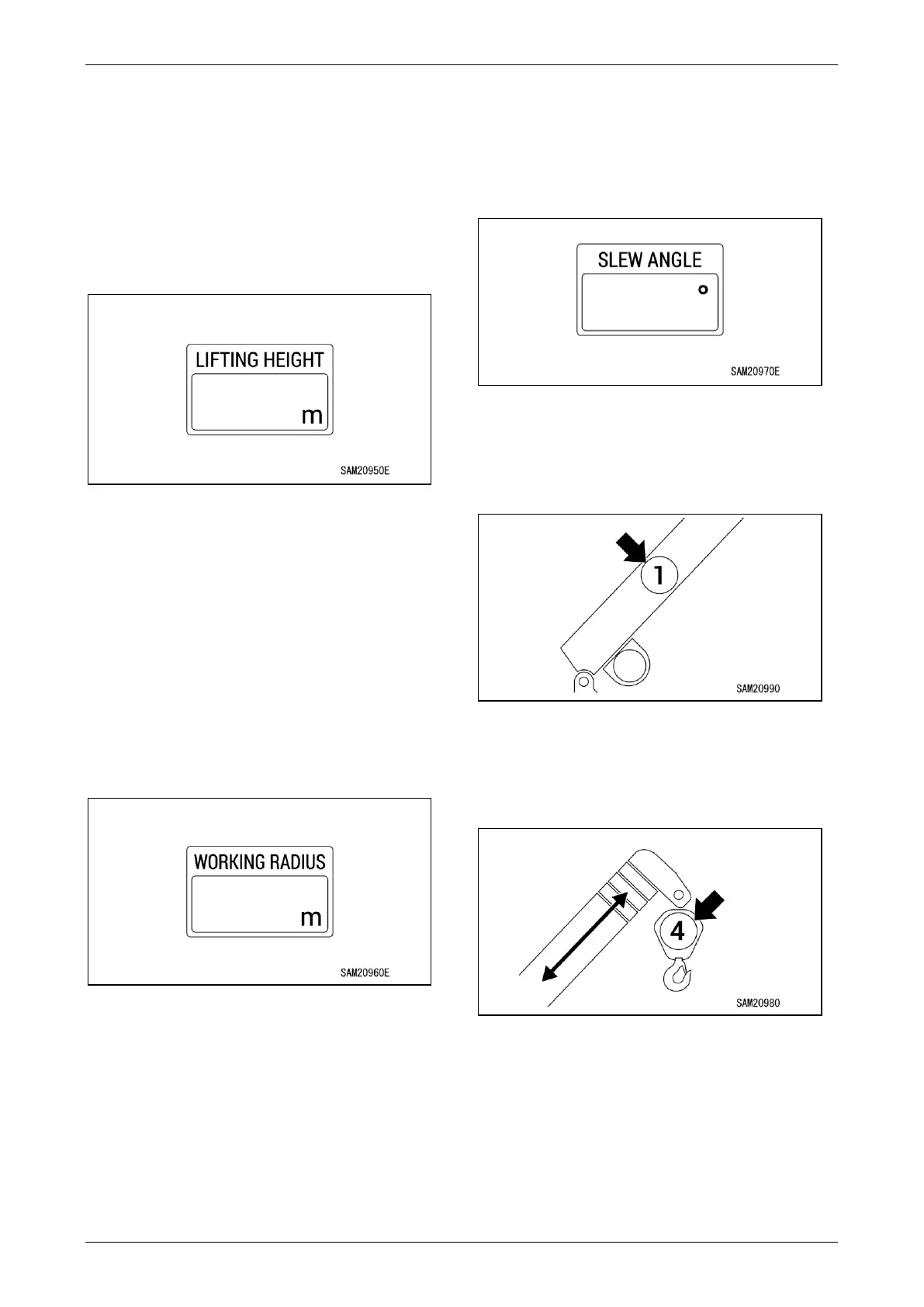

Maximum Lifting Height above Ground
Display
Continually displays the maximum lifting height
above ground for the current boom status during
crane operations.
Lifting height above ground refers to the vertical
distance from the ground to the bottom of the
hook.
Fig. 4-194
NOTICE: The height lifted above ground does not
indicate the current hook position.
Indicates the height lifted above ground when the
hook has been raised to the over winding position
detection.
Working Radius Display
The current working radius is continually
displayed during crane operations.
The working radius refers to the horizontal
distance from the centre of slewing of the crane to
the centre of the hook.
Fig. 4-195
Slewing Angle Display
Displays the current slew angle when the crane is
being operated.
The slew angle refers to the angle through which
the boom slews from the stowage position (0°).
Fig. 4-196
Boom Section Display
Displays the current number of boom sections
when the crane is being operated.
Fig. 4-197
Number of Falls Display
Displays the current number of falls when the
crane is being operated.
Fig. 4-198
