Stopping Machine
1. Turn the Starter Switch key to the OFF
position to stop electric motor.

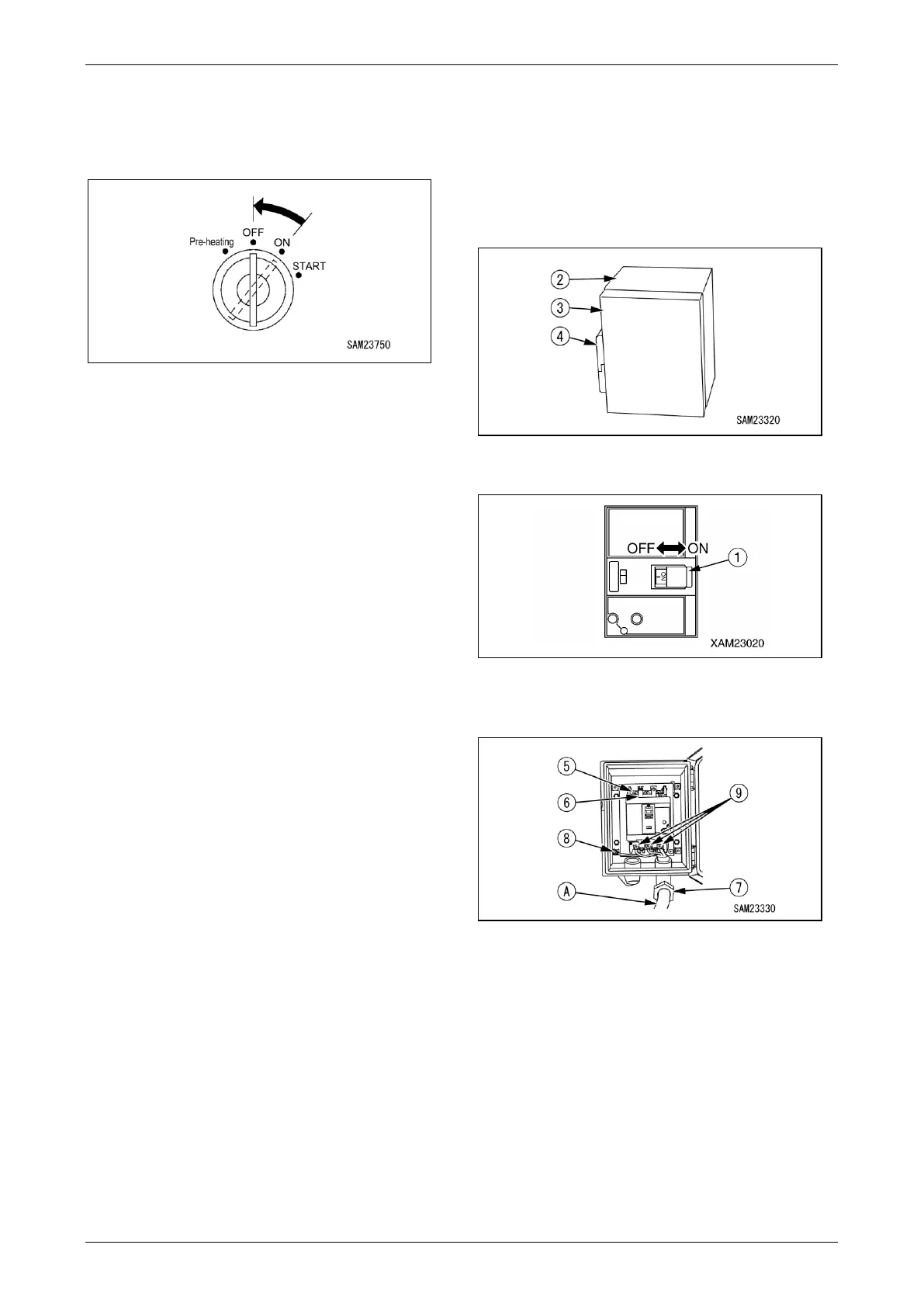

Fig. 4-315
2. Remove the Starter Switch key.
3. Visibly check for oil leakage, and for other
damage around the exterior of the machine.
Correct any problems before operating the
machine.
4. Clean and remove all dirt from the
undercarriage and outriggers.
5. Keep the area around the inverter unit free of
dead leaves and paper waste. A potential fire
could occur if disregarded.
Disconnecting Power Supply
1. Turn OFF the power supply equipment
breaker.
2. Unlock the door (3) of the power supply box
(2) by pulling the handle (4) toward you to
open it.
Fig. 4-316
3. Turn OFF the main breaker (1).
Fig. 4-317
4. Remove the cover (6) of the terminal block (5)
in the power supply box.
Fig. 4-318
5. Disconnect the cable (8) and three cables (9)
of the cabtyre cable (A) from the terminal
block (5).
NOTICE: Clean off the cabtyre cable and check it
for damage or bend. If the cable is damaged,
replace it with a new one.
NOTICE: Always return the cabtyre cable to its
designated place after performing inspection and
cleaning.
6. Replace the cover (6) of the terminal block (5)
to its original position and close the door (3)
of the power supply box (2).
