M A E D A Mini-Crawler Crane Section 4 –ELECTRIC MOTOR COMPONENTS
1/2019 MC285C-3 4-111
Starter Switch
NOTICE: Always turn the Starter Switch to the
OFF position after operation.
Use the Starter Switch to start and stop the
electric motor.
• OFF - Insert/remove the key at this position. All
the switches in the electrical system are turned
off and the electric motor stops.
• Pre-heating - Not used
• ON - Electric circuits of the inverter unit are on.
• START - When the electric motor starts, release
the key. The key automatically returns to the ON
position.

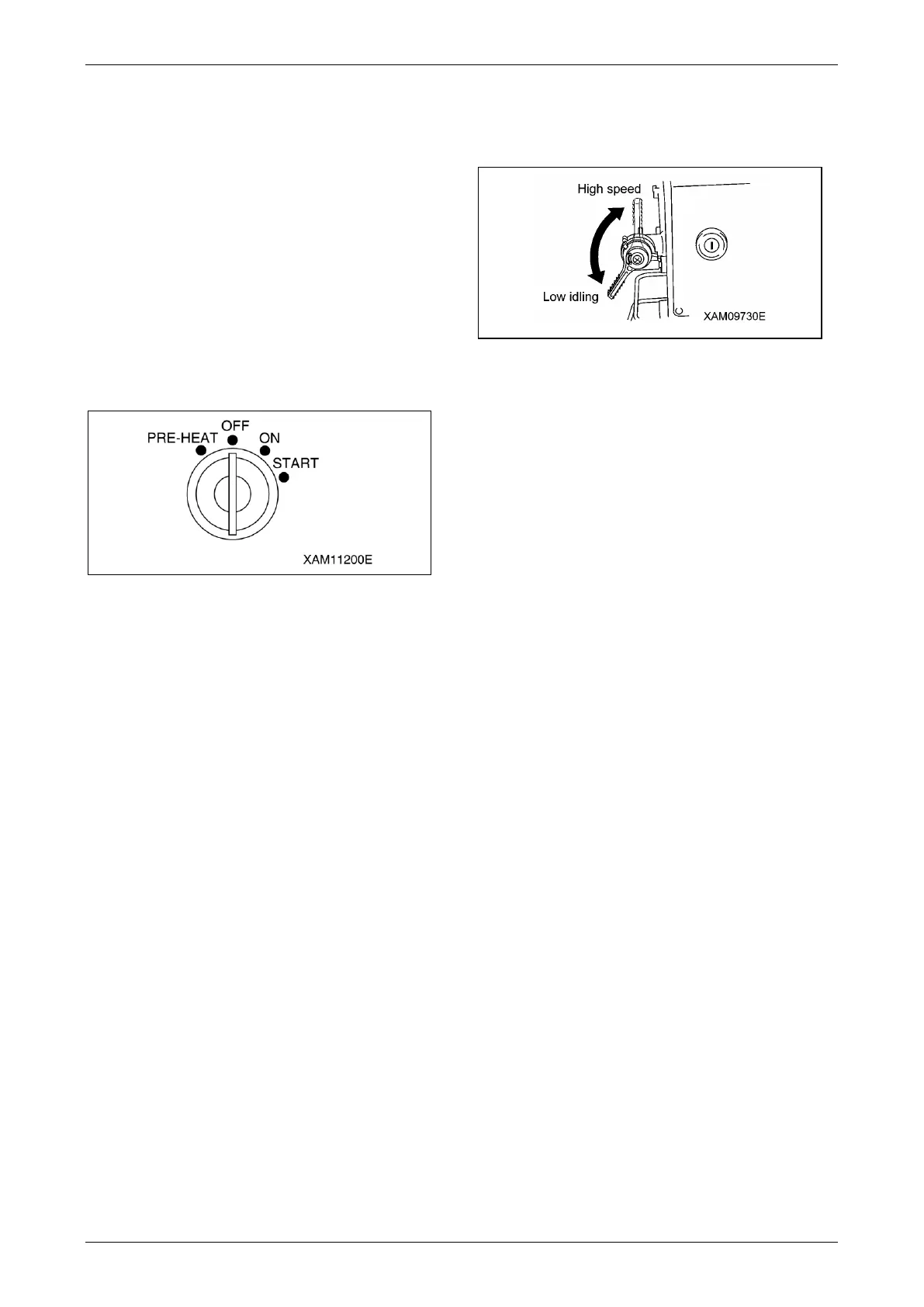

Fig. 4-295
Accelerator Lever
Use this lever to adjust the speed of the electric
motor.
Fig. 4-296
• Low idle: Push the lever down.
• Full speed: Pull the lever up.
NOTICE:
• Release the lever at the position corresponding
to the motor speed required for the operation.
The lever will remain at that position.
• Another accelerator lever is provided on the
crane control side.
