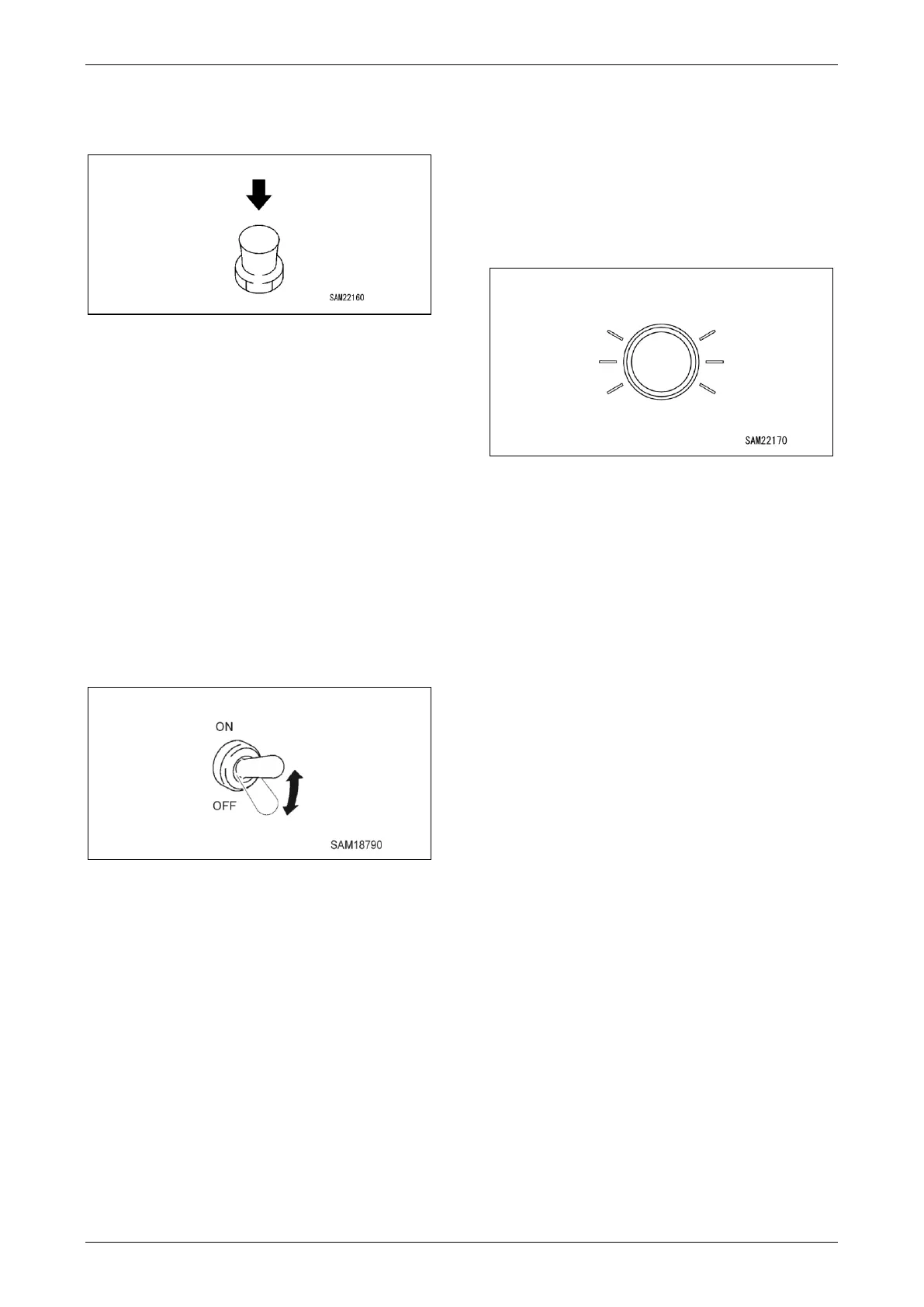

Section 4 – TRAVEL CONTROLS Mini-Crawler Crane M A E D A
4-6 1/2019 MC285C-3
Horn Switch
The Horn Switch is used to sound the horn.
Fig. 4-7
NOTICE:
• The horn sounds only for as long as the switch
is pressed down. Release the switch to silence
the horn.
• The horn switch is provided on the crane
operation side as well.
13BWorking Light Switch
The Working Light Switch is used to turn on the
working light on the front of the machine.
• ON: Push the switch upward to turn the
Working Light on.
• OFF: Push the switch downward to turn the
Working Light off.
Fig. 4-8
The working light does not operate when the
Starter Switch is in the OFF position.
Preheat Lamp
The preheat lamp lights up during preheat
operation engine start time.
This lamp lights up when the starter switch is
placed in the “Pre-heating” position and, after
several seconds, turns off to indicate that the
preheat is complete.
Fig. 4-9
