Maeda MC285C-3 - Fuses

M A E D A Mini-Crawler Crane Section 5 – FUSES
1/2019 MC285C-3 5-15
FUSES
NOTICE: Always turn the Starter Switch to the OFF position when checking or replacing a fuse.
Fuses protect electrical components and wires from electrical overload.
• If a fuse is corroded, replace the fuse.
• If a fuse blows, inspect and repair the cause before replacing the fuse.
• Always use a fuse of the same type and capacity when replacing.

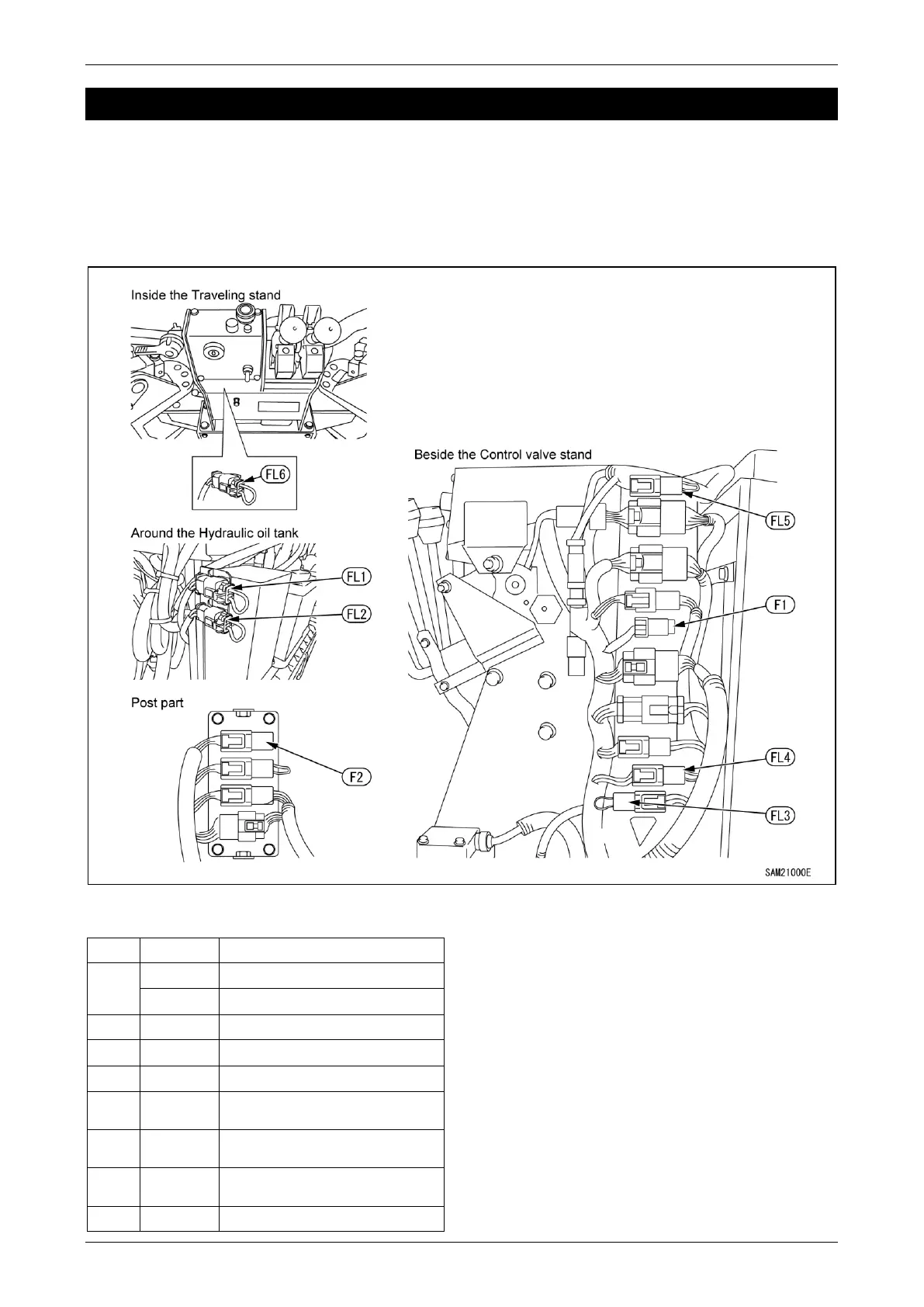

Fig. 5-7
No.
Capacity
Circuit name
F1
2 A
Override
2 A
Spare
F2
2 A
Working Status Lamp
FL1
0.85sq
Glow
FL2
0.85sq
Engine startup
FL3
0.3sq
Lower controller/Monitor
power supply
FL4
0.3sq
Remote control system/
Lower power supply
FL5
0.3sq
Upper controller power
supply
FL6
0.3sq
Starter Switch
