SEARCHER HOOK COMPONENTS (OPTION)

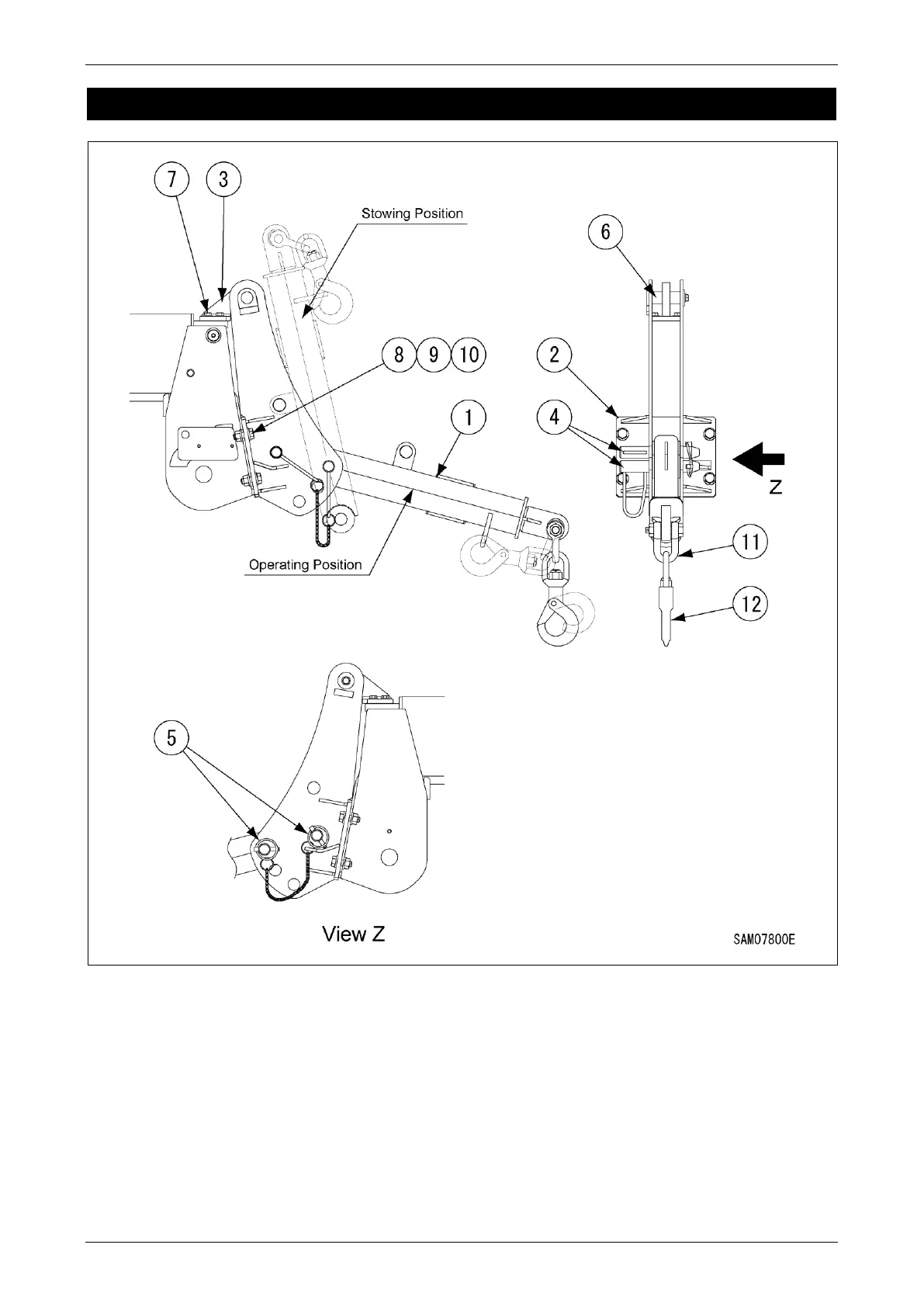

Fig.4-333
1 - E-Boom
2 - Bracket1
3 - Bracket 2
4 - Position pin
5 - Lynch pin
6 - pin
7 - Hexagonal bolt with washer
8 - Hexagonal bolt with washer (M12×35L
strength 10.9)
9 - Nut (M12× grade 1, strength 10)
10 - High tension washer (M12×26×3.2t)
11 - Shackle
12 - Hook
