Operation Mode Selector Switch
Used to switch between Outrigger mode and
Crane mode.

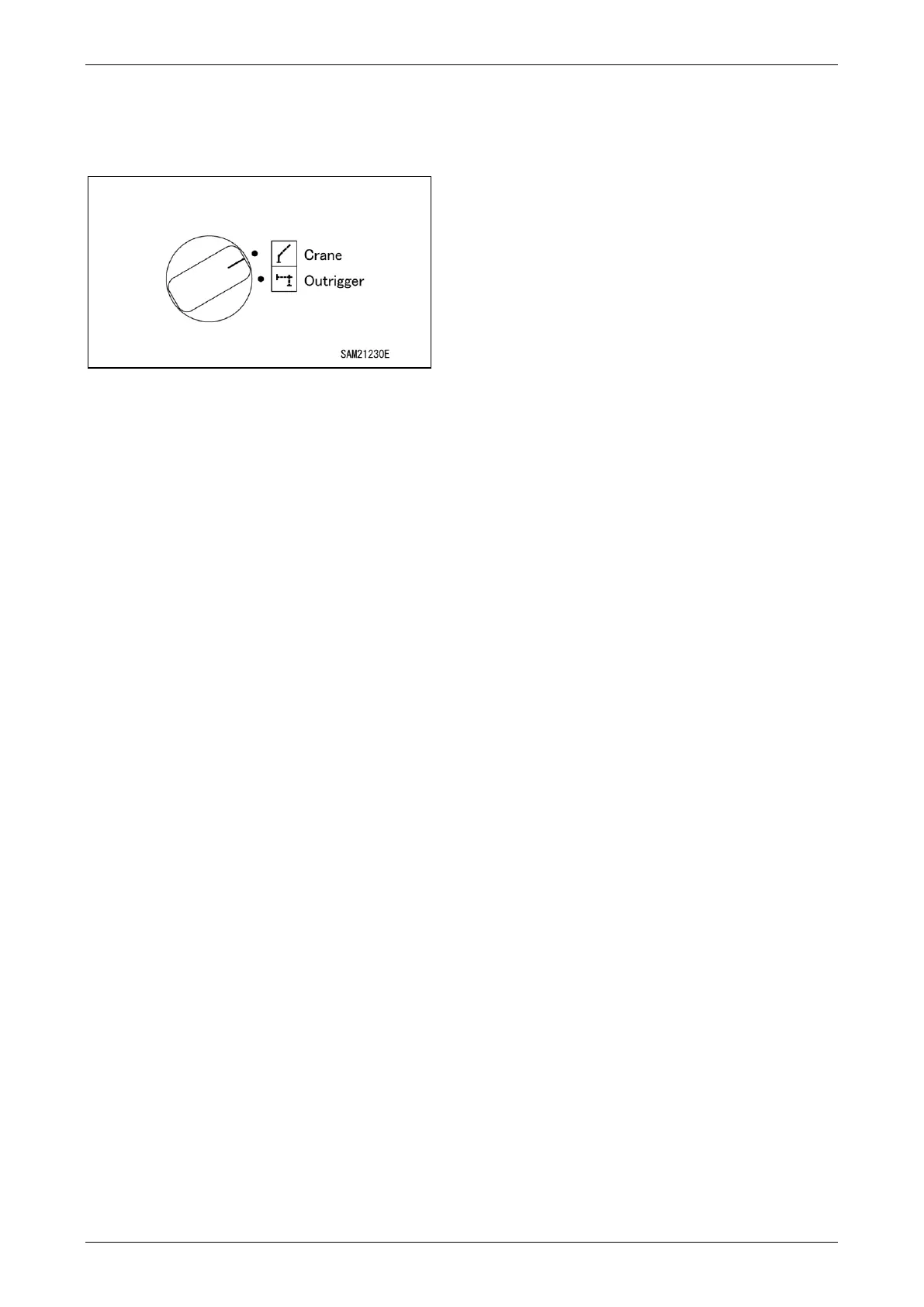

Fig. 4-232
• Outrigger: Allows outriggers to be operated
using levers.
• Crane: Allows the crane to be operated using
levers.
LED Light (Front)
LED Light (Control Panel)
Turns on the LED lights to illuminate the
surrounding area.
For more information on turning on the lights, see
“Transmitter Display Components” on page 4-87.
Left Display
Right Display
Use this display to view various kinds of
information.
For more information on display, see “Transmitter
Display Components” on page 4-87.
