e. After replacing the fuel filter, bleed the fuel
system.
NOTICE: Turn the key switch to ON to operate
fuel pump and wait up to 5 minutes for the air to be
released.
4. See “Installing Machinery Cover” on page
5-14 and install the machinery cover.
Check / Add Hydraulic Oil
Before checking or adding hydraulic oil, read the
maintenance precautions in “Handling and
Service of Hydraulic Oil and Filters” on page 5-7.
WARNING! The following safety messages
address a potential Burn Hazard:
• Relieve internal pressure by slowly rotating
the hydraulic tank filler cap during removal.
• Make sure the hydraulic tank filler cap is
closed properly after adding oil.
• When filling the hydraulic oil tank, do not fill
above the upper limit on the level gauge.
Overfilling may cause oil to gush from the
tank during machine operation.
1. Stop the machine on a level location.
2. Rotate and set the outriggers outward to
stabilise the machine. See “OUTRIGGER
SETTING” on page 4-38.

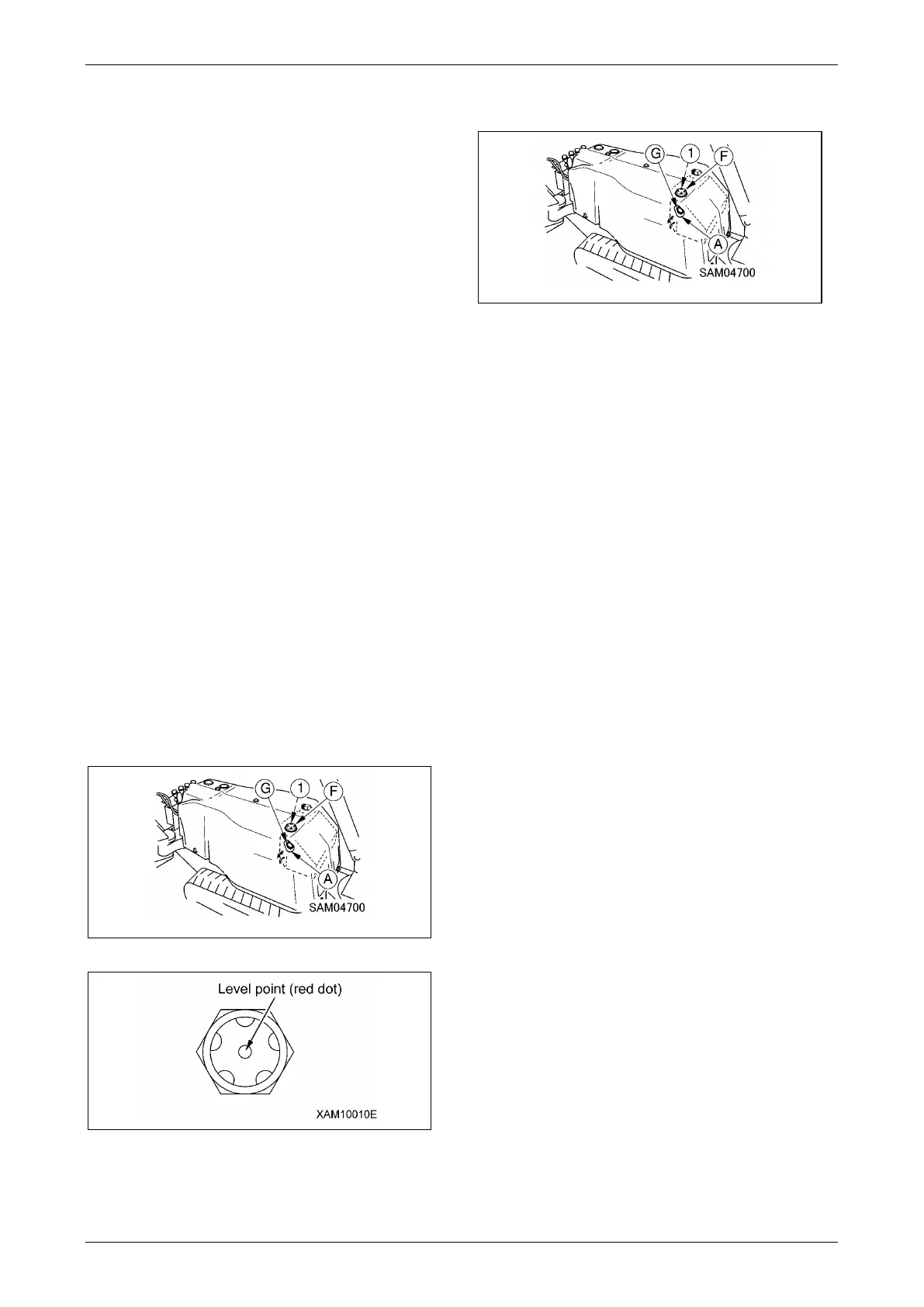

3. Check the oil level gauge (G) in the left side of
the machinery cover and ensure that oil is
sufficient to reach the level point (red point).
Fig. 5-22
Fig. 5-23
4. If the oil level is low, add hydraulic oil using
the following procedure.
Fig. 5-24
a. Remove the four mounting bolts (1) and
the filler cap (F) on the top of the hydraulic
oil tank.
b. Add hydraulic oil through the filler opening
while monitoring the oil level gauge (G).
c. After refilling with oil, set the filler cap (F)
and rubber packing to the filler opening
position and tighten mounting bolts
securely.
5. Rotate the outriggers inward and stow. See
“OUTRIGGER STOWING” on page 4-48.
