Maeda MC285C-3 - Setting Outriggers (Normal Outrigger State); Performed with Engine off

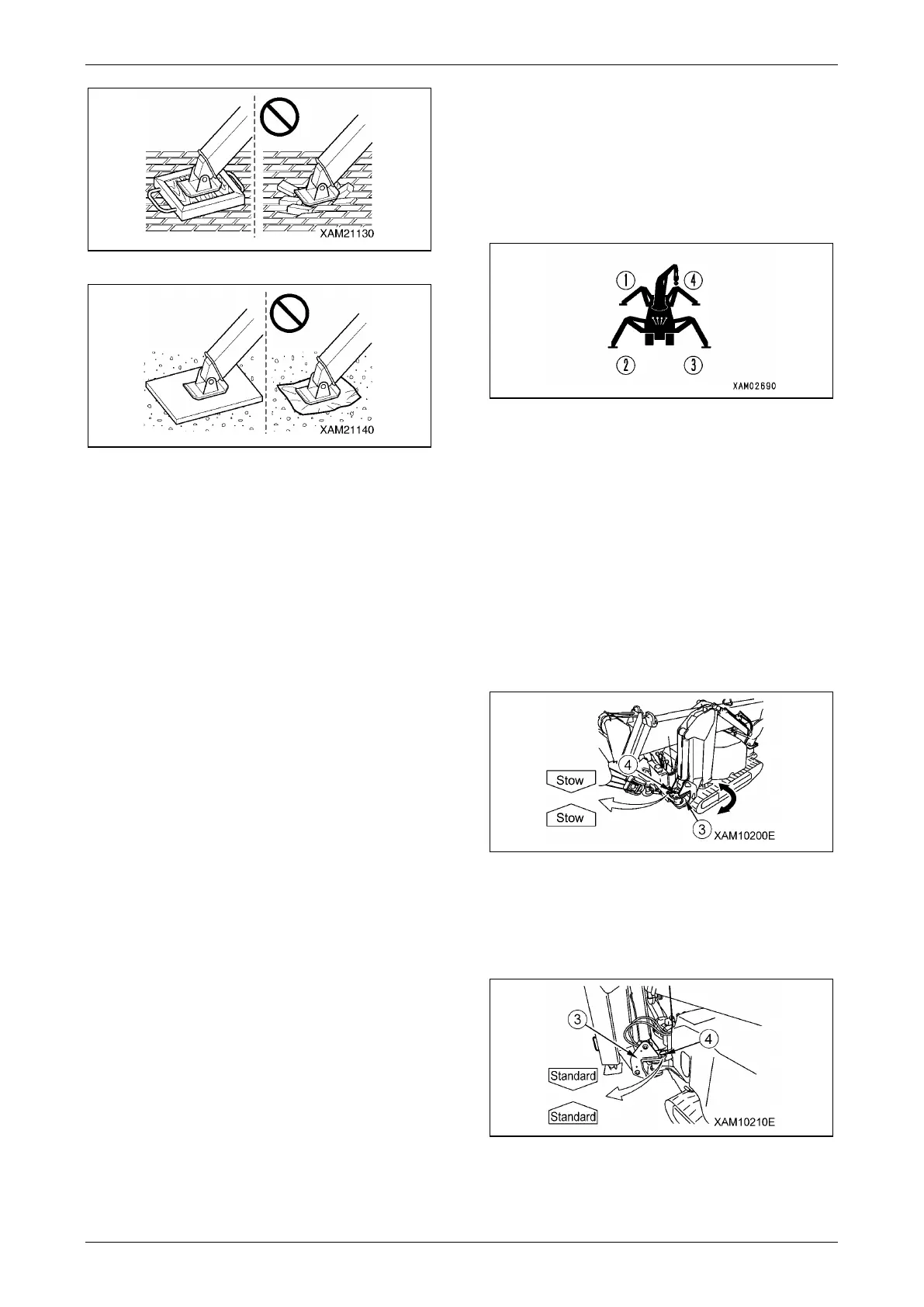

M A E D A Mini-Crawler Crane Section 4 – OUTRIGGER SETTING
1/2019 MC285C-3 4-39
Fig. 4-104
Fig. 4-105
• Verify in advance the strength of the
surface that will support the outriggers.
Structural surfaces such as construction
sites or concrete floors must have
sufficient strength to support the machine
during operation.
• Verify the condition of the terrain before
placing the outriggers. Outriggers can be
placed at various heights according to the
terrain; however, the outriggers cannot be
placed in the maximum extended position.
See “RATED TOTAL LOAD CHARTS” on
page 3-13 and refer to “"MAX" Outrigger
Position” on page 4-43 for additional
information.
WARNING! Crush Hazard. Always keep
people away from the machine when placing
the outriggers. Do not allow people around
the working area until the outriggers are
placed.
Setting Outriggers (Normal
Outrigger State)
This machine has four outriggers. The method
for setting up outrigger #3 is described below (3).
The same applies to the other three outriggers
as well.
Fig. 4-106
Performed with Engine Off
WARNING! When placing the outriggers to
maximum, the holes of the rotary where you
insert the position pins are different for
outriggers 1 and 2 than that of 3 and 4. Read
this section carefully to place the outriggers
properly. In this section, steps to place the
outriggers to the maximum are presented.
1. Pull out position pin (4) of rotary (3) and
rotate the rotary outward.
Fig. 4-107
2. Turn the rotary (3) so that the seal
“Standard” affixed to its side and the seal
“Standard” affixed to the side of frame are
aligned.
Fig. 4-108
