Section 5 – PERIODIC MAINTENANCE
Mini-Crawler Crane M A E D A
5-40 1/2019 MC285C-3
NOTICE: Wait for about 10 minutes before doing
so because, plenty of oil will come out if it is done
immediately after stopping the engine.
11. Clean the filter base and reinstall new filter
cartridge (3) after coating its packing and
threaded portion with clean engine oil (or
lightly with grease).
NOTICE: When reinstalling the filter cartridge,
tighten it one-half to three quarters of a turn after
the packing surface touches the sealing surface of
filter base. Be sure to do it manually.
12. After replacing the filter cartridge, feed engine
oil through filler port (F) to the specified level.
13. Pull the oil level gauge (G) out and wipe the
oil with a disposable cloth.
14. Insert the oil level gauge into the filler port and
pull it out again.

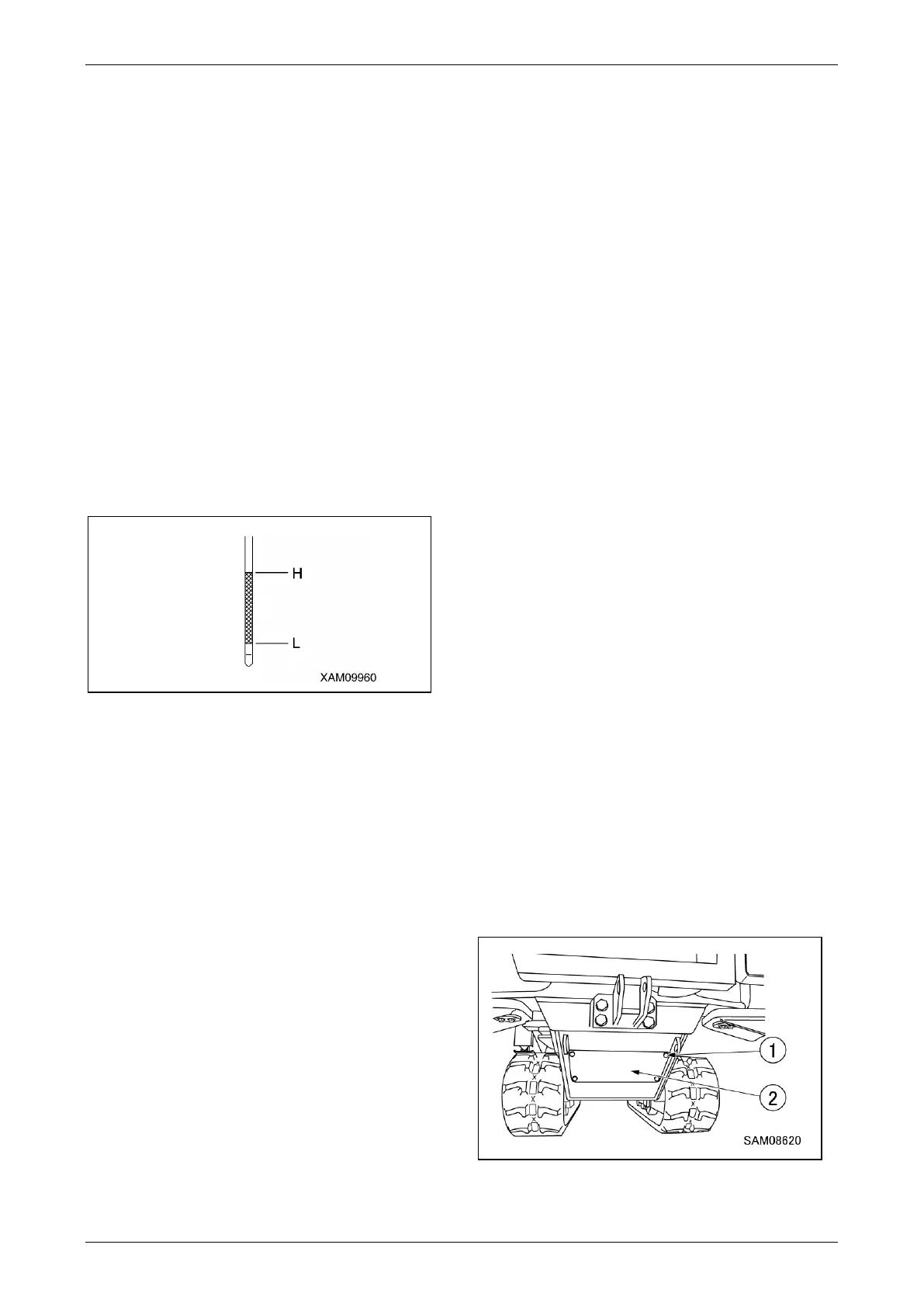

15. Make sure that the oil level is between the
markings “H” and “L” on the oil level gauge.
Fig. 5-66
16. Securely install the oil level gauge and filler
cap after changing the oil.
17. Run the engine at idling speed for a while and
stop engine.
18. Check that the oil level is between the
markings “H” and “L” on the oil level gauge.
19. See “Installing Machinery Cover” on page
5-14 and install the machinery cover.
Replace Engine Oil Filter Cartridge
WARNING! Perform this operation together
with the replacement of engine oil.
WARNING! The drain plug of the engine oil
pan is mounted at the cover under the control
lever. When draining engine oil, use
outriggers to raise the machine approximately
80 mm. Always place timbers beneath right
and left crawlers and ground for safety.
WARNING! Securely tighten the oil level
gauge after checking/refilling the oil.
If the oil level gauge falls during the operation,
the hot oil may spout out of the pan, causing
burns.
WARNING! Various parts are at elevated
temperatures immediately after engine
operation.
Do not proceed with oil or filter cartridge
replacement immediately but wait for the
engine to cool to the extent that you can touch
it with your hand.
CAUTION: Make sure that old packing is not
stuck to filter base. If it is, it can cause oil
leakage.
CAUTION: See “LUBRICATING OIL” on page
5-10 for the oil to be used.
Using oil other than those specified may
shorten the life of the engine. Be sure to refill
the specified oil.
CAUTION: Keep the engine oil at an
appropriate level.
CAUTION: When the engine is cold, oil cannot
be drained completely.
Drain the oil in a condition in which the engine
cools down to the extent that it is touchable by
hands.
CAUTION: Be careful not to let any foreign
substance go into the filler opening when
refilling the oil.
• Oil drain pan: Prepare a container of at least 3 L.
• Volume of oil actually to be replaced in the oil
pan: 1.85 L
1. Place the machine on a level surface.
2. See “OUTRIGGER SETTING” on page 4-38
to set outriggers and raise the machine about
80 mm above the ground.
3. Remove the bolt (1) at 4 places and remove
the cover (2).
Fig. 5-67
To Next Page
