M A E D A Mini-Crawler Crane Section 4 – MONITOR
1/2019 MC285C-3 4-17
56BWarning Display
CAUTION: If the warning monitor illuminates in red, immediately stop work and stop the
engine, or set it to low idle. Then, immediately inspect the applicable part and take action for
it.
If a fault occurs in the machine, the warning display on the monitor illuminates in red, and an alarm buzzer
sounds at the same time.

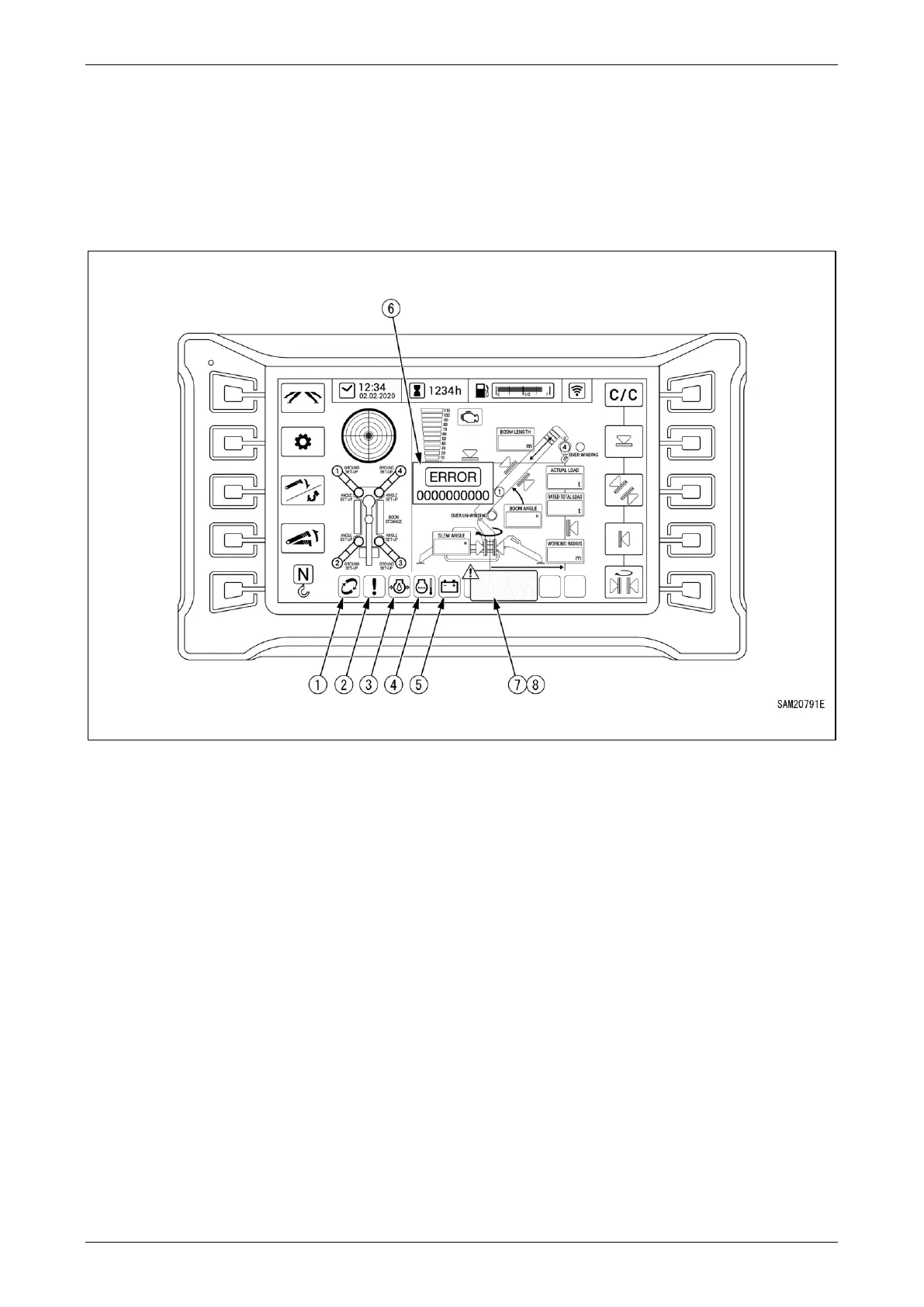

Fig. 4-40
1 - Consumables Display
2 - Abnormality Display (abnormality detected)
3 - Engine Oil Pressure Abnormality
4 - Engine Coolant Temperature Abnormality
5 - Charge Capacity Abnormality
6 - Error Code Display
7 - Slew Position Abnormality
8 - Slew Detection Abnormality
If warning and/or error code is displayed, check the warning content and error content.
If an error code is displayed, see “Error Codes” on page 5-93 and correct the problem.
