When Boom Stowage Position is inside
Operation Prohibited Zone
In this case, the boom can slew even inside the
operation prohibited zone only when all of the
following conditions are met:
• No load
• Boom fully retracted
• Boom angle of at least 50 degrees
The boom can be lowered to an angle at or
below 50 degrees only when the slewing angle is
within the 340-degree to 20-degree range.

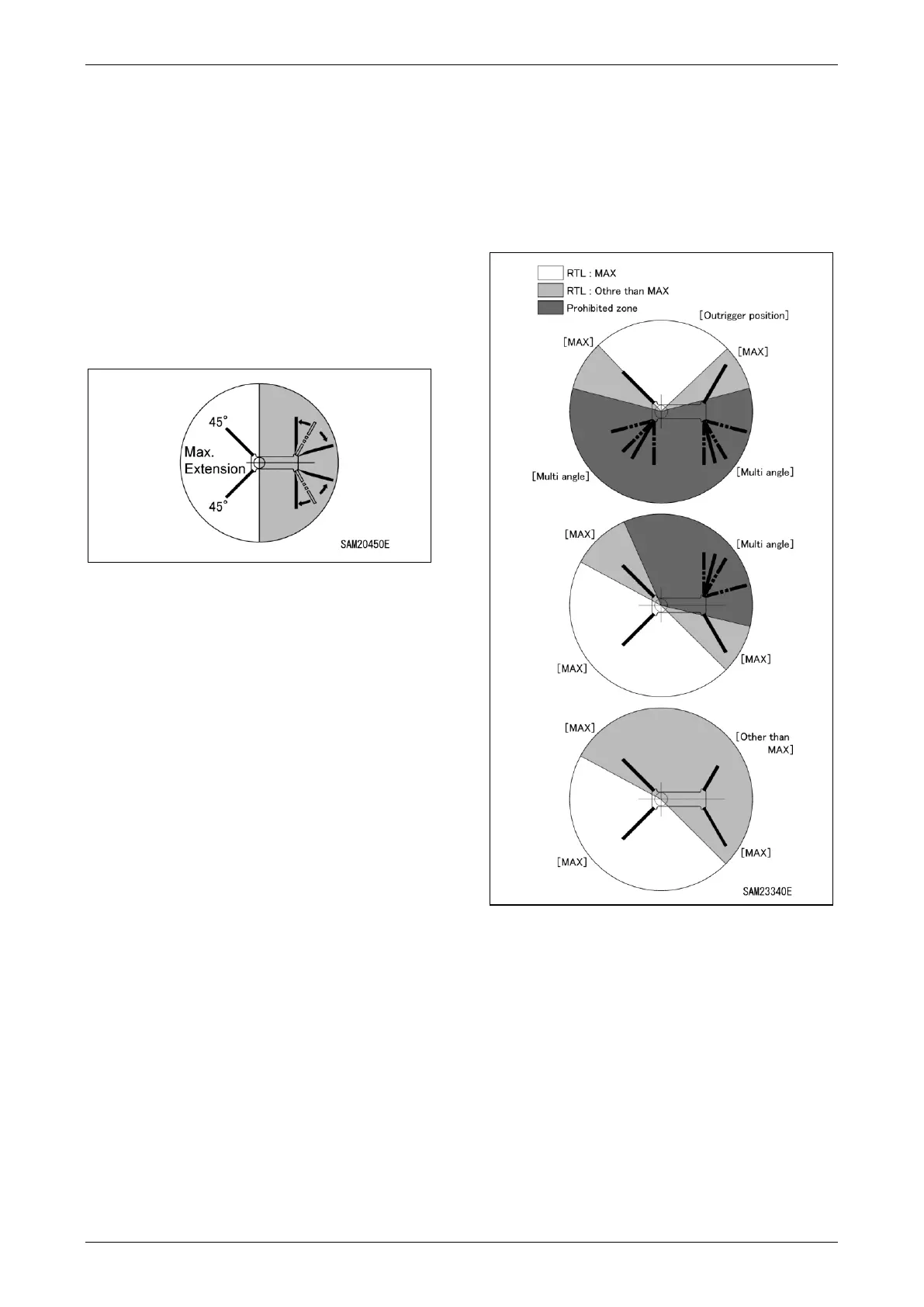

Fig. 4-130
Reading Rated Total Load Table Using
Outrigger Setup Angle
NOTICE: Refer to the figure below for an
example. For use in conditions like this, the
monitor display switches to “M: Multi Outrigger
State.”
Fig. 4-131
