Maeda MC285C-3 - HOISTING

Section 4 – HOISTING Mini-Crawler Crane M A E D A
4-142 1/2019 MC285C-3
HOISTING
NOTICE: Operators must comply with all local
laws and regulations and must be qualified to
perform crane operations.
• Hoisting methods vary depending on the
attachments and options mounted. Contact us
or our sales service agency for additional
information on hoisting methods.
• The machine must be in travelling position when
hoisting. The centre of gravity of the machine is
optimum while in the travelling position. See
“TRAVELLING POSITION” on page 4-24.

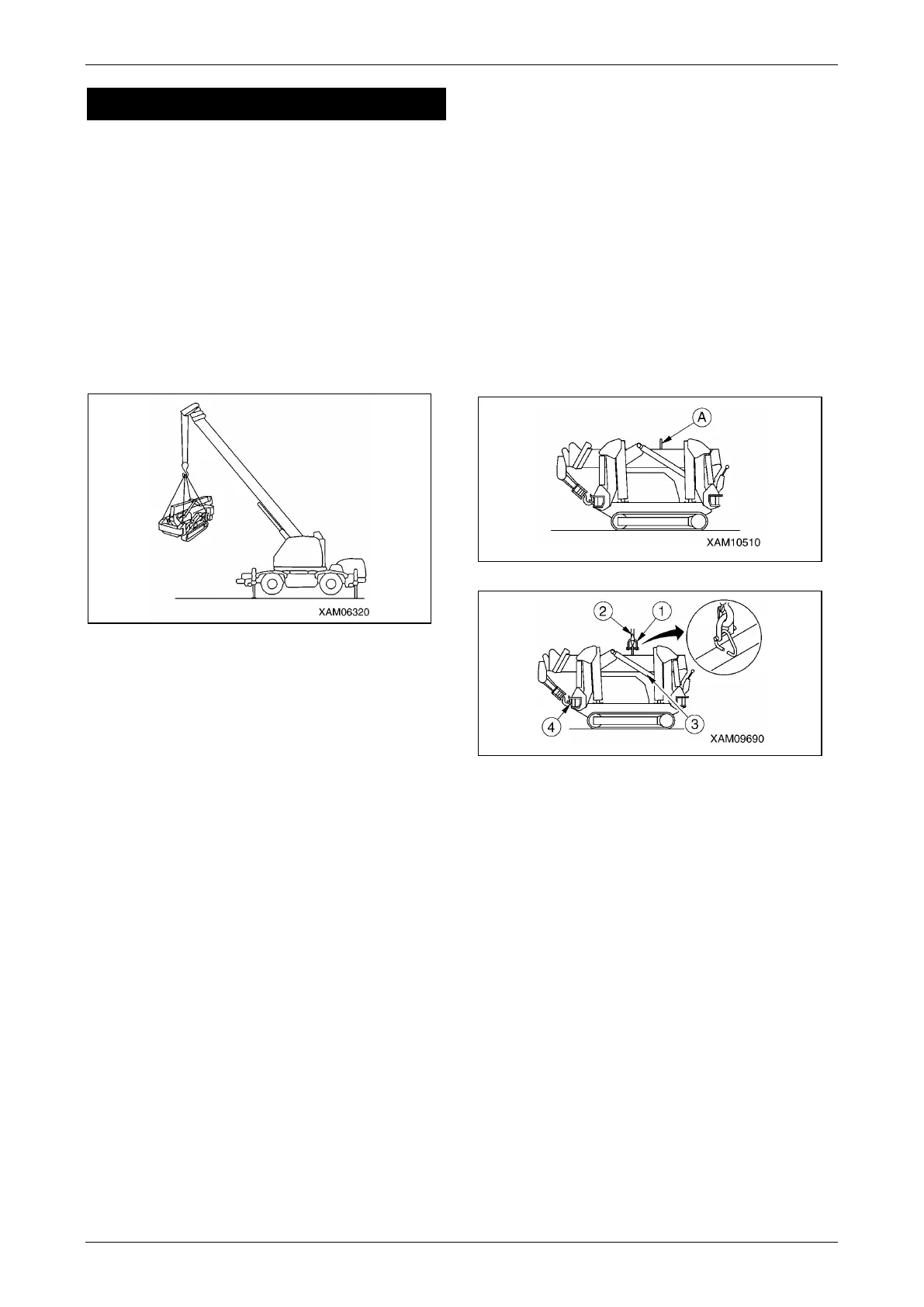

Fig. 4-381
• Hoisting attachments, such as wire rope and
shackles, used in hoisting must be rated for the
total weight of this machine.
• Do not use the loops on the top of the boom to
hoist or support the machine.
When hoisting, take into account variations in
weight such as when optional equipment is
installed.
See the nameplate attached to the machine for
weight specifications. The total machine weight is
for a standard machine configuration, 1990 kg.
The total machine weight for a machine equipped
with the optional electric motor is 2160 kg.
Recommended Hoisting
Attachments
• Shackle: BC or SC, nominal 14
Hoisting Procedure
NOTICE: Ensure the machine is on solid, flat
ground before hoisting.
Lift the machine on hard and level ground and in
the following procedure:
1. Let the machine assume Travel Position as
shown below.
2. Either engage hook (2) to (A) on the boom or
use the special hanger (1) to engage the
hook to it.
NOTICE: Position A on the boom represents the
centre of gravity.
Fig. 4-382
Fig. 4-383
3. Immediately after the machine is lifted off
ground, wait for the machine to be stable
before continuing to lift slowly.
4. When lifted, make sure that there is no
change in machine position due to leakage in
hydraulic circuit on the head end of derrick
cylinder (3), or there is no play at the hook
hanger (4).
