Section 4 – MONITOR Mini-Crawler Crane M A E D A
4-12 1/2019 MC285C-3
Time Display
Displays the time set.
24BHour Meter Display
Displays cumulative hours of operation.

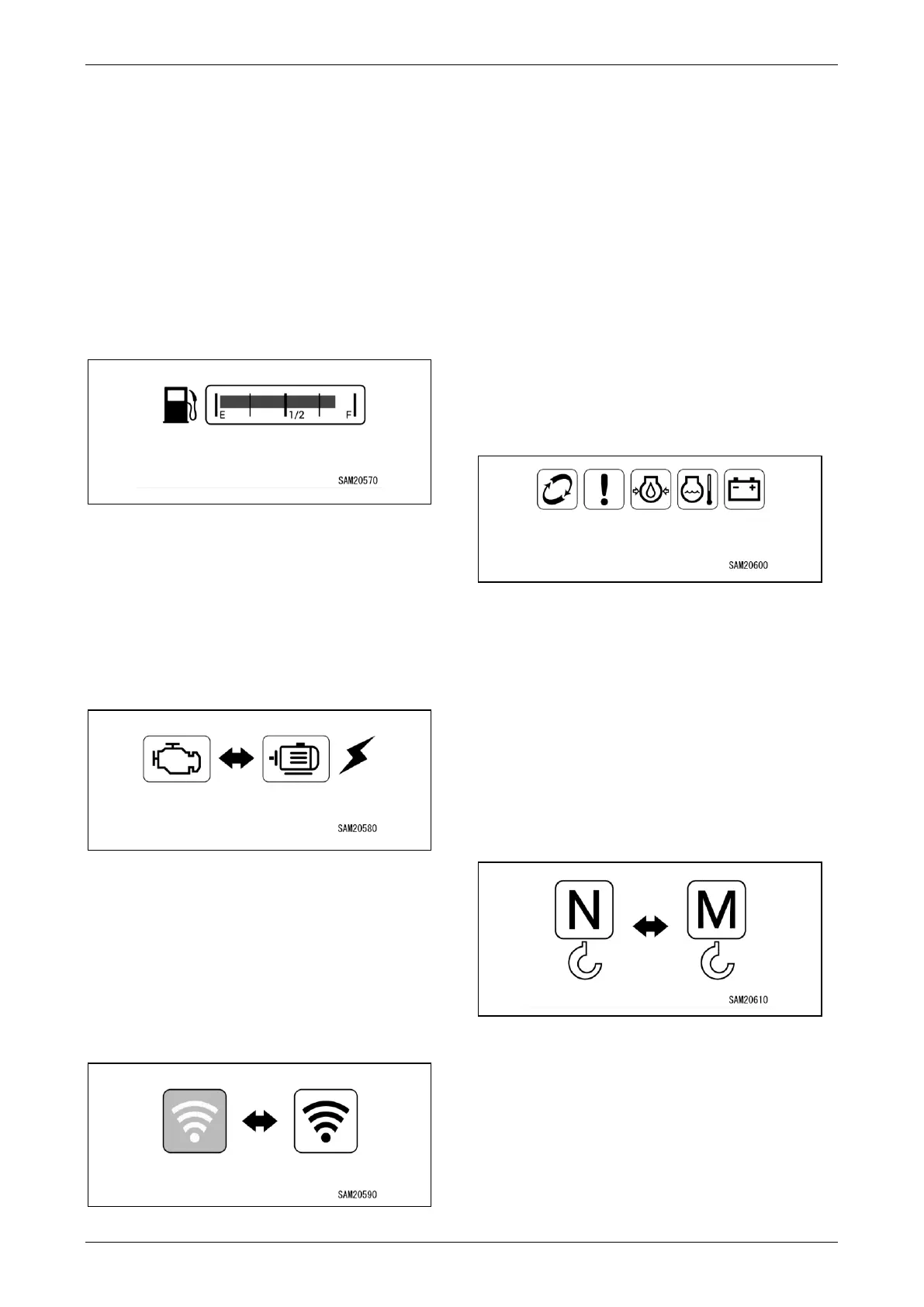

BFuel Gauge
Displays fuel tank fuel level.
Refill with fuel when the meter approaches the “E”
mark.
Fig. 4-21
26BEngine/Electric Motor Drive Display
Displays the current power source for the
machine.
• Engine: The machine is driven by the engine.
• Electric motor: The machine is driven by the
electric motor.
Fig. 4-22
27BRemote Control System Connection
Display
Displays the current remote control system
connection status.
• On: The remote control system is connected.
• Off: The remote control system is not
connected.
Fig. 4-23
28BOutrigger Status Display
Displays the current outrigger status.
For more information on display content, see
“OUTRIGGER INDICATORS” on page 4-33.
29BMoment Limiter Status Display
Displays the current moment limiter status.
For more information on display content, see
“Moment Limiter Display” on 4-70.
30BWarning Display
Displays illuminated warnings.
For more information on the display content, see
“Warning Display” on page 4-17.
Fig. 4-24
Normal/Multi Outrigger State Display
The display changes automatically to indicate the
current outrigger extension status.
・N lit: Normal Outrigger State
・M lit: Multi Outrigger State
・M blinking: Multi Mode failed
The crane cannot be used in this state. See
“Setting Outriggers (Multi Outrigger State)” on
page 4-42 and redeploy the outriggers.
Fig. 4-25
