Maintenance Every 50 Hours
Drain Contaminant Water / Deposits in
Fuel Tank
WARNING! Be extremely careful with fire
such as cigarettes.
WARNING! Always stop the engine before
draining fuel.
Potential ignition may occur through spilled
fuel if disregarded.
WARNING! Always put in the fuel tank drain
plug and secure it after draining fuel.
WARNING! The fuel tank drain plug is
mounted directly below the machine.
To drain fuel, use outriggers to raise the
rubber track about 80 mm, allowing access
under the machine.
If the machine is unstable and sways, place
supports (stands) under the front and rear
sides of the machine to stabilise it.
• Fuel drain pan: Prepare a container according to
the remaining amount of fuel (12 L at the
maximum).
1. Place the machine on a level surface.
2. See “OUTRIGGER SETTING” on page 4-38
to set outriggers and raise the machine about
80 mm above the ground.
3. Place a container to collect the drained fuel
directly underneath the drain plug (P) of the
fuel tank.

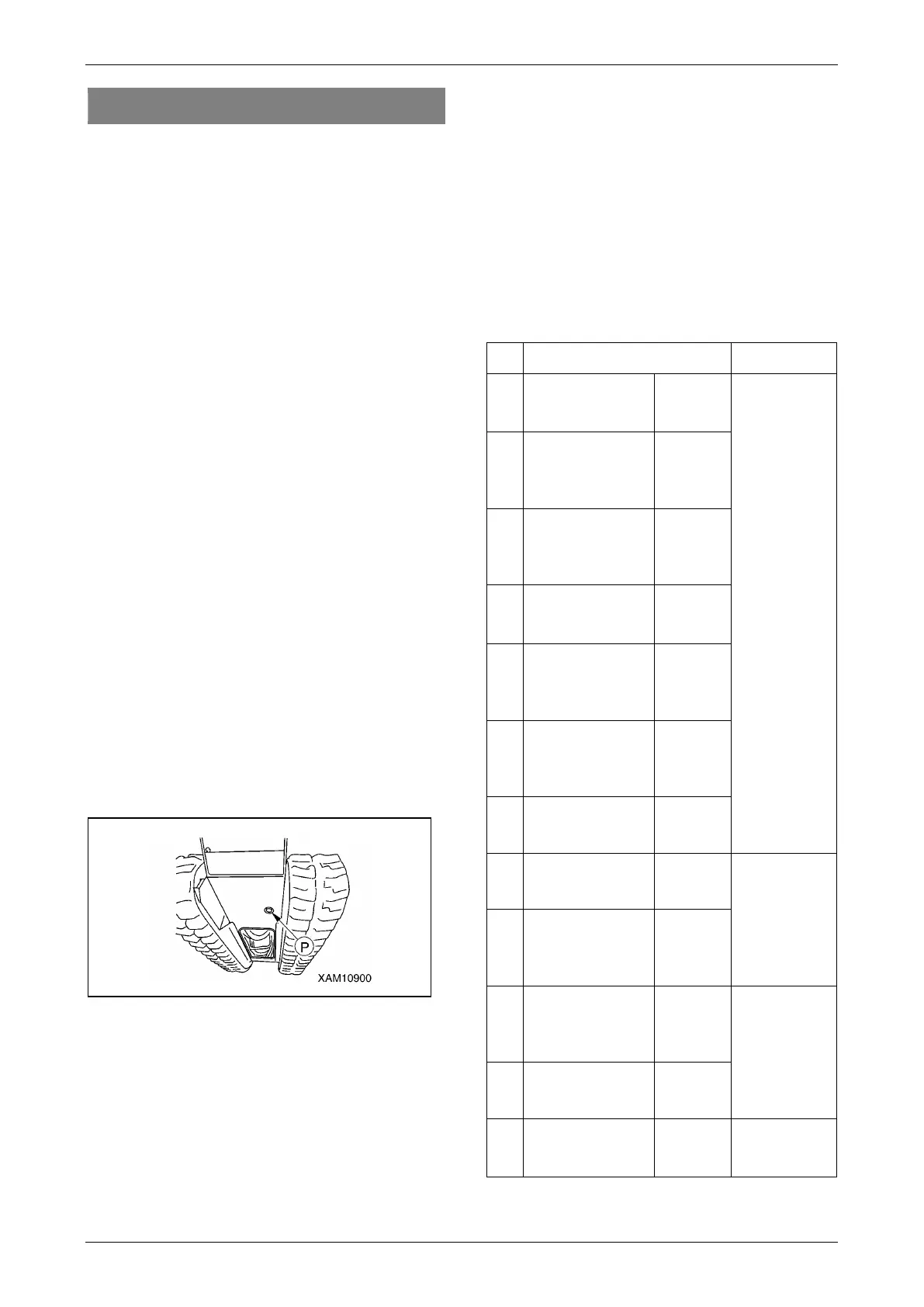

Fig. 5-54
4. Turn the drain plug slowly to avoid splashing
fuel on yourself, and drain fuel.
NOTE: Remove the fuel tank cap if normal or
smooth fuel draining fails.
5. After draining the fuel, install and tighten the
drain plug securely.
6. See "OUTRIGGER STOWING" on page 4-48
to stow the outriggers.
Grease Machine Units
Caution: Grease type varies with greasing
points. Failure to grease properly may cause
the machine to shorten its useful life.
Caution: Greasing a new machine is required
once every 10 hours until the machine attains
the first 100 hours of operation that initial fit
emerges.
• Use proper grease specified below according to
the greasing points.
No.
Greasing point
Grease type
1
Greasing of the
boom mounting
pin
1 place
Lithium
grease
2
Greasing of the
derrick cylinder
bottom
mounting pin
1 place
3
Greasing of the
derrick cylinder
rod side
mounting pin
1 place
4
Greasing of the
outrigger rotary
shaft
4 places
5
Greasing of the
outrigger
cylinder bottom
mounting pin
4 places
6
Greasing of the
outrigger
cylinder rod
mounting pin
4 places
7
Greasing of the
slewing gear
2 places
8
Greasing of the
boom slide plate
8 places
Molybdenum
grease
9
Greasing of both
sides and
underside of the
boom
Each
boom
10
Greasing of the
boom extending
and retracting
wire ropes
4 places
Rope oil
11
Greasing of the
winch wire rope
1 piece
12
Greasing of the
outrigger top
box pin
4 places
Lithium
grease
