Receiver Components

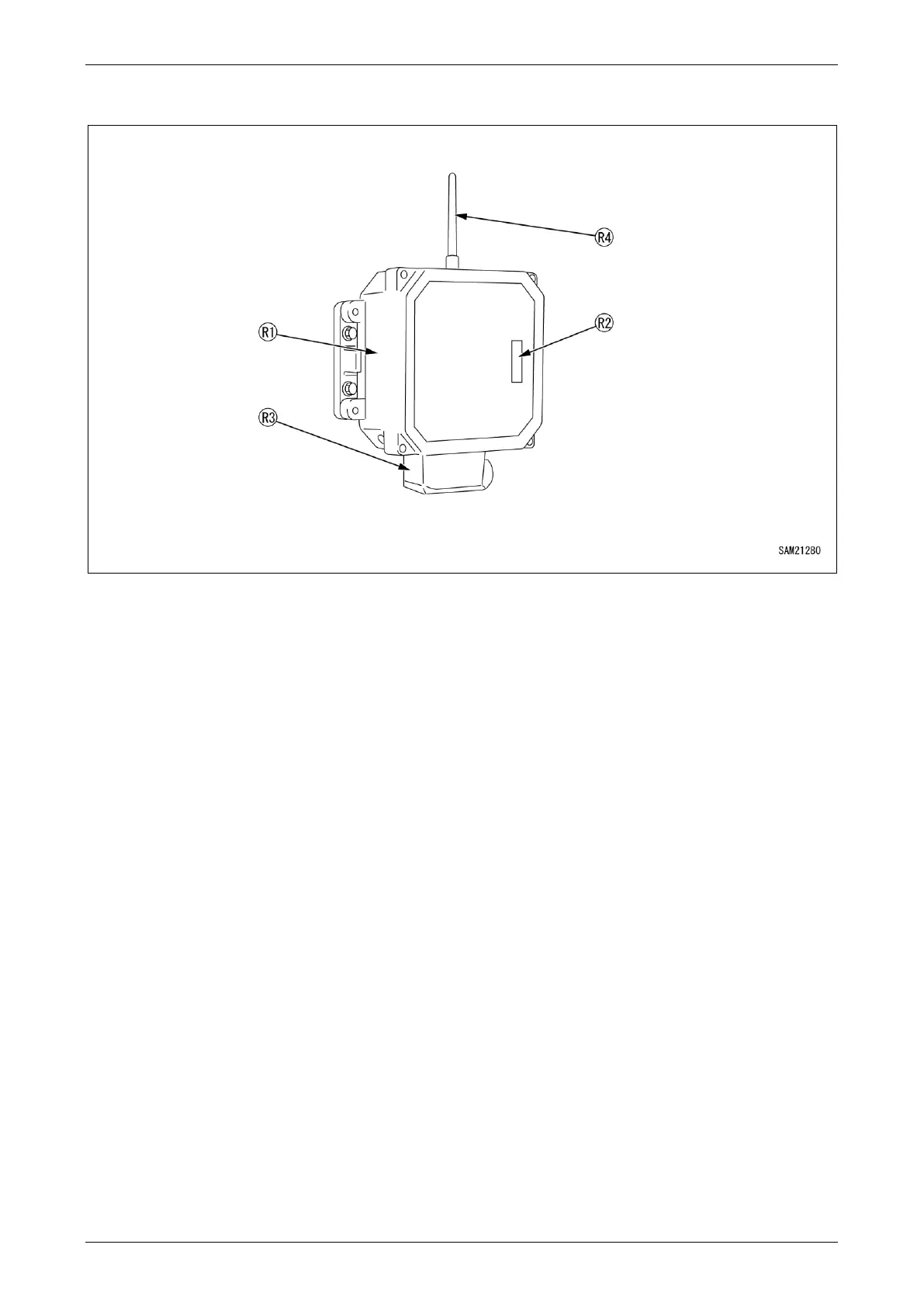

Fig. 4-241
R1 - Control Box
R2 - Monitor LED
R3 - Connector Connection Port
R4 - Antenna
Control Box
The control box contains the receiver and control
devices. Do not dismantle the control box.
