AUXILIARY WINCH COMPONENTS (OPTION)

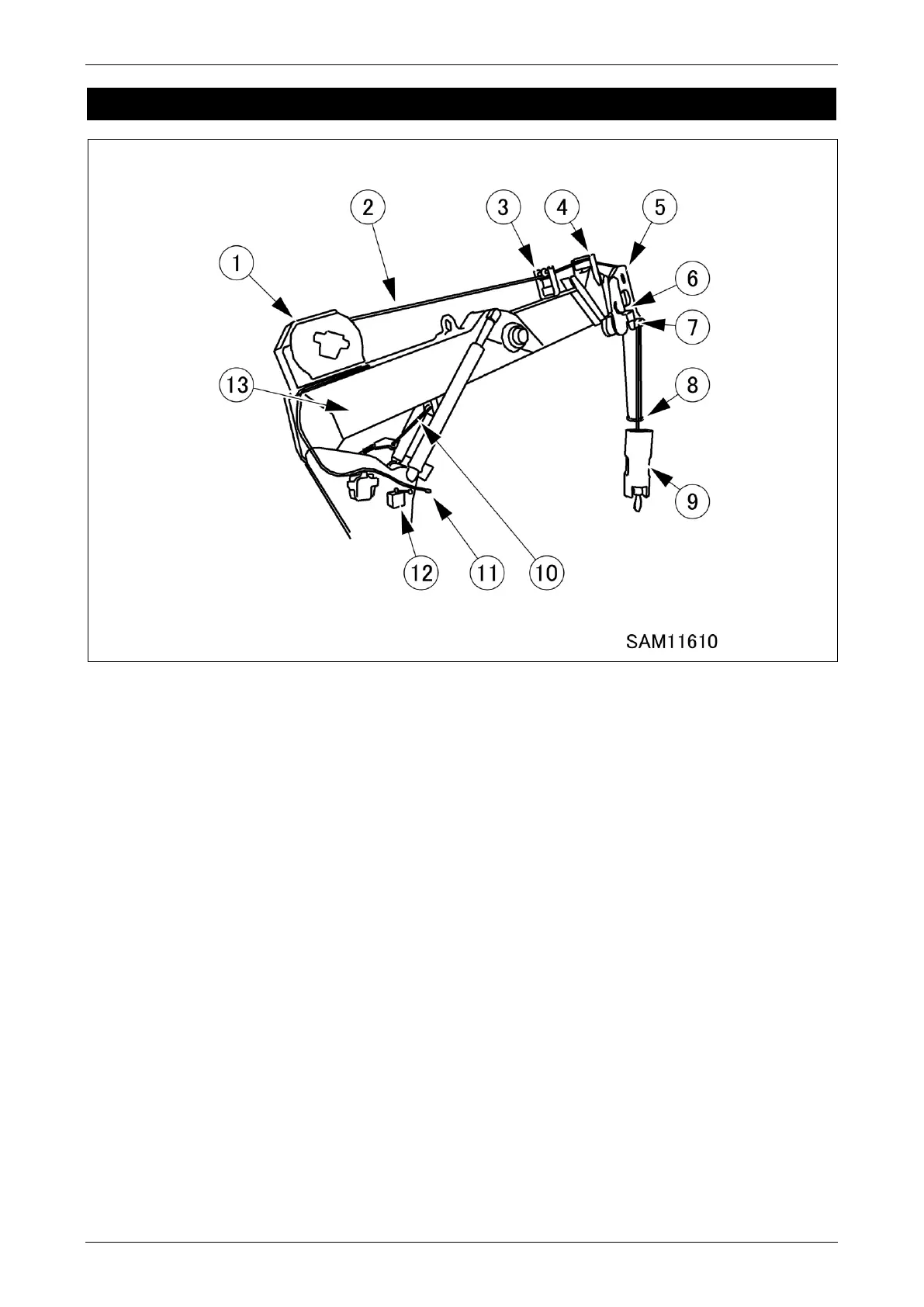

Fig.4-353
1 - Winch Unit (Auxiliary Winch)
2 - Wire Rope (Auxiliary Winch)
3 - Snap Sheave Bracket
4 - Idler Bracket
5 - Boom Head
6 - Bullet Connector
7 - Over Winding Detector (Auxiliary Winch)
8 - Protect Weight (Auxiliary Winch)
9 - Single Fall Hook Block
10 - Rubber Rope for Stowage
11 - Hoist Down Stop Harness
12 - Winch Select Valve
13 - Boom
