Section 5 – AUXILIARY WINCH INSPECTION AND MAINTENANCE
Mini-Crawler Crane M A E D A
5-82 1/2019 MC285C-3

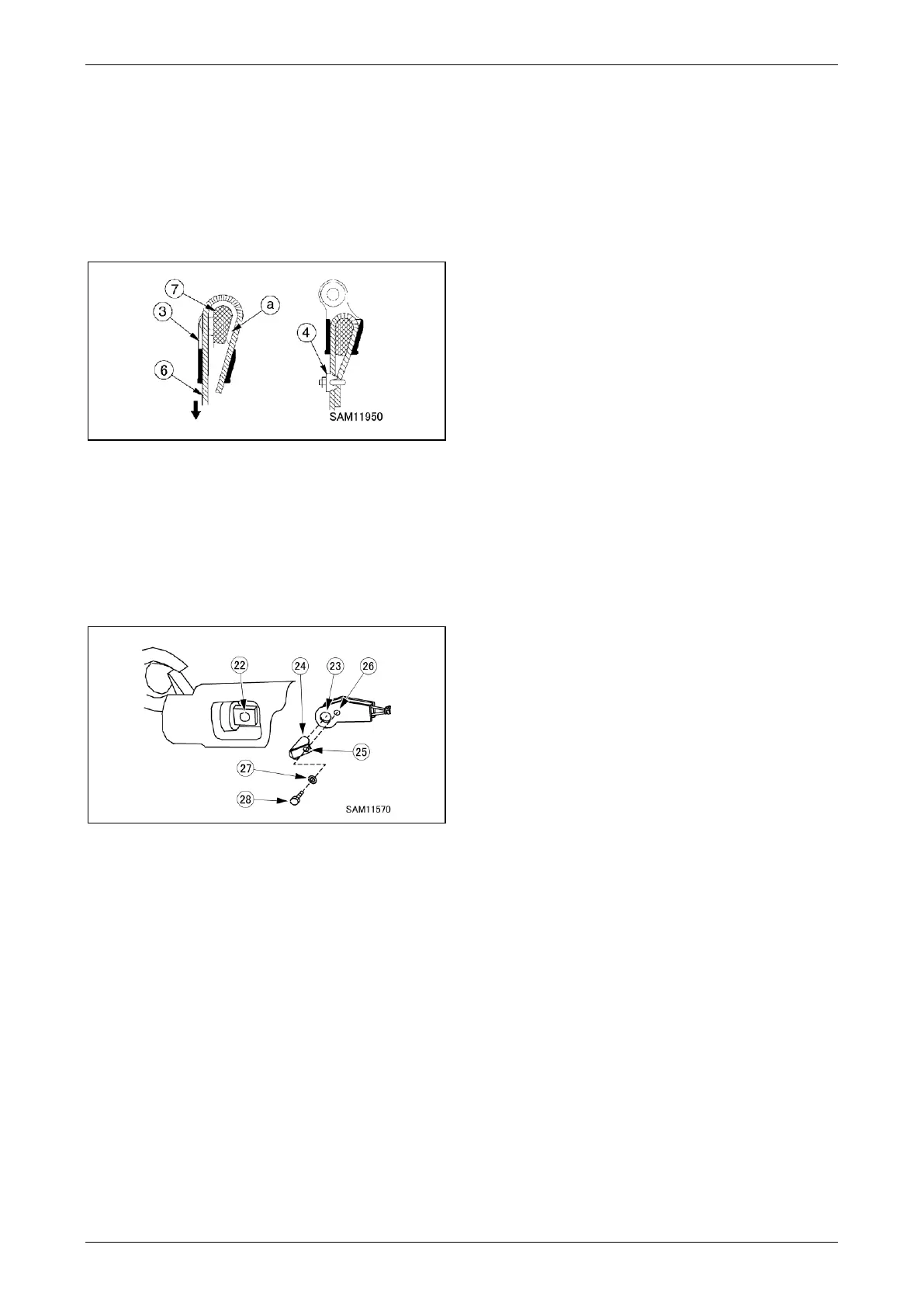

4. Secure the end of the wire rope (6) to the
wedge socket (3) using the procedure
provided below.
a. Draw the wire rope through the wedge
socket as shown in the diagram.
b. With the rope wedge in position, pull the
wire rope in the direction indicated by the
arrow.
Fig. 5-172
5. Attach the rope clip (4) to the wire rope (6).
6. Insert to hook to align holes of connection
base (22) and wedge socket (23).
Insert wedge socket pin (24) to the aligned
holes, and align hole of wedge socket pin (25)
and hole of wedge socket (26), then secure
with spring washer (27) and bolt (28).
Fig. 5-173
7. Place the boom lift lever in the RAISE
position (pull it toward you) or place the boom
telescoping lever in the EXTEND position
(pull it toward you) to raise the hook block.
Winch operation is allowed only after the
hook block is raised.
8. With the boom extended and raised fully,
place the winch lever in the DOWN position
(push it toward the front) to adjust the wire
rope until three to four turns of wire are left in
the winch drum.
NOTICE: Do not let hook block to touch the
ground.
9. With the wire rope held under tension, place
the winch lever in the UP position (pull it
toward you) to wind up the wire rope in the
winch drum.
