MLC650 SERVICE/MAINTENANCE MANUAL HOISTS
5
55

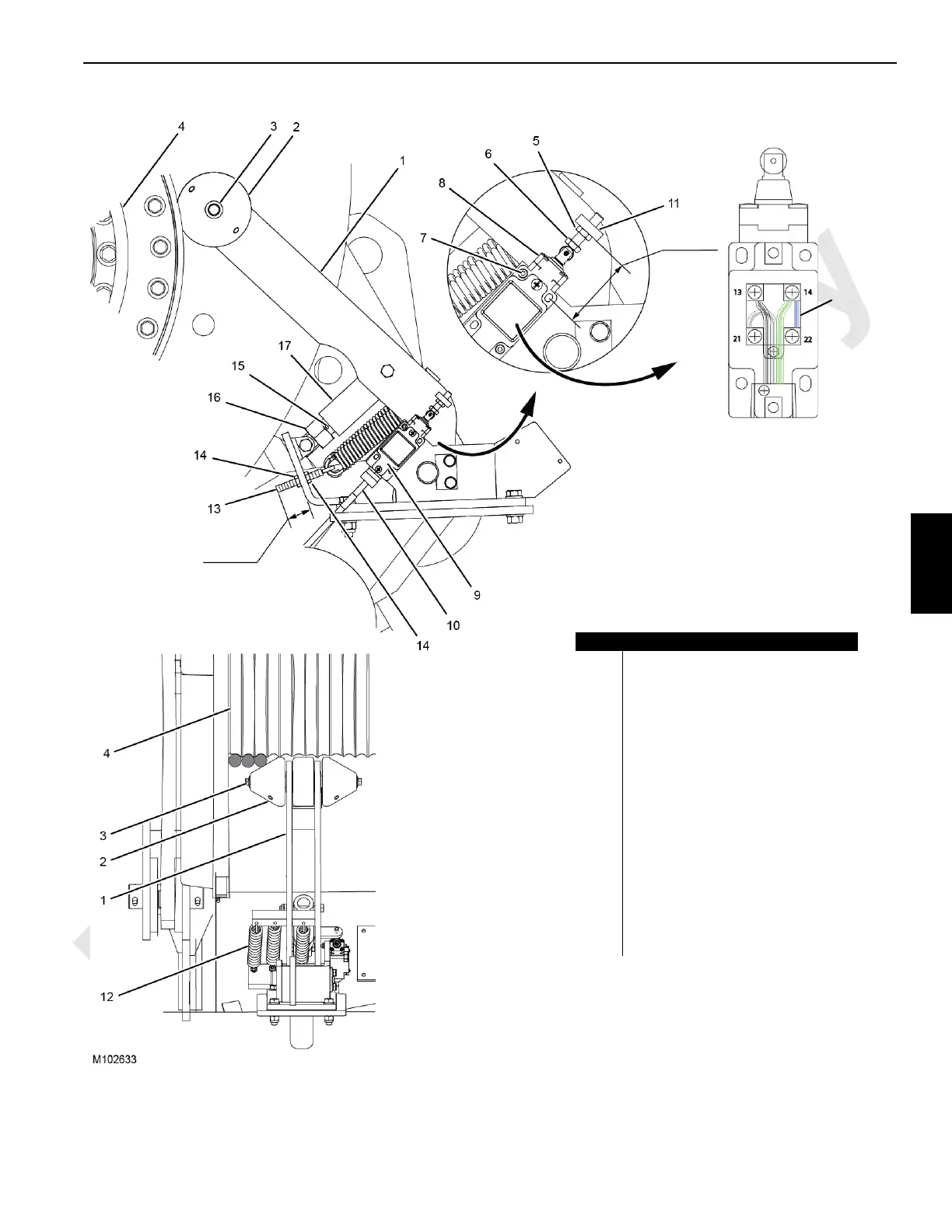

FIGURE 5-1
Item Description
1Lever
2Roller
3 Capscrew
4Drum
5Jam Nut
6 Adjusting Screw
7 Screw (qty 4)
8 Limit Switch
9 Limit Switch Cover
10
Cable R
estraint Connector
11 Mounting Tab
12 Return Spring (qty 3)
13 Eyebolt (qty 3)
14 Eyebolt Jam Nut (qty 6)
15 Cotter Pin
16 Nut
17 Nylon Tube
Three to Four Wraps
of Wire Rope
Remaining on Drum
View D
View B
View C
35 mm
44 mm
View A
Jumper
Wire
