MLC650 SERVICE/MAINTENANCE MANUAL UNDERCARRIAGE
8
8
Crawler/Carbody Pin Pullers Hydraulic

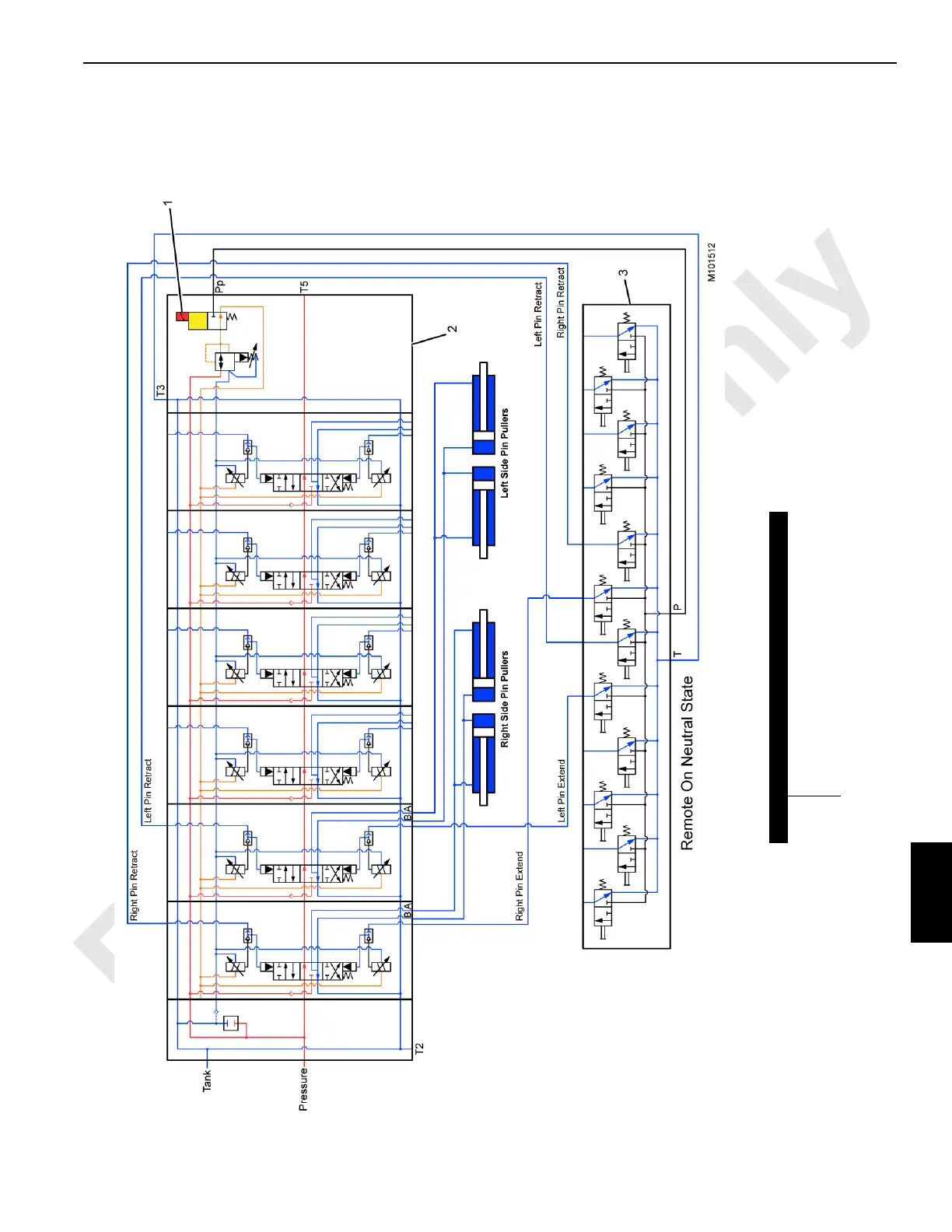

Schematic
The schematic is shown with the remote in the neutral state.
FIGURE 8-11
Item Description
1 Selector Solenoid Valve 2 Six-Section Lower Accessory Valve Assembly 3 Carbody Manual Control Manifold
