MAST ASSIST CYLINDERS
General
This part of Section 10 provides operational information and
electrical and hydraulic schematics for the live mast assist
cylinders.
Additional component information for this system can be
found in the following sections of the Service Manual:
• Section 2: Hydraulics
• Section 3: Electrical
The live mast assist cylinders are controlled by the following
methods:
• Setup remote control
• Mast assist arm switch (located on the right console
in the cab)
• Manual control lever (located on mast assist and self-
assembly cylinders valve assembly) (manual control is
only used for troubleshooting) (see Figure 10-21
)
See Figure 10-20
for an illustration of the mast assist
cylinders.
See Figure 10-22
for the hydraulic schematic of the mast
assist cylinders circuit.
See Figure 10-24
for the electrical schematic of the mast
assist cylinders circuit.

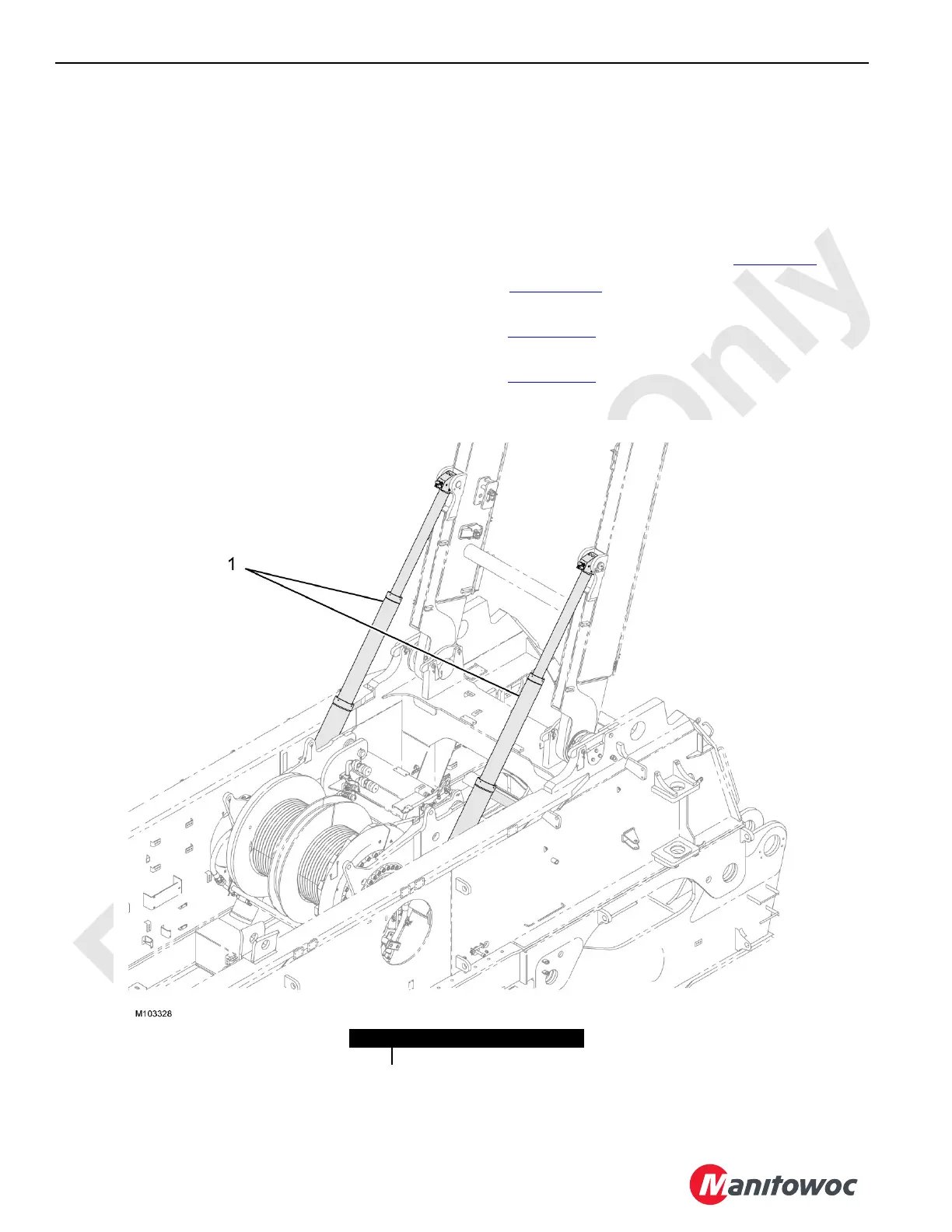

Item Description
1 Mast Assist Cylinders (qty 2)
FIGURE 10-20
To Next Page
