MLC650 SERVICE/MAINTENANCE MANUAL HYDRAULIC SYSTEM
2
2
Fixed Displacement Motors
The following motors (Figure 2-11) are bidirectional fixed
displacement motors.
• Swing Motor
• Variable Position Counterweight (VPC) Tray Motor
• VPC-MAX Trolley Actuator Motor

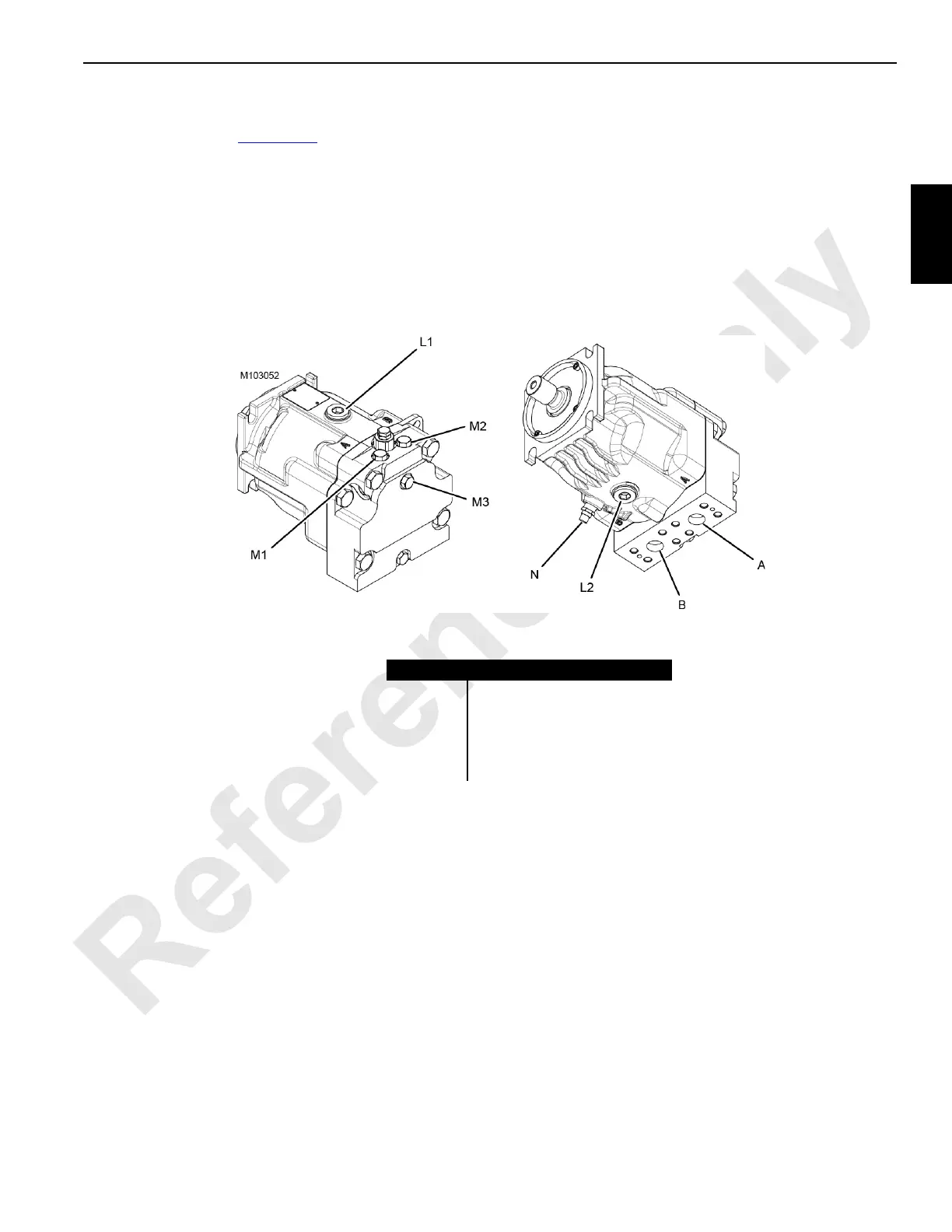

FIGURE 2-11
Item Description
A, B System Pressure Lines
L1, L2 Drain Ports
M1, M2 Gauge Ports—System Pressure
M3 Charge Flush Port
N Speed Sensor
