Manitowoc MLC650 - Drum 6 Hoisting Hydraulic Schematic

Reference Only
Manitowoc Published 09-09-16, Control # 229-09 5-45
MLC650 SERVICE/MAINTENANCE MANUAL HOISTS
5
55

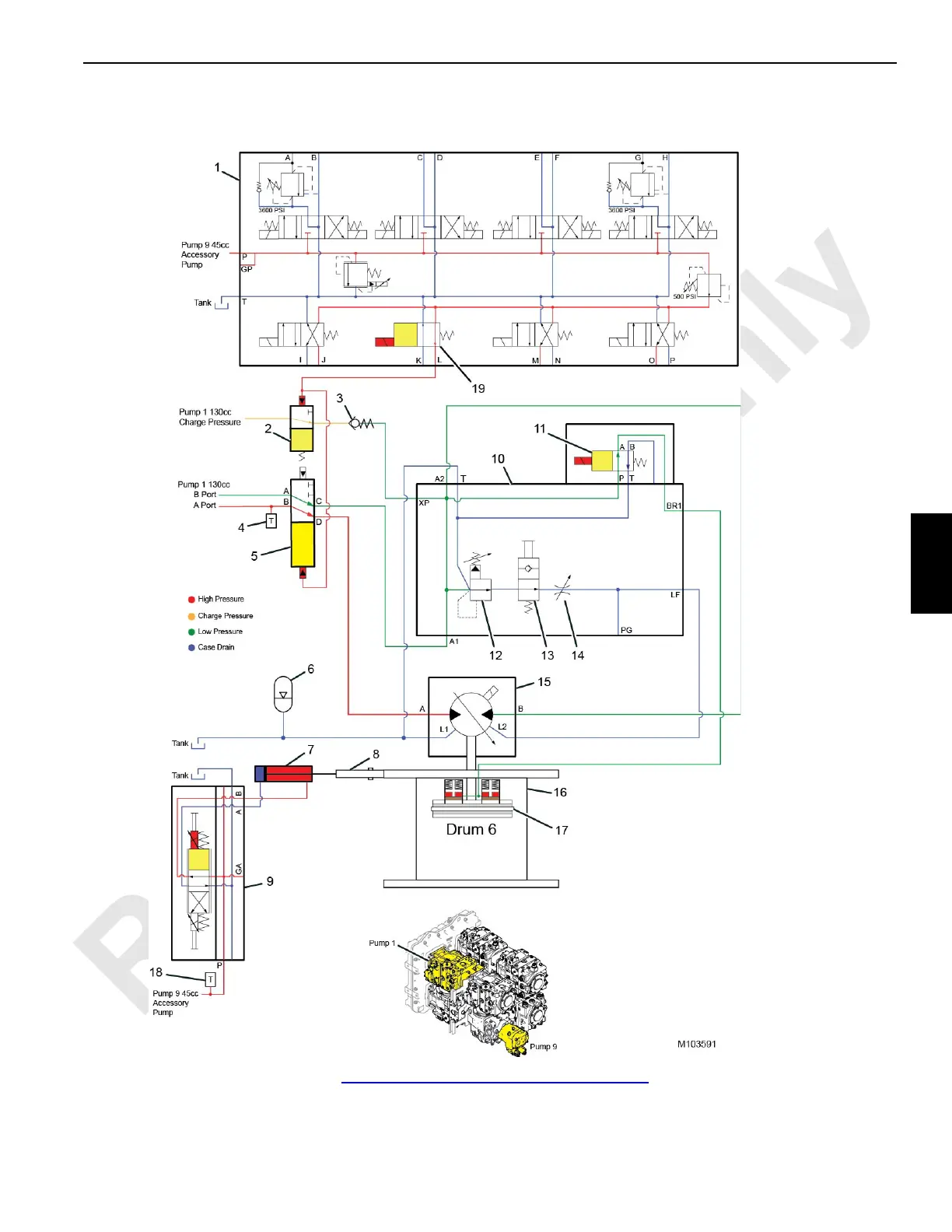

Drum 6 Hoisting Hydraulic Schematic
FIGURE 5-22
See Table 5-3.Legend for Figure 5-22 and Figure 5-23.
