HOISTS MLC650 SERVICE/MAINTENANCE MANUAL
5-44
Published 09-09-16, Control # 229-09

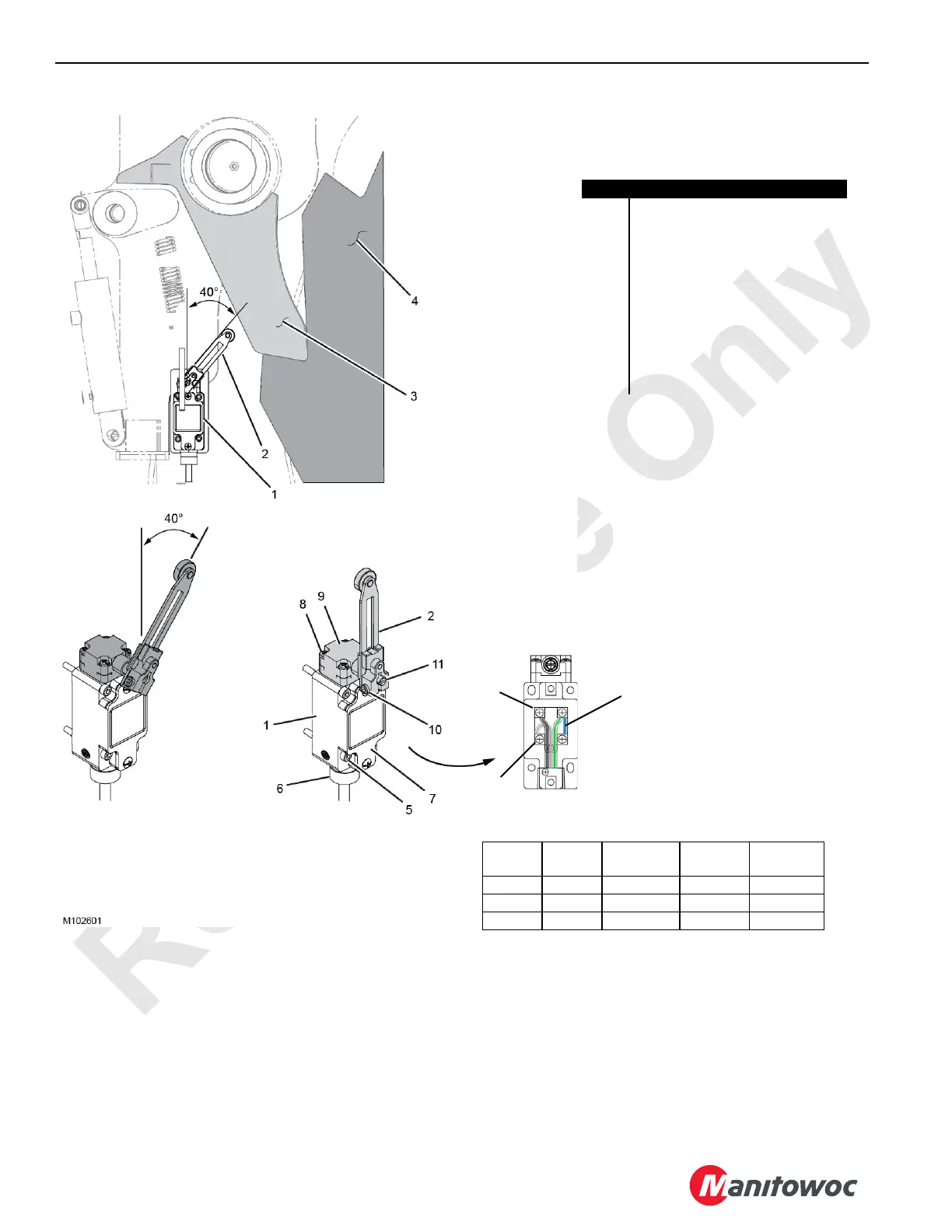

FIGURE 5-21
After Adjustment
View B
Before Adjustment
View A
CABLE
NAME
FROM
PLUG
TO
TERMINAL
WIRE
COLOR
SYSTEM
I.D.
W1 J1-21 J2-A WHITE N/C
W1 J1-13 J2-C BLACK N/O
W1 J1-14 J2-B GREEN INPUT
View C
Item Description
1 Limit Switch
2 Limit Switch Arm
3Drum Pawl
4Drum
5 Screw (qty 4)
6 Cable Restraint Connector
7 Limit Switch Cover
8 Screw (qty 4)
9 Limit Switch Head
10 Screw
11 Limit Switch Shaft
Jumper Wire
N/O
N/C
