VPC Counterweight Tray Operation
The VPC counterweight tray movement is controlled by the
following methods:
• On-board computer control
• Setup remote

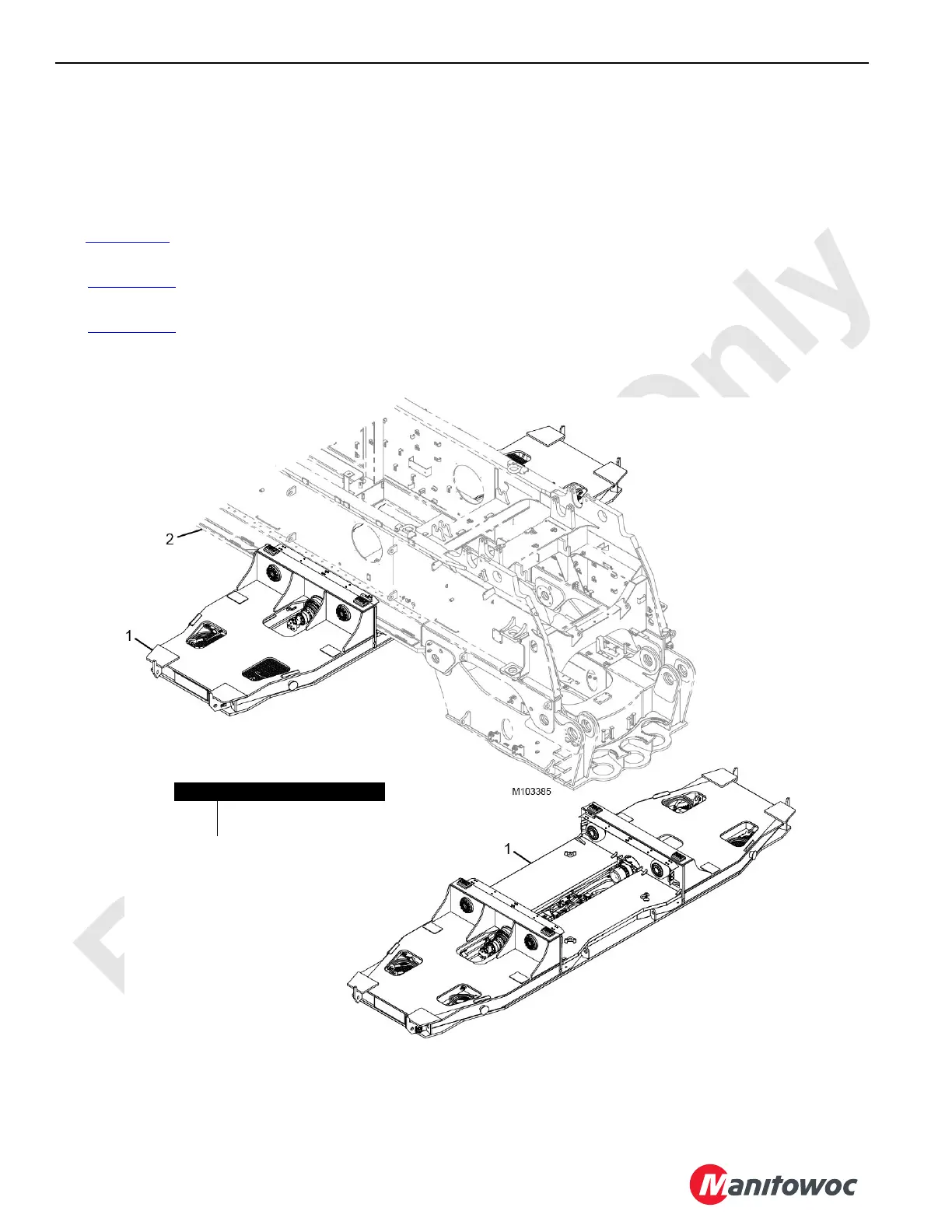

See Figure 10-33
for an illustration of the VPC counterweight
tray.
See Figure 10-34
for the hydraulic schematic of the VPC
counterweight tray motor circuit.
See Figure 10-35
for the electrical schematic of the VPC
counterweight tray motor circuit.
Setup Remote Overview
NOTE: The setup remote is covered in Section 4 of the
Operator Manual.
The setup remote control communicates with the CCM-10
control module using the controller area network bus (CAN
Bus). The crane control modules use the CAN Bus to
communicate with each other.
Item Description
1 VPC Counterweight Tray
2 Rotating Bed
FIGURE 10-33
